F Type Cable Assemblies

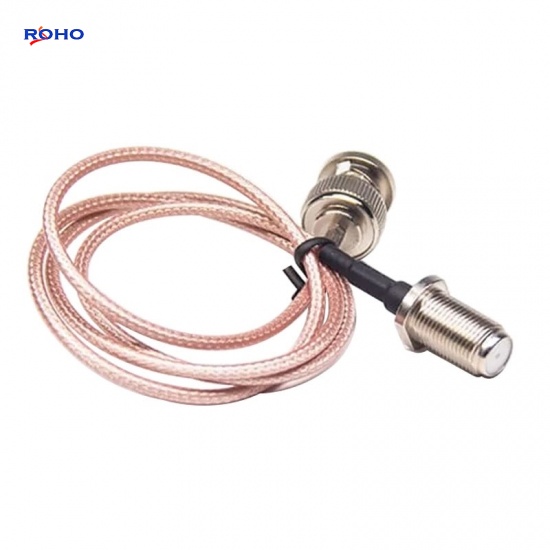

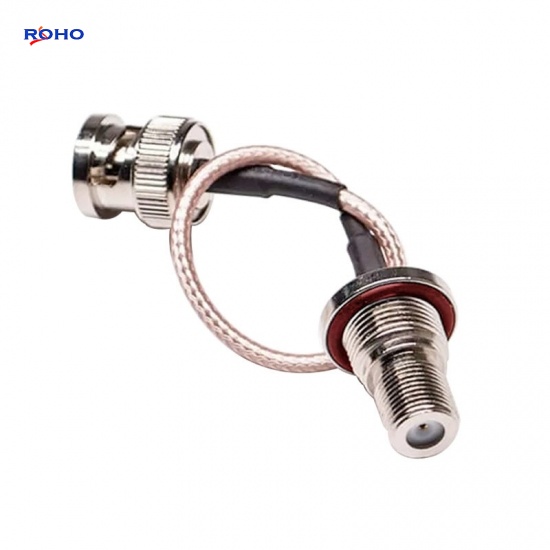

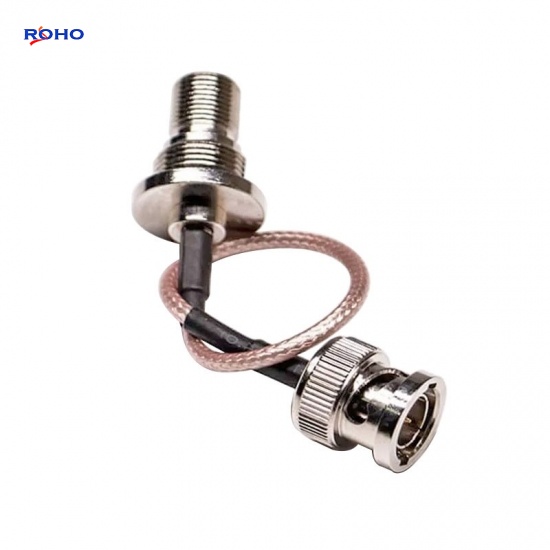

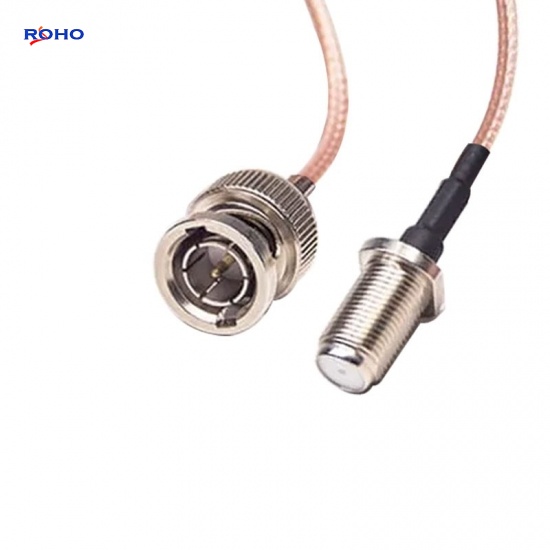

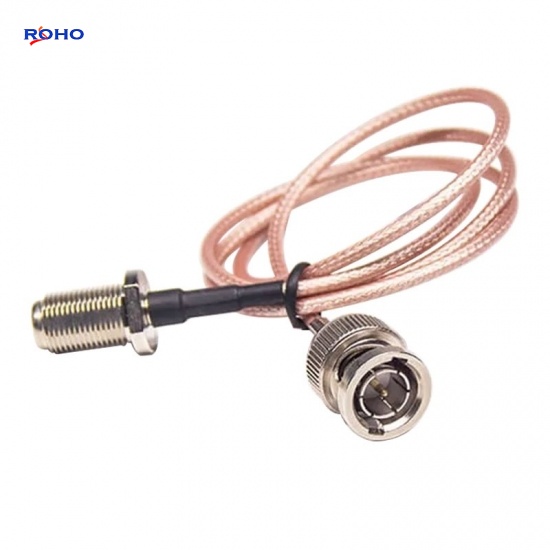

F Female to BNC Male Connector Cable Assembly with RG316 Cable

F Type Cable assembly Features:

  • Can be combined with BNC, SMB, F or N connector;
  • Body Can be bulkhead or standard mount connectors;
  • Body Can be right angle or straight connectors;
  • Cable Can use flexible cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

F Female to BNC Male Connector Cable Assembly with RG316 Cable



The Type F cable assembly can use flexible coaxial cable such as RG11, RG179, RG187, RG59, RG6 or RG6-CATV cable; the body of F to BNC cable assembly is right angle or straight connector which is female to female, female to male, male to female or male to male gender. This F male to BNC male cable assembly uses a 75ohm Straight type F for connector 1 and a 75ohm Straight BNC for connector 2, Cable is 75ohm flexible cable type RG316.



Specifications

ELECTRICAL DATA
Connector 1 Series F
Connector 1 Style Str Female
Cable Type RG316
Connector 2 Series BNC
Connector 2 Style Str Male
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50 or 75
Low PIM No
Max Frequency 3GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material Brass
Body Finish Nickel/Ternary alloy
Contact Material Phosphor Bronze/Beryllium Copper
Contact Finish Gold/Silver
Insulator Material PTFE



Applications

  • Radio Scanners
  • Antennas DAB Aerial Adapter
  • CB Radio Handheld&Amateur Radio Transceivers
  • Ham Radio Transceivers
  • CB Radio Handheld&Amateur Radio
