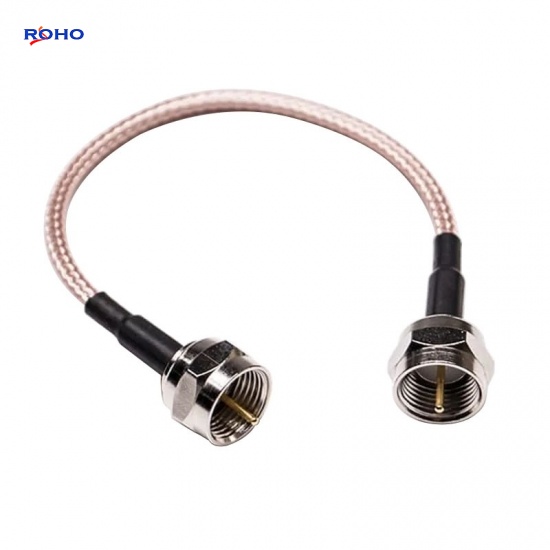

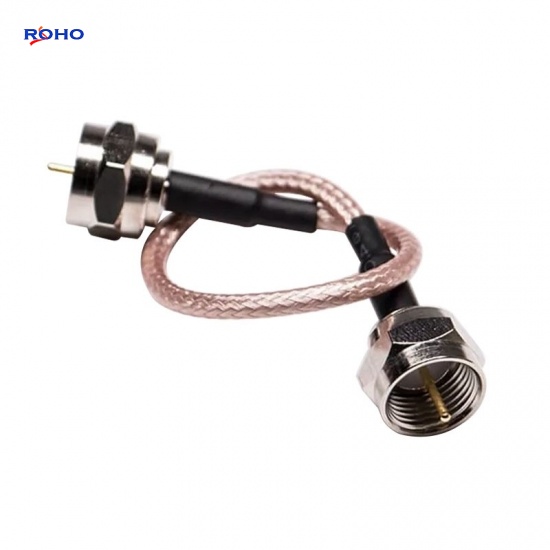

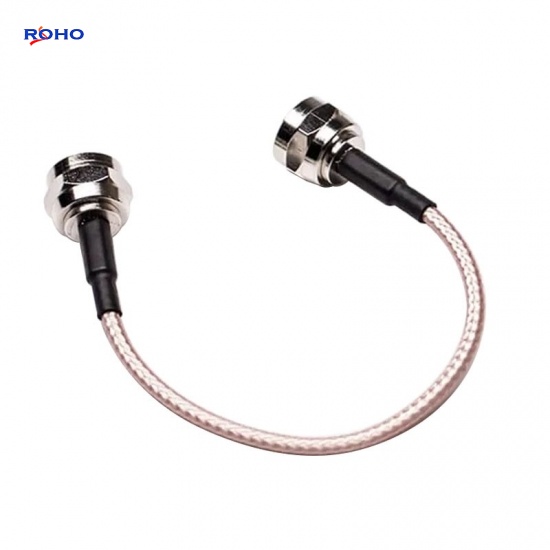

F Type Male to F Type Male Connector Cable Assembly with RG316 Coax Cable
The Type F cable assembly can use flexible coaxial cable such as RG11, RG179, RG187, RG59, RG6 or RG6-CATV cable; the body of F to F cable assembly is right angle or straight connector which is female to female, male to female or male to male gender. This F male to F male cable assembly uses a 75ohm straight type F for connector 1 and a 75ohm Straight F for connector 2, Cable is flexible cable type RG316.
Specifications
ELECTRICAL DATA | |
Connector 1 Series | F |
Connector 1 Style | Str Male |
Cable Type | RG316 |
Connector 2 Series | F |
Connector 2 Style | Str Male |
Contact Termination | Solder |
Shield Termination | Crimp |
Impedance (Ohms) | 50 or 75 |
Low PIM | No |
Max Frequency | 3GHz |
Working Temperature | -65°C to +165°C |
MATERIAL DATA | |
Body Material | Brass |
Body Finish | Nickel/Ternary alloy |
Contact Material | Phosphor Bronze/Beryllium Copper |
Contact Finish | Gold/Silver |
Insulator Material | PTFE |
Applications
- Radio Scanners
- Antennas DAB Aerial Adapter
- CB Radio Handheld&Amateur Radio Transceivers
- Ham Radio Transceivers
- CB Radio Handheld&Amateur Radio
