IPEX Connectors

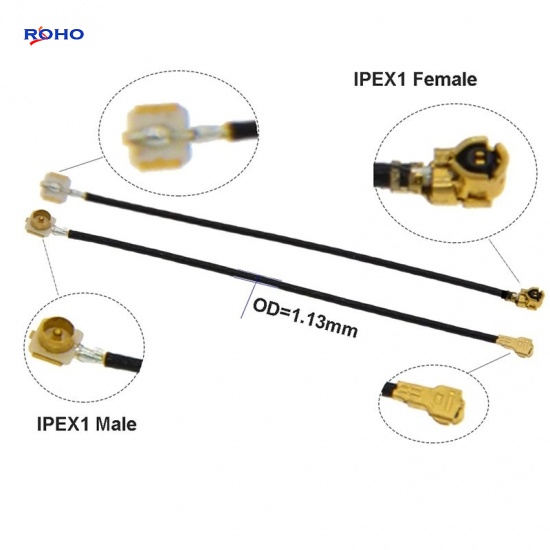

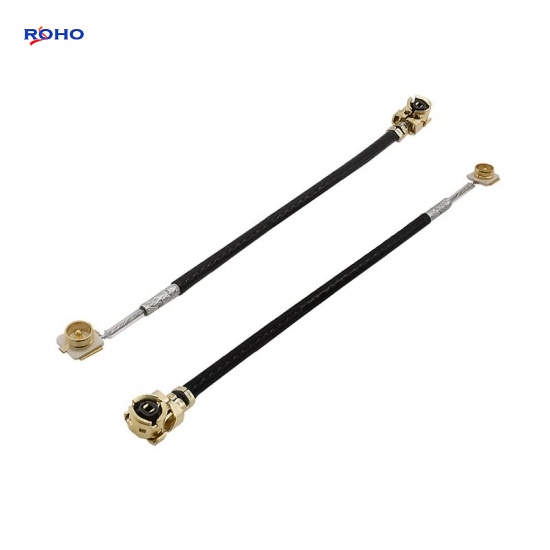

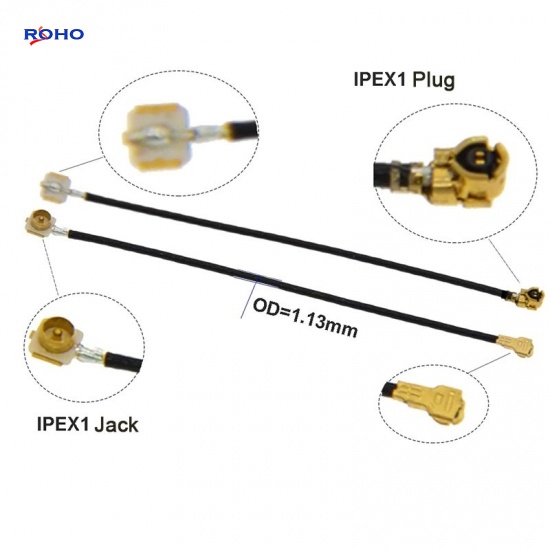

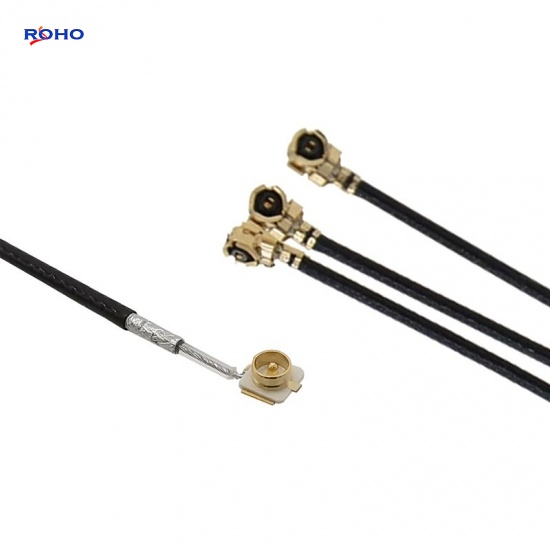

IPEX1 MHF1 UFL1 Plug Connector IPEX1 MHF1 UFL1 Jack Connector for RF 1.13mm Coaxial Jumper Cable

Features:

  • Nominal mated height of 1.9 or 2.4mm (Max. 2.0 or 2.5mm ) ;
  • Accepts high frequency transmission;
  • Small mounting area The receptacle occupies an area of 7.7mm;
  • Light weight;
  • Plugs are terminated with ultra-fine coaxial (fluorinated resin insulated )cable;
  • Automatic board placement;
  • Simple connector mating / unmating;
  • Verification of the fully mated condition.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

IPEX1 MHF1 UFL1 Plug Connector IPEX1 MHF1 UFL1 Jack Connector for RF 1.13mm Coaxial Jumper Cable



The IPEX UFL MHF connector is a 1U CubeSat (of size 10 cm x 10 cm x 10 cm and a mass of ~1 kg) intended to flight validate technologies for onboard instrument processing ;The  IPEX U.FL MHF spacecraft will use aligned magnets for passive stabilization in LEO (Low Earth Orbit).



Specifications

ELECTRICAL DATA
Temperature Range -40°C ~+90°C
Characteristic  impedancd 50Ω
 Frequency range 0~6GHz
Working voltage 170V(r ms)
VSWR ≤1.25
Insulation Resistance ≥1000MΩ
Dielectric Withstanding voltage 500V(r ms)
Contact resistance Center conductor ≤10mΩ
Outer conductor ≤5mΩ
Durability 500 Cycles
Material And Plating
Body Brass , gold plated
Male center contacts Phosphor bronze , gold plated
Female center contacts Beryllium copper , gold plated
Insulators PTFE
Crimp Ferrules Copper alloy , nickel or gold plated



Applications

  • PHS
  • GPS
  • Cellular phones
  • Wireless communication devices
  • Electronic measuring instruments
  • Mobile phones
  • Wireless LAN
  • Bluetooth
  • Application requiring high frequency transmission using small coaxial connectors
