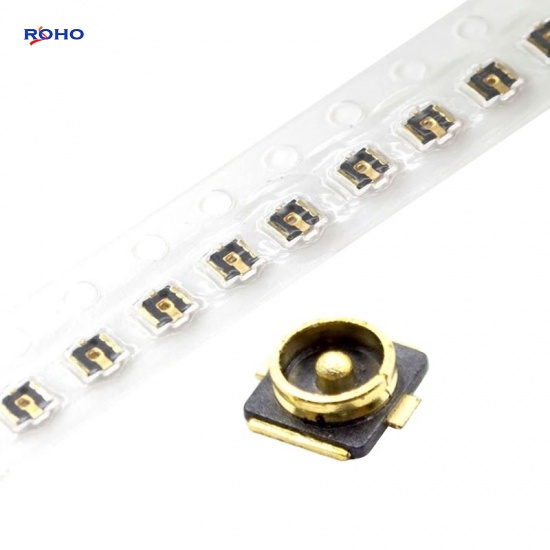

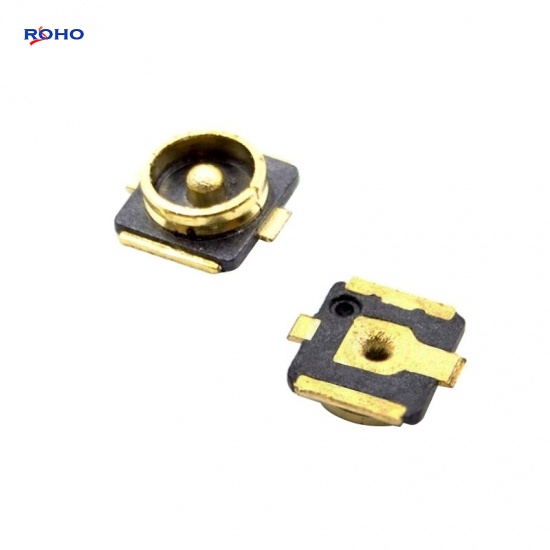

UFL3 IPEX3 MHF3 Jack RF Coaxial SMT PCB Socket Connector for Antenna
The IPEX UFL MHF connector is a 1U CubeSat (of size 10 cm x 10 cm x 10 cm and a mass of ~1 kg) intended to flight validate technologies for onboard instrument processing ;The IPEX U.FL MHF spacecraft will use aligned magnets for passive stabilization in LEO (Low Earth Orbit).
Specifications
| ELECTRICAL DATA | |
| Temperature Range | -40°C ~+90°C |
| Characteristic impedancd | 50Ω |
| Frequency range | 0~6GHz |
| Working voltage | 170V(r ms) |
| VSWR | ≤1.25 |
| Insulation Resistance | ≥1000MΩ |
| Dielectric Withstanding voltage | 500V(r ms) |
| Contact resistance | Center conductor ≤10mΩ |
| Outer conductor ≤5mΩ | |
| Durability | 500 Cycles |
| Material And Plating | |
| Body | Brass , gold plated |
| Male center contacts | Phosphor bronze , gold plated |
| Female center contacts | Beryllium copper , gold plated |
| Insulators | PTFE |
| Crimp Ferrules | Copper alloy , nickel or gold plated |
Applications
- PHS
- GPS
- Cellular phones
- Wireless communication devices
- Electronic measuring instruments
- Mobile phones
- Wireless LAN
- Bluetooth
- Application requiring high frequency transmission using small coaxial connectors
