2.2-5 Adaptors

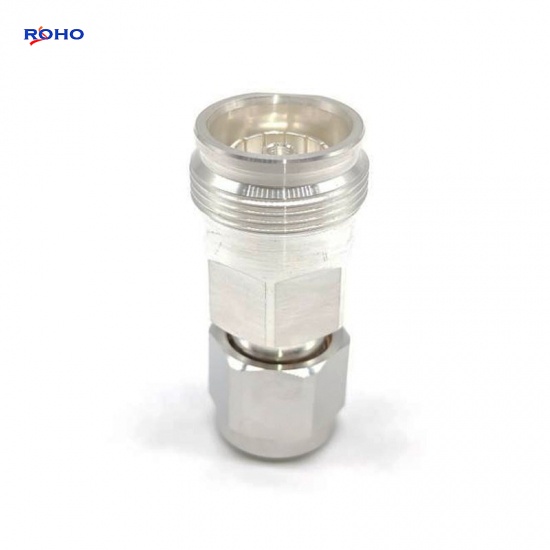

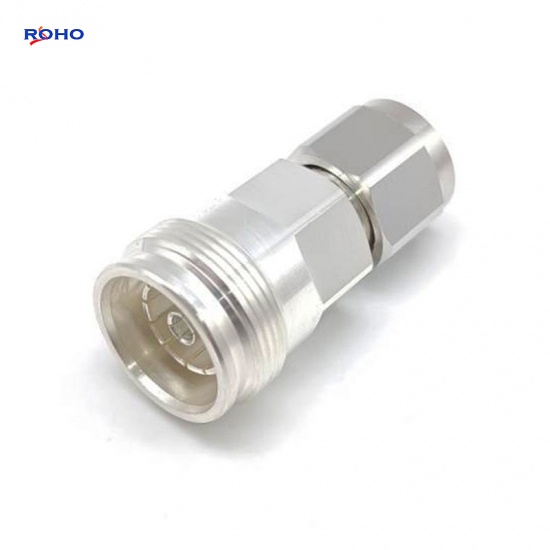

Low Pim 2.2-5 Male to 4.3-10 Female Straight RF Connector Adapter

N type adapters Features:

  • Allow to interface N connectors with N, 7-16 DIN, 4.3-10, 3.5mm, or 2.2-5 connectors;
  • Require low PIM in order to avoid interference in network quality during high speed data transmission;
  • Flexibility in installation with the ability to blind mate;
  • Lightweight and can accommodate various cable types;
  • Both indoor and outdoor applications.



  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

Low Pim 2.2-5 Male to 4.3-10 Female Straight RF Connector Adapter



The 2.2-5 Adapter has 2.2-5 to 4.3-10 standard polarity adapter gender options. The 2.2-5 to 4.3-10 adapters has male to female or male to male gender designs. ROHO offers low PIM or high performance designs.This 2.2-5 male to 4.3-10 female adapter has a maximum frequency of 8GHz, and is a straight adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series 2.2-5
Adapter Side 1 Style Male
Adapter Side 2 Series 4.3-10
Adapter Side 2 Style Female
Frequency (Max GHz) 8
Impedance (Ohms) 50
Low PIM Yes
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Distributed antenna systems (DAS)
  • Mobile communication base stations
  • Telecommunication installations
  • Mobile radio
