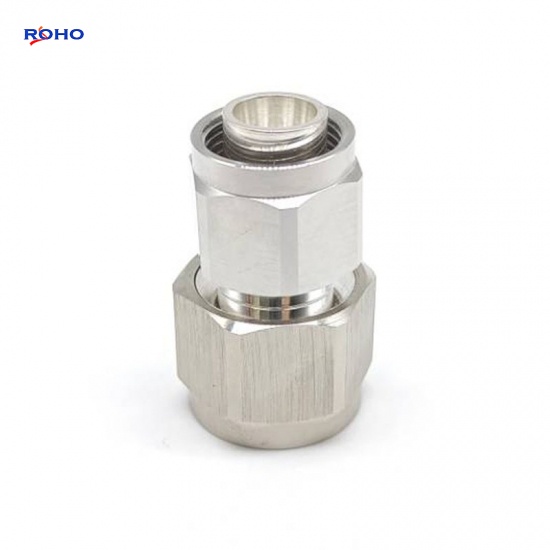

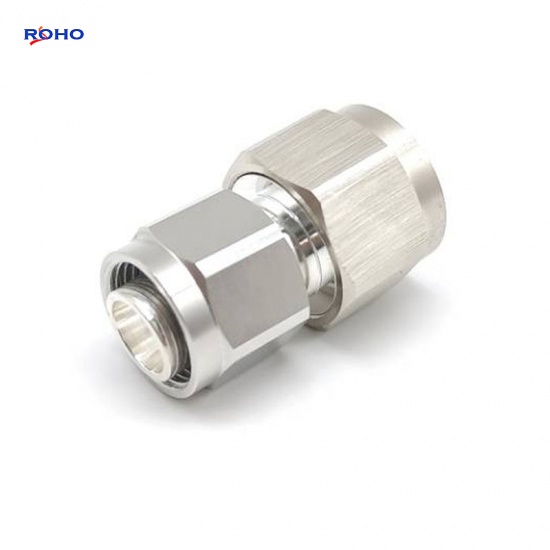

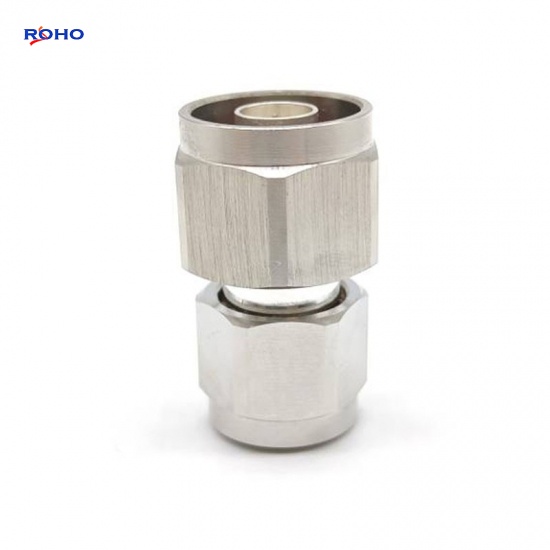

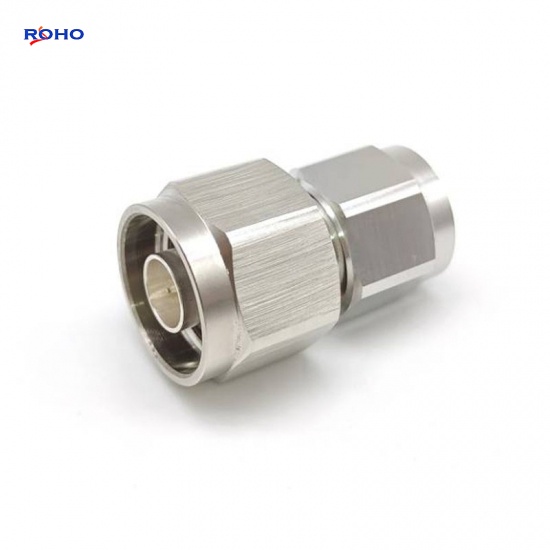

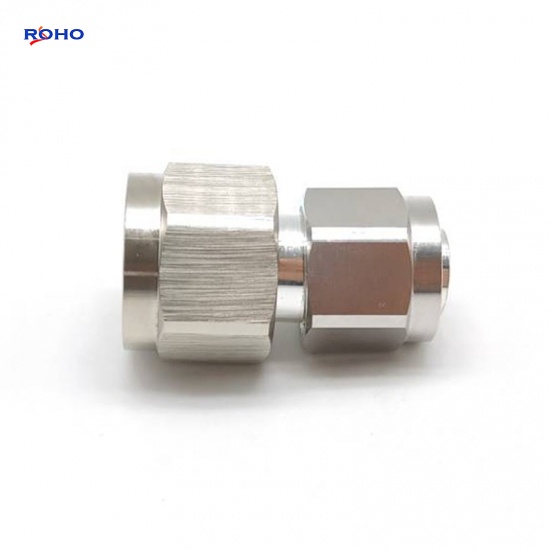

Low Pim 2.2-5 Male To N Male RF Connector Adapter Manufacturer

Low Pim 2.2-5 Female to N Female RF Connector Adapter

N type adapters Features： Allow to interface N connectors with N, 7-16 DIN, 4.3-10, 3.5mm, or 2.2-5 connectors; Require low PIM in order to avoid interference in network quality during high speed data transmission; Flexibility in installation with the ability to blind mate； Lightweight and can accommodate various cable types; Both indoor and outdoor applications.

2.92mm Female to 2.92mm Female 4 Hole Flange Adapter

New 2.92mm Female to 2.92mm Female 4 Hole Flange Mount RF Coaxial Connector Adapter

2.92mm adapters Features： Includes bulkhead, 4 hole panel or mountless configurations; Allow to interface 3.5mm connectors with 1.85mm, 2.4mm, 2.92mm, 3.5mm, SMP or N connectors; Available in female to female, female to male, female to sexless, male to female, male to male or male to sexless gender combinations; OEM & ODM available for special design with competitive Factory price; 40GHz 3.5mm adapter maximum frequency is provided; Can be Customized for unique material or performance requirement.

FAKRA H Jack Right Angle Connector Crimp for RG174 RG316 Cable

GPS Telematics and Navigation FAKRA H Jack Female Right Angle Connector Crimp Solder Attachment for RG174 Cable

Fakra features： Can terminate to coax or PCB (printed circuit board); Can be jack or plug gender in standard polarity or reverse polarity threads, with 50ohm impedance; Body can be straight or right angle; Mount Method can be crimp/solder or solder; Attachment methods include crimp/solder or solder; Body is plastic.

PL259 UHF Male Straight Connector Clamp Solder Attachment for RG58 RG141 RG142 RG223 RG400 Cable

UHF Connector Features： Can terminate to coax or terminal; Can be male, female or sexless gender with 50ohm impedance; Body can be straight or right angle; Mount Method can be 4 hole flange, bulkhead, 4 hole panel or mountless options; Attachment methods include clamp/solder, crimp/solder, field replaceable or solder; Body is brass or zinc.

Low Pim 2.2-5 Female to 2.2-5 Female RF Coaxial Connector Adaptor For 5G

N type adapters Features： Allow to interface N connectors with N, 7-16 DIN, 4.3-10, 3.5mm, or 2.2-5 connectors; Require low PIM in order to avoid interference in network quality during high speed data transmission; Flexibility in installation with the ability to blind mate； Lightweight and can accommodate various cable types; Both indoor and outdoor applications.

Low Pim 2.2-5 Male to 4.3-10 Male Straight RF Connector Adapter

N type adapters Features： Allow to interface N connectors with N, 7-16 DIN, 4.3-10, 3.5mm, or 2.2-5 connectors; Require low PIM in order to avoid interference in network quality during high speed data transmission; Flexibility in installation with the ability to blind mate； Lightweight and can accommodate various cable types; Both indoor and outdoor applications.

Low Pim 2.2-5 Male to 4.3-10 Female Straight RF Connector Adapter

N type adapters Features： Allow to interface N connectors with N, 7-16 DIN, 4.3-10, 3.5mm, or 2.2-5 connectors; Require low PIM in order to avoid interference in network quality during high speed data transmission; Flexibility in installation with the ability to blind mate； Lightweight and can accommodate various cable types; Both indoor and outdoor applications.

Low Pim 2.2-5 Male to 7-16 DIN Female RF Connector Adapter

N type adapters Features： Allow to interface N connectors with N, 7-16 DIN, 4.3-10, 3.5mm, or 2.2-5 connectors; Require low PIM in order to avoid interference in network quality during high speed data transmission; Flexibility in installation with the ability to blind mate； Lightweight and can accommodate various cable types; Both indoor and outdoor applications.

Low Pim 2.2-5 Female to N Female RF Connector Adapter

N type adapters Features： Allow to interface N connectors with N, 7-16 DIN, 4.3-10, 3.5mm, or 2.2-5 connectors; Require low PIM in order to avoid interference in network quality during high speed data transmission; Flexibility in installation with the ability to blind mate； Lightweight and can accommodate various cable types; Both indoor and outdoor applications.

New 2.92mm Female to 2.92mm Female 4 Hole Flange Mount RF Coaxial Connector Adapter

2.92mm adapters Features： Includes bulkhead, 4 hole panel or mountless configurations; Allow to interface 3.5mm connectors with 1.85mm, 2.4mm, 2.92mm, 3.5mm, SMP or N connectors; Available in female to female, female to male, female to sexless, male to female, male to male or male to sexless gender combinations; OEM & ODM available for special design with competitive Factory price; 40GHz 3.5mm adapter maximum frequency is provided; Can be Customized for unique material or performance requirement.

GPS Telematics and Navigation FAKRA H Jack Female Right Angle Connector Crimp Solder Attachment for RG174 Cable

Fakra features： Can terminate to coax or PCB (printed circuit board); Can be jack or plug gender in standard polarity or reverse polarity threads, with 50ohm impedance; Body can be straight or right angle; Mount Method can be crimp/solder or solder; Attachment methods include crimp/solder or solder; Body is plastic.

PL259 UHF Male Straight Connector Clamp Solder Attachment for RG58 RG141 RG142 RG223 RG400 Cable

UHF Connector Features： Can terminate to coax or terminal; Can be male, female or sexless gender with 50ohm impedance; Body can be straight or right angle; Mount Method can be 4 hole flange, bulkhead, 4 hole panel or mountless options; Attachment methods include clamp/solder, crimp/solder, field replaceable or solder; Body is brass or zinc.

Low Pim 2.2-5 Female to 2.2-5 Female RF Coaxial Connector Adaptor For 5G

N type adapters Features： Allow to interface N connectors with N, 7-16 DIN, 4.3-10, 3.5mm, or 2.2-5 connectors; Require low PIM in order to avoid interference in network quality during high speed data transmission; Flexibility in installation with the ability to blind mate； Lightweight and can accommodate various cable types; Both indoor and outdoor applications.

Low Pim 2.2-5 Male to 4.3-10 Male Straight RF Connector Adapter

N type adapters Features： Allow to interface N connectors with N, 7-16 DIN, 4.3-10, 3.5mm, or 2.2-5 connectors; Require low PIM in order to avoid interference in network quality during high speed data transmission; Flexibility in installation with the ability to blind mate； Lightweight and can accommodate various cable types; Both indoor and outdoor applications.

Low Pim 2.2-5 Male to 4.3-10 Female Straight RF Connector Adapter

N type adapters Features： Allow to interface N connectors with N, 7-16 DIN, 4.3-10, 3.5mm, or 2.2-5 connectors; Require low PIM in order to avoid interference in network quality during high speed data transmission; Flexibility in installation with the ability to blind mate； Lightweight and can accommodate various cable types; Both indoor and outdoor applications.

Low Pim 2.2-5 Male to 7-16 DIN Female RF Connector Adapter

N type adapters Features： Allow to interface N connectors with N, 7-16 DIN, 4.3-10, 3.5mm, or 2.2-5 connectors; Require low PIM in order to avoid interference in network quality during high speed data transmission; Flexibility in installation with the ability to blind mate； Lightweight and can accommodate various cable types; Both indoor and outdoor applications.

Low Pim 2.2-5 Female to N Female RF Connector Adapter

N type adapters Features： Allow to interface N connectors with N, 7-16 DIN, 4.3-10, 3.5mm, or 2.2-5 connectors; Require low PIM in order to avoid interference in network quality during high speed data transmission; Flexibility in installation with the ability to blind mate； Lightweight and can accommodate various cable types; Both indoor and outdoor applications.

New 2.92mm Female to 2.92mm Female 4 Hole Flange Mount RF Coaxial Connector Adapter

2.92mm adapters Features： Includes bulkhead, 4 hole panel or mountless configurations; Allow to interface 3.5mm connectors with 1.85mm, 2.4mm, 2.92mm, 3.5mm, SMP or N connectors; Available in female to female, female to male, female to sexless, male to female, male to male or male to sexless gender combinations; OEM & ODM available for special design with competitive Factory price; 40GHz 3.5mm adapter maximum frequency is provided; Can be Customized for unique material or performance requirement.

GPS Telematics and Navigation FAKRA H Jack Female Right Angle Connector Crimp Solder Attachment for RG174 Cable

Fakra features： Can terminate to coax or PCB (printed circuit board); Can be jack or plug gender in standard polarity or reverse polarity threads, with 50ohm impedance; Body can be straight or right angle; Mount Method can be crimp/solder or solder; Attachment methods include crimp/solder or solder; Body is plastic.

PL259 UHF Male Straight Connector Clamp Solder Attachment for RG58 RG141 RG142 RG223 RG400 Cable

UHF Connector Features： Can terminate to coax or terminal; Can be male, female or sexless gender with 50ohm impedance; Body can be straight or right angle; Mount Method can be 4 hole flange, bulkhead, 4 hole panel or mountless options; Attachment methods include clamp/solder, crimp/solder, field replaceable or solder; Body is brass or zinc.

ELECTRICAL DATA
Adapter Side 1 Series	2.2-5
Adapter Side 1 Style	Male
Adapter Side 2 Series	N
Adapter Side 2 Style	Male
Frequency (Max GHz)	8
Impedance (Ohms)	50
Low PIM	Yes
Orientation	Straight
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
MATERIAL DATA
Body Material	Brass
Body Finish	Nickel/Ternary alloy
Contact Material	Phosphor Bronze/Beryllium Copper
Contact Finish	Gold/Silver
Insulator Material	PTFE

Low Pim 2.2-5 Male to N Male RF Connector Adapter

Low Pim 2.2-5 Male to 7-16 DIN Female RF Connector Adapter
