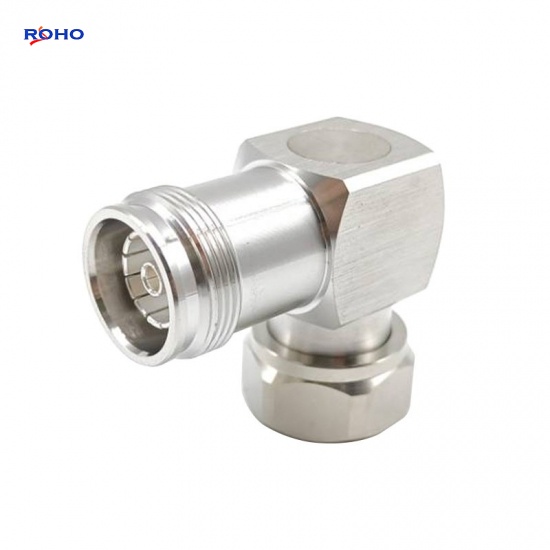

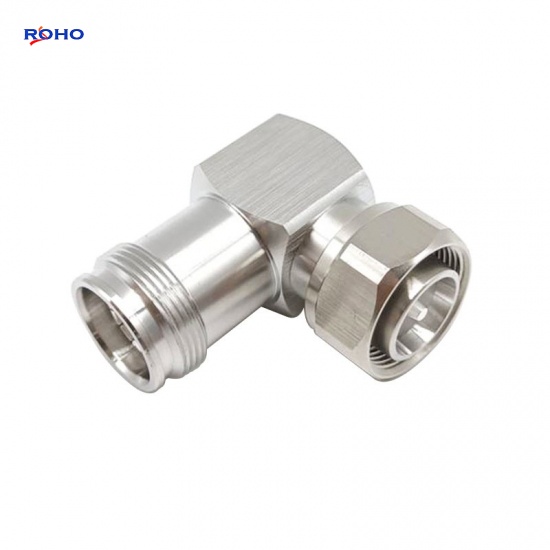

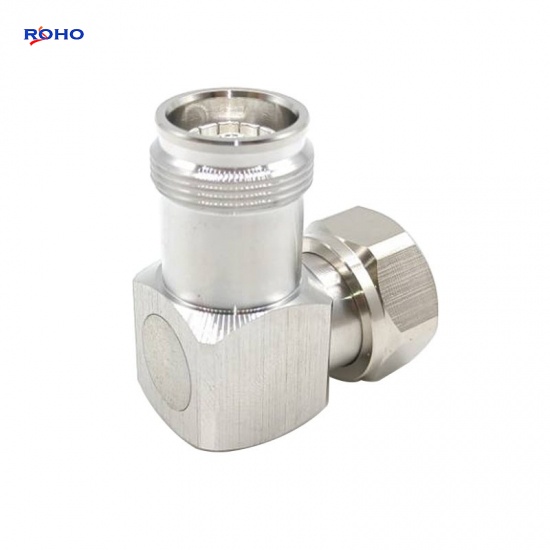

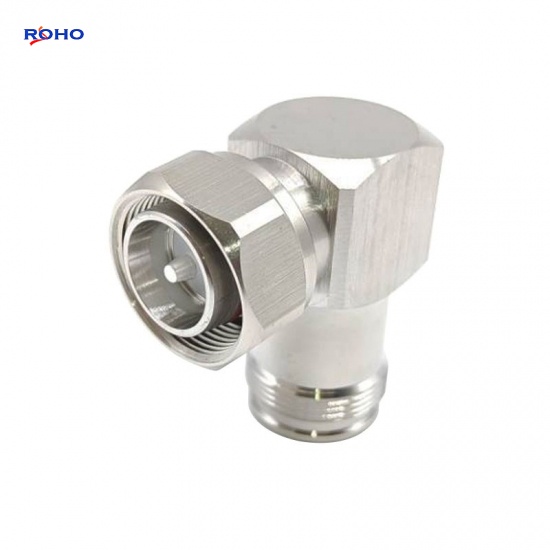

Low Pim 4.3-10 Male to 4.3-10 Female Right Angle RF Connector Adapter
The 4.3-10 Adapter has different 4.3-10 to 4.3-10 adapter gender.The 4.3-10 to 4.3-10 adapters has female to female, male to female or male to male gender. it has straight or right angle body. ROHO offers 4.3-10 to 4.3-10 adapters in standard or low PIM designs. This 4.3-10 male to 4.3-10 female adapter has a maximum frequency of 3GHz, and is a right angle body adapter.
Specifications
| ELECTRICAL DATA | |
| Adapter Side 1 Series | 4.3-10 |
| Adapter Side 1 Style | Male |
| Adapter Side 2 Series | 4.3-10 |
| Adapter Side 2 Style | Female |
| Frequency (Max GHz) | 3 |
| Impedance (Ohms) | 50 |
| Low PIM | Yes |
| Orientation | Right Angle |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| MATERIAL DATA | |
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Telecommunication installations
- Mobile radio
- Communication engineering
- Radar applications
