4.3-10 Adaptors

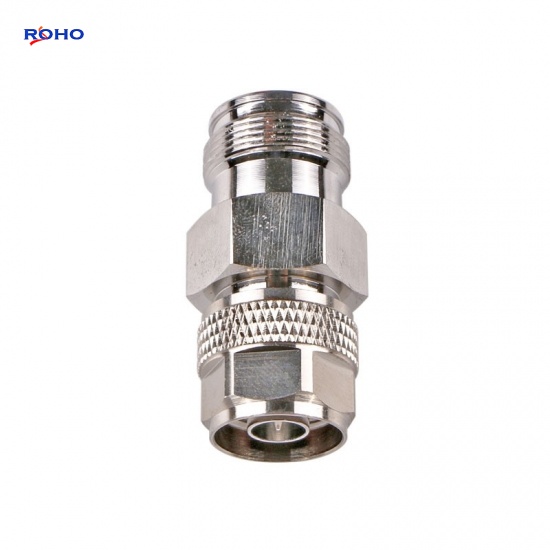

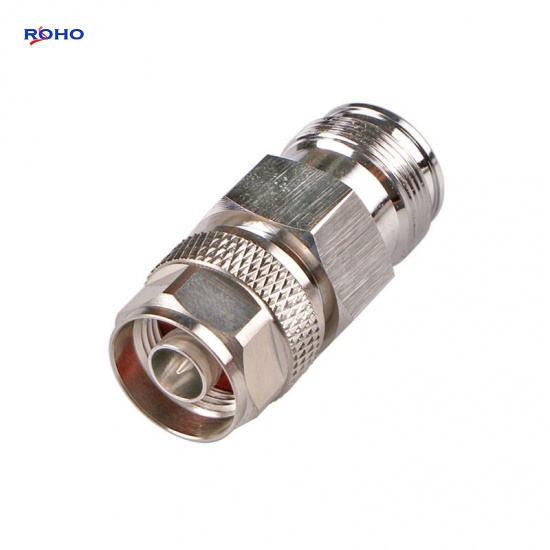

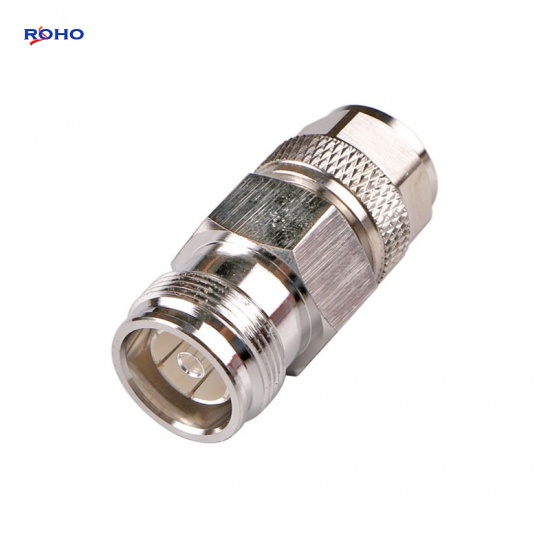

Low Pim 4.3-10 Mini Din Female to N Male Straight RF Connector Adapter

4.3-10 adapters Features:

  • Allow to interface 4.3-10 connectors with N, 7-16 DIN, 4.3-10 or SMA connectors;
  • Same design as 7-16 connectors , smaller up to 40% lighter;
  • Designs IP67, and provide excellent VSWR performance up to 6GHz;
  • Very stable PIM performance, allowing for easier installation;
  • Silver plated contacts and White Bronze plated bodies offer a high-degree of conductivity, corrosion resistance, and durability;
  • Applications low passive intermodulation or PIM.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

Low Pim 4.3-10 Mini Din Female to N Male Straight RF Connector Adapter



The 4.3-10 Adapter has different 4.3-10 to N adapter gender.The 4.3-10 to N adapters has female to female, female to male, male to female or male to male gender.  it has straight or right angle body. ROHO offers 4.3-10 to N adapters in standard or low PIM designs. This 4.3-10 female to N male adapter has a maximum frequency of 6GHz, and is a straight body adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series 4.3-10
Adapter Side 1 Style Female
Adapter Side 2 Series N
Adapter Side 2 Style Male
Frequency (Max GHz) 6
Impedance (Ohms) 50
Low PIM Yes
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Telecommunication installations
  • Mobile radio
  • Communication engineering
  • Radar applications
