NEX10 Cable Assemblies

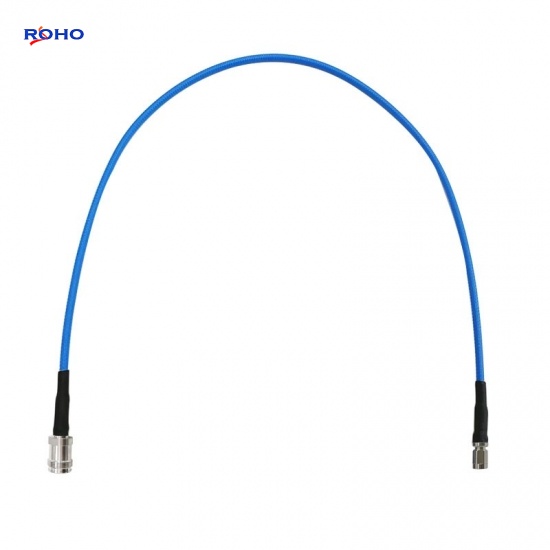

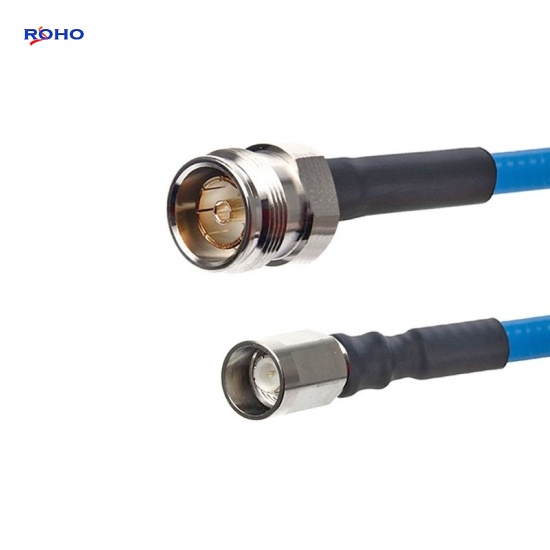

Low Pim NEX10 Male to Mini Din 4.3-10 Female Connector Cable Assembly with SPP Plenum Rated Coax Flexible Cable

NEX10 Cable assembly Features:

  • Can be combined with, 4.3-10, NEX10, 7-16 DIN, N or SMA connector;
  • Body is right angle or straight connectors;
  • Cable Can use flexible or Corrugated cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

Low Pim NEX10 Male to Mini Din 4.3-10 Female Connector Cable Assembly with SPP Plenum Rated Coax Flexible Cable



The NEX10 cable assembly can use flexible, formable or semirigid coaxial cable such as 1/4" Superflexible, TFT402; the body of NEX10 to 4.3-10 cable assembly is right angle or straight connectors which is male to female or male to male gender. ROHO's NEX10 to 4.3-10 cable assembly is a low pim cable. This NEX10 male to 4.3-10 female cable assembly uses a 50ohm straight NEX10 for connector 1 and a 50ohm straight 4.3-10 for connector 2, Cable is 50ohm SPP plenum rated coax flexible cable.



Specifications

ELECTRICAL DATA
Connector 1 Series NEX10
Connector 1 Style Str Male
Cable Type SPP Plenum Rated Coax Flexible Cable
Connector 2 Series 4.3-10
Connector 2 Style Str Male
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM Yes
Max Frequency 6GHz
Working Temperature -65°C  to +165°C
ELECTRICAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Multi-Carrier Communication Systems
  • Small Cell
  • Low PIM Applications
  • Distributed Antennas Systems (DAS)
  • Outdoor Installations
