NEX10 Cable Assemblies

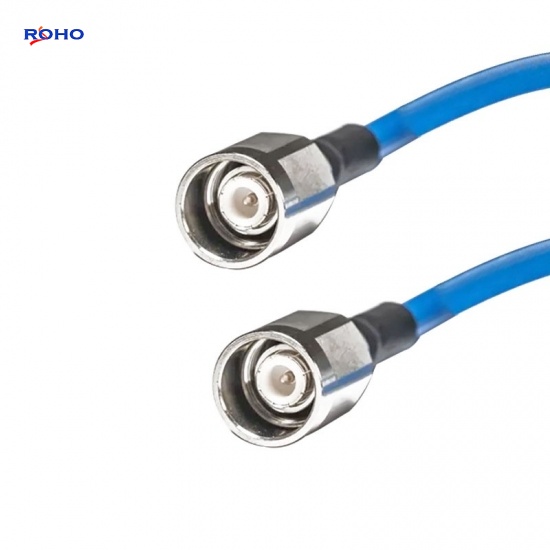

Low Pim NEX10 Male to NEX10 Male Connector Cable Assembly with RG402 Coax Flexible Cable

NEX10 Cable assembly Features:

  • Can be combined with, 4.3-10, NEX10, 7-16 DIN, N or SMA connector;
  • Body is right angle or straight connectors;
  • Cable Can use flexible or Corrugated cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

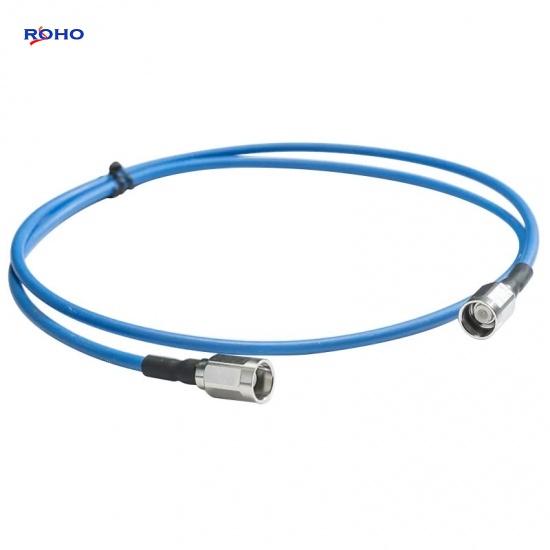

Low Pim NEX10 Male to NEX10 Male Connector Cable Assembly with RG402 Coax Flexible Cable



The NEX10 cable assembly can use flexible, formable or semirigid coaxial cable such as 1/4" Superflexible, TFT402; the body of NEX10 to NEX10 cable assembly is right angle or straight connectors which is male to female or male to male gender. ROHO's NEX10 to NEX10 cable assembly is a low pim cable. This NEX10 male to NEX10 male cable assembly uses a 50ohm straight NEX10 for connector 1 and a 50ohm straight NEX10 for connector 2, Cable is 50ohm RG402 flexible cable.



Specifications

ELECTRICAL DATA
Connector 1 Series NEX10
Connector 1 Style Str Male
Cable Type RG402 Flexible Cable
Connector 2 Series NEX10
Connector 2 Style Str Male
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM Yes
Max Frequency 6GHz
Working Temperature -65°C  to +165°C
ELECTRICAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Multi-Carrier Communication Systems
  • Small Cell
  • Low PIM Applications
  • Distributed Antennas Systems (DAS)
  • Outdoor Installations
