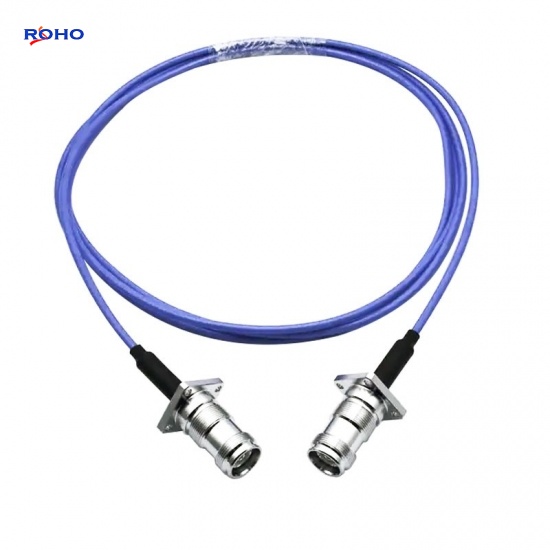

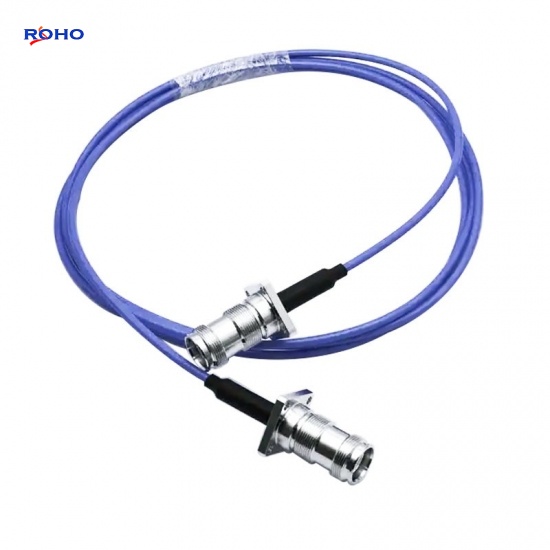

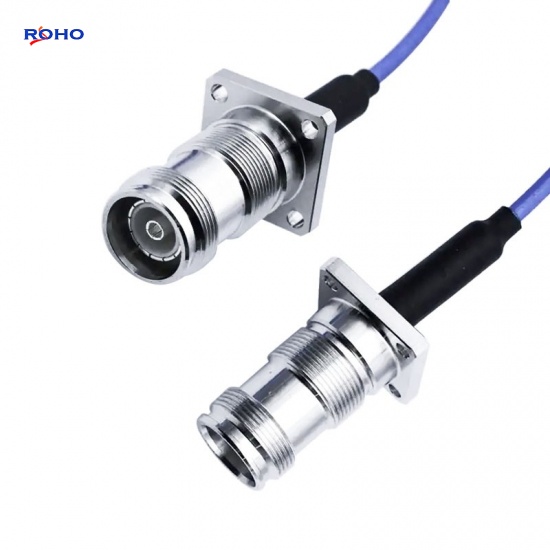

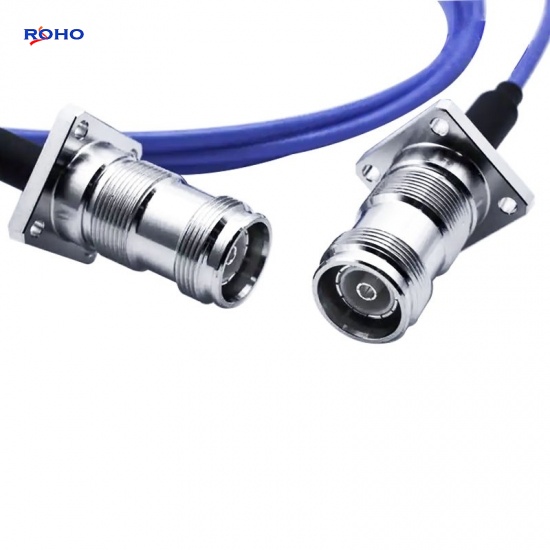

Mini Din 4.3-10 Female Flange to Female Bulkhead Flange with RG402 Cable Assembly
The 4.3-10 cable assembly can use flexible or corrugated coaxial cable such as LMR240, TFT402, LDF4-50A (1/2"); the body of 4.3-10 to 4.3-10 cable assembly is right angle or straight connectors which is female to female, female to male, male to female or male to male gender. ROHO's 4.3-10 to 4.3-10 cable assembly is a low PIM cable. This 4.3-10 female to 4.3-10 female cable assembly uses a 50ohm straight 4.3-10 for connector 1 and a 50ohm straight 4.3-10 for connector 2, Cable is 50ohm RG402.
Specifications
| ELECTRICAL DATA | |
| Connector 1 Series | 4.3-10 |
| Connector 1 Style | Str Female |
| Cable Type | RG402 |
| Connector 2 Series | 4.3-10 |
| Connector 2 Style | Str Female |
| Contact Termination | Solder |
| Shield Termination | Crimp |
| Impedance (Ohms) | 50 |
| Low PIM | Yes |
| Max Frequency | 6 GHz |
| Working Temperature | -65°C to +165°C |
| MATERIAL DATA | |
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Multi-Carrier Communication Systems
- Low PIM Applications
- Distributed Antennas Systems (DAS)
- Outdoor Installations
- Plenum Installations
