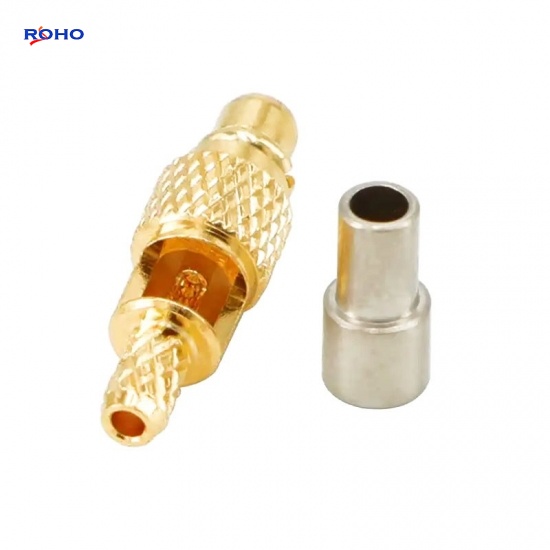

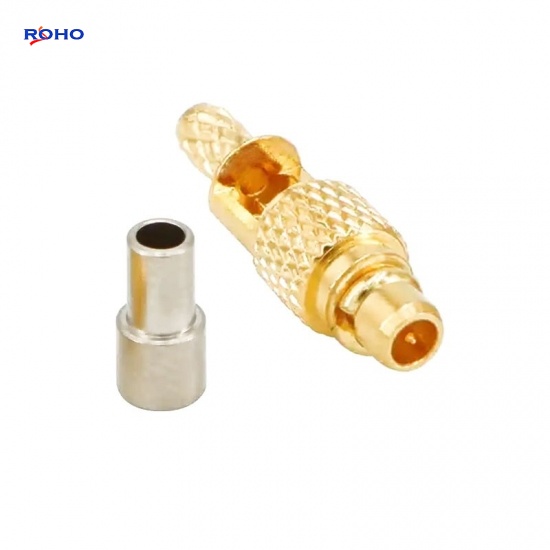

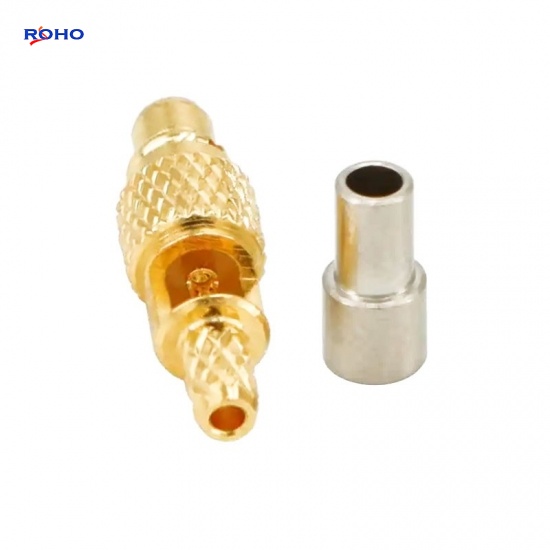

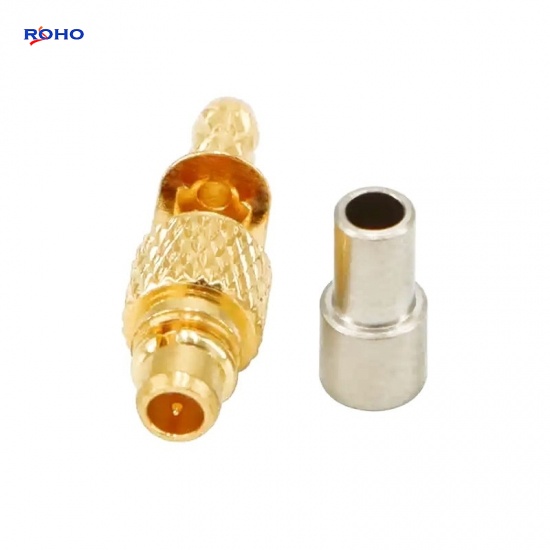

MMCX Plug Male Straight Open Window Design Easy Welding for RG174 RG316 Cable

MMCX Connector Features

  • Available in straight and right angle plugs and printed circuit board connectors;
  • Quick connect/disconnect snap-on mating reduces installation time;
  • Broadband performance with low reflection;
  • IConforms to European CECC 22000 specifications;
  • High-quality solution at a low cost.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

MMCX Plug Male Straight Open Window Design Easy Welding for RG174 RG316 Cable



The MMCX (Micro-Miniature Coaxial) connector series is a micro-miniature version of the MCX. It is a 50 ohm impedance interface with broadband capability of DC to 6 GHz and secure, fast and easy snap-on/snap-off coupling. MMCX connectors have a smaller footprint than the MCX series, and are available in a wide array of configurations. this MMCX plug coaxial connector has an interface type of RG174 RG316 and a 50ohm impedance, it uses shield/contact crimp/solder as an attachment method, and has a straight brass body with gold plating.



Specifications

ELECTRICAL DATA
Impedance                                                                   50Ω
Frequency range DC-6GHz
Dielectric withstanding voltage (at sea level) 750Vrms,50Hz
Working voltage 170Vrms,50Hz (at sea level) / 42Vrms,50Hz (at 21000m/70000ft)
Insulation resistance  10000 mΩ
Contact resistance Inner conductor: 5mΩ
Outer conductor: 1mΩ
RF leakage(measured at 1GHZ) Flexible: 60dB
Semi-rigid cable: 70dB
MECHANICAL DATA
Engagement force 25Nm /5.6lbs
Disengagement force 8N-20N / 1.8 lbs-4.5lbs
Contact captivation 10N / 2.3 lbs
Durability (matings) 500
ENVIRONMENTAL DATA
Temperature range −40°C to +90°C
MATERIAL DATA
Bodies Brass--Au plated
Pin contacts Brass--Au plating
Socket contacts Coppper beryllium alloy / Phosphor bronze--Au plating
Crimp ferrules Brass--Au plating
Insulator PTFE



Applications

  • Instrumentation
  • Antennas
  • Satcom
  • Base Stations
  • GPS
  • Broadband
  • Telecommunications
