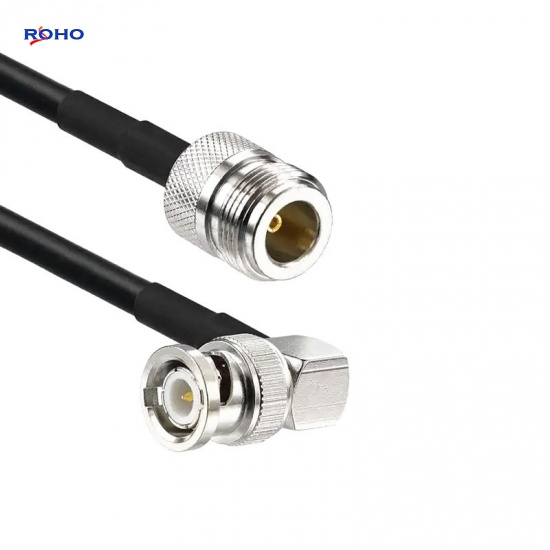

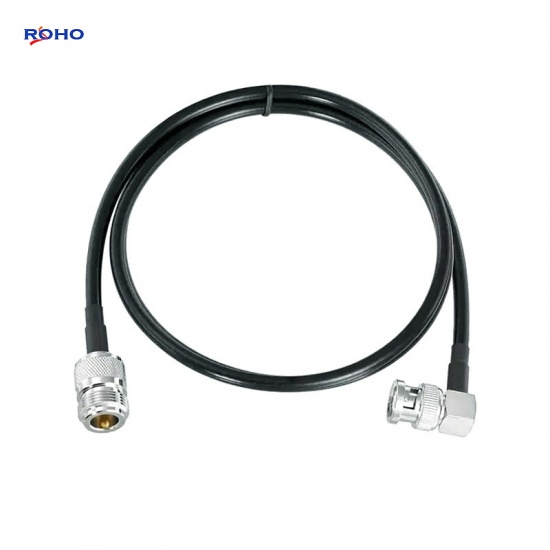

N Female to BNC Male Right Angle with RG58 RF Coaxial
The Type N cable assembly can use corrugated, flexible, formable or semirigid coaxial cable such as 1/2" Helical, 1/2" Superflexible, 1/4" Superflexible, LMR195, LMR240, LMR400, LMR600, RG11, RG141, RG142, RG174, RG178, RG179, RG187, RG188, RG213, RG214, RG217,RG218, RG223, RG225, RG316, RG393, RG400, RG401, RG402, RG405, RG55, RG58, RG59, RG6, RG62, RG8 or TFT402 cable; the body of Type N to BNC cable assembly is right angle or straight connectors which is female to female, male to female or male to male gender. This N female to BNC male cable assembly uses a 50ohm straight type N for connector 1 and a 50ohm right angle BNC for connector 2, Cable is 50ohm cable type RG58.
Specifications
| ELECTRICAL DATA | |
| Connector 1 Series | N Type |
| Connector 1 Style | Str Female |
| Cable Type | RG58 |
| Connector 2 Series | BNC |
| Connector 2 Style | RA Male |
| Contact Termination | Solder |
| Shield Termination | Crimp |
| Impedance (Ohms) | 50 |
| Low PIM | No |
| Max Frequency | 4 GHz |
| Working Temperature | -65°C to +165°C |
| MATERIAL DATA | |
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- WLAN
- Base Stations
- Satellite Systems
- Instrumentation
- Antennas
- Radar Systems
