N Type Adaptors

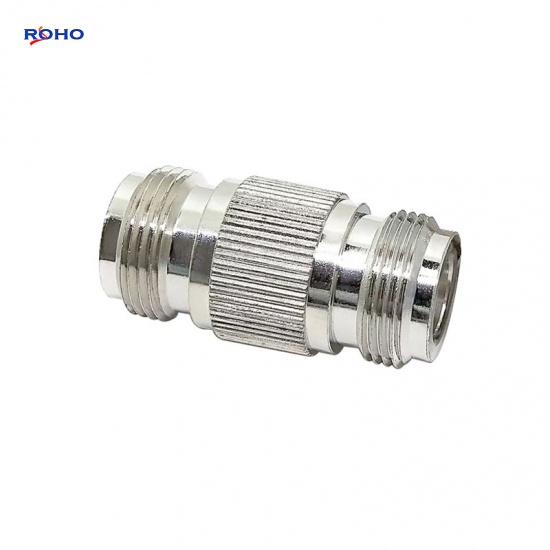

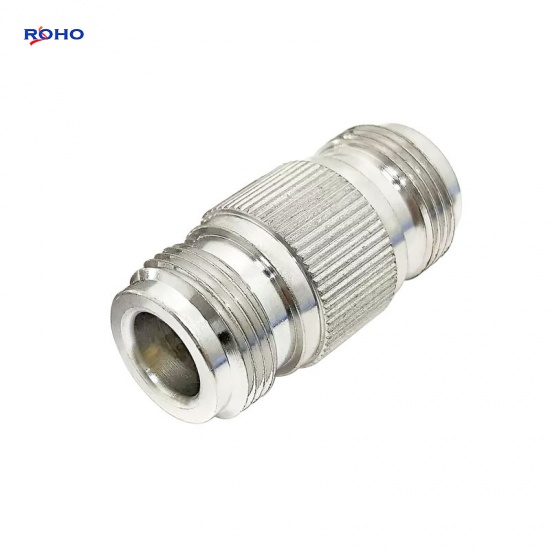

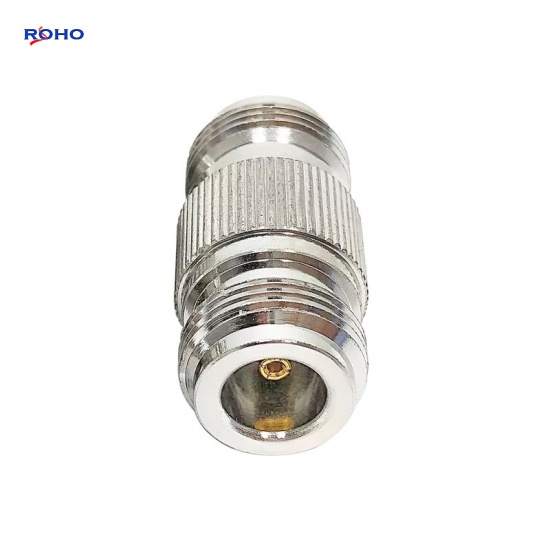

N Female to N Female Straight RF Connector Adapter

N type adapters Features:

  • Allow to interface N connectors with N, QMA, QN, SMA, 1.85mm, 2.4mm, 2.92mm, 3.5mm, 7-16 DIN, 4.3-10, BNC, MCX, UHF, SMB, TNC or UHF connectors;
  • Satisfy for a durable, weatherproof, medium-size RF adapter with consistent performance;
  • High frequency range up to 8GHz;
  • Threaded coupling mechanism, used in all systems where excellent RF and mechanical performance.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

N Female to N Female Straight RF Connector Adapter



The N Type Adapter has N to N standard polarity adapter gender. The N to N adapters has female to female, female to male or male to male gender, and has bulkhead, 4 hole panel or mountless configurations. ROHO's N to N standard polarity adapters are standard interfaces; it has 50ohm or 75ohm impedance standard polarity, and has straight, radius right angle, tee or right angle versions. ROHO offers low PIM or high performance designs.This N female to N female adapter has a maximum frequency of 6GHz, and is a Straight RF adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series N-Type
Adapter Side 1 Style Male
Adapter Side 2 Series N-Type
Adapter Side 2 Style Female
Frequency (Max GHz) 6
Impedance (Ohms) 50 or 75
Low PIM Yes
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Body Material Brass
Body Finish
Nickel/Ternary alloy
Contact Material Phosphor Bronze/Beryllium Copper
Contact Finish Gold/Silver
Insulator Material PTFE



Applications

  • Base stations
  • Broadcast systems
  • Radar equipment
  • Microwave Radio
  • Outdoor antennas
  • Wireless LAN
  • Satellite systems
  • Surge protection
