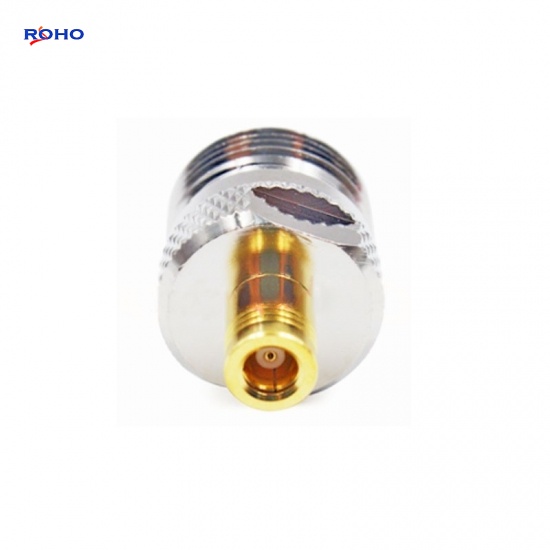

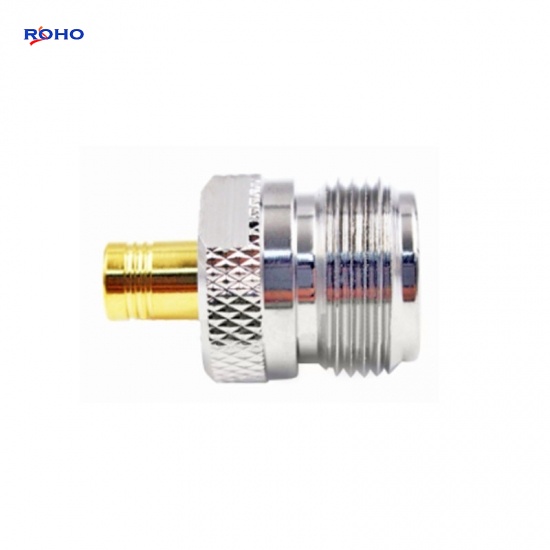

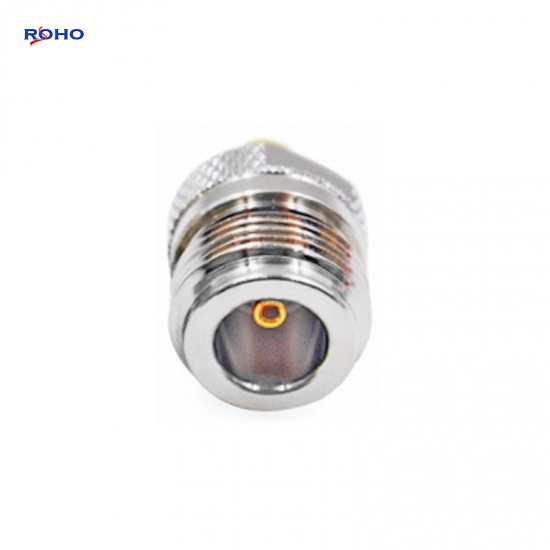

New SMB Plug Female to N Female RF Coaxial Connector Adapter
The SMB Adapter has different SMB to N adapter gender, that is a between series coaxial adapter, The SMB to N adapters has jack to female, plug to female, jack to male or plug to male gender combinations. it has 50ohm or 75ohm impedance. This SMB plug to N female adapter has a maximum frequency of 4GHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA | |
| Adapter Side 1 Series | SMB |
| Adapter Side 1 Style | Plug |
| Adapter Side 2 Series | N |
| Adapter Side 2 Style | Female |
| Frequency (Max GHz) | 4 |
| Impedance (Ohms) | 50 or 75 |
| Low PIM | No |
| Orientation | Straight |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| MATERIAL DATA | |
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Antennas, CCTV
- Digital communication systems
- HAM radios,
- Microwave applications
- Wireless LAN devices
