SMB Adaptors

SMB Jack Male to N Female RF Coaxial Connector Adapter

SMB adapters Features:

  • Allow to interface SMB connectors with BNC, N, SMA or SMB connectors;
  • Has jack to female, jack to jack, jack to male, jack to plug, plug to female; plug to jack, plug to male or plug to plug gender designs;
  • Has 50 Ohm or 75 Ohm impedance;
  • Has bulkhead or mountless configurations;
  • Broadband performance with low reflection DC to 4 GHz, up to 10 GHz;
  • Snap-on coupling mechanism;
  • Various materials including an option for die cast components on low-cost solution.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

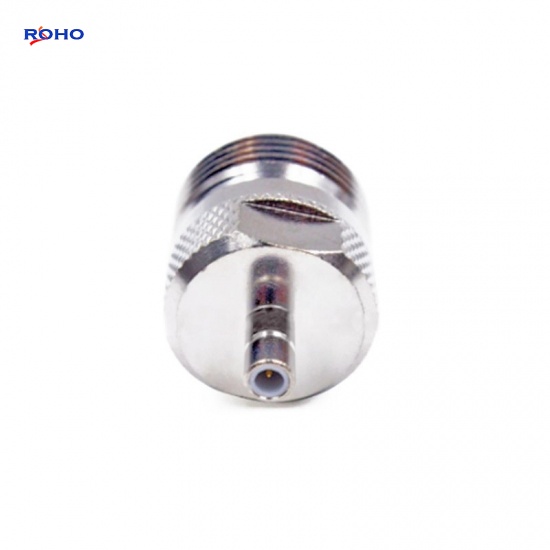

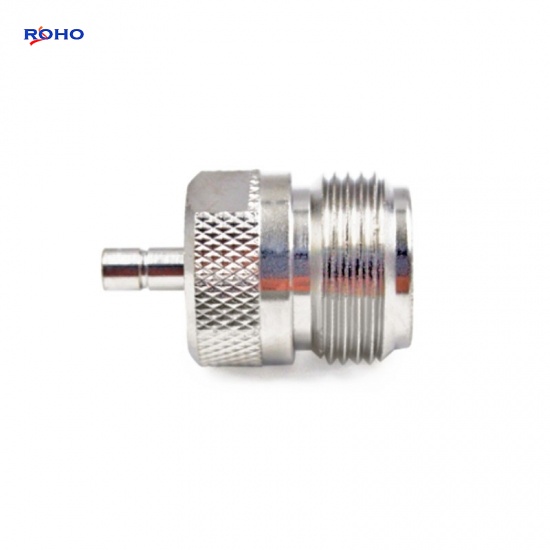

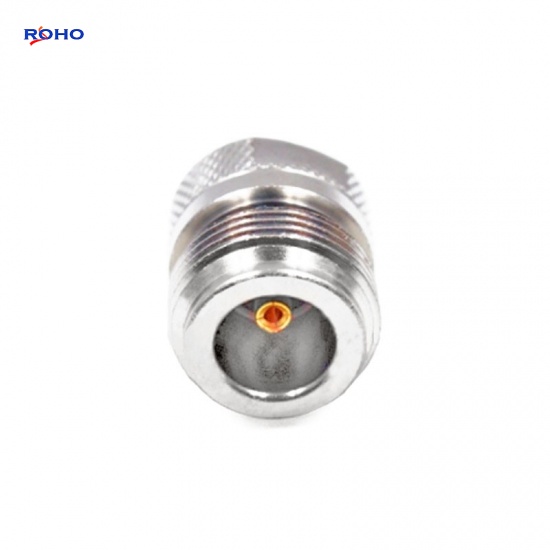

SMB Jack Male to N Female RF Coaxial Connector Adapter



The SMB Adapter has different SMB to N adapter gender, that is a between series coaxial adapter, The SMB to N adapters has jack to female, plug to female, jack to male or plug to male gender combinations. it has 50ohm or 75ohm impedance. This SMB jack to N female adapter has a maximum frequency of 4GHz, and is a straight body adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series SMB
Adapter Side 1 Style Jack
Adapter Side 2 Series N
Adapter Side 2 Style Female
Frequency (Max GHz) 4
Impedance (Ohms) 50 or 75
Low PIM No
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Antennas, CCTV
  • Digital communication systems
  • HAM radios,
  • Microwave applications
  • Wireless LAN devices
