As the radio frequency (RF) and telecommunications industry relentlessly pushes towards higher frequencies and denser infrastructure, a quiet revolution is unfolding in the humble terminator. A new class of components, built around the innovative NEX10 connector interface, is rapidly gaining traction, promising to deliver superior performance in a significantly smaller package for next-generation networks.

    Traditionally, high-power and low-intermodulation applications relied on bulky connectors like the 7/16 DIN. For space-constrained small cells and Distributed Antenna Systems (DAS), the 4.3-10 interface became popular. Now, the NEX10 connector is positioned as a powerful successor, offering extended frequency reach and enhanced reliability in an even more compact form factor.

    Industry leaders like Fairview Microwave have already launched product lines featuring NEX10 connectors, including fixed attenuators and terminations designed for high-frequency applications up to 6 GHz. This signals a clear industry shift towards adopting this advanced standard to meet the stringent demands of modern 5G and future network deployments.

    The NEX10 connector was developed specifically to address the challenges of modern and future wireless infrastructure. Its core design principles focus on three critical areas:

1. Miniaturization: The NEX10 interface is approximately 30% smaller than the widely used 4.3-10 connector, allowing for dramatically higher port density on equipment panels. This is crucial for Massive MIMO antennas and compact radio units.

2. High-Frequency Performance: While 4.3-10 connectors are typically specified up to 6 GHz, the NEX10 standard is engineered to perform reliably from DC all the way up to 20 GHz. This future-proofs infrastructure for upcoming 5G-Advanced and 6G frequency bands.

3. Robustness and Low PIM: Designed for rugged outdoor use, NEX10 connectors feature a robust design that protects the contact area from damage during mating. Most importantly, they deliver exceptionally low Passive Intermodulation (PIM) performance, typically better than -160 dBc, which is essential for maintaining signal clarity in multi-operator, multi-carrier environments.

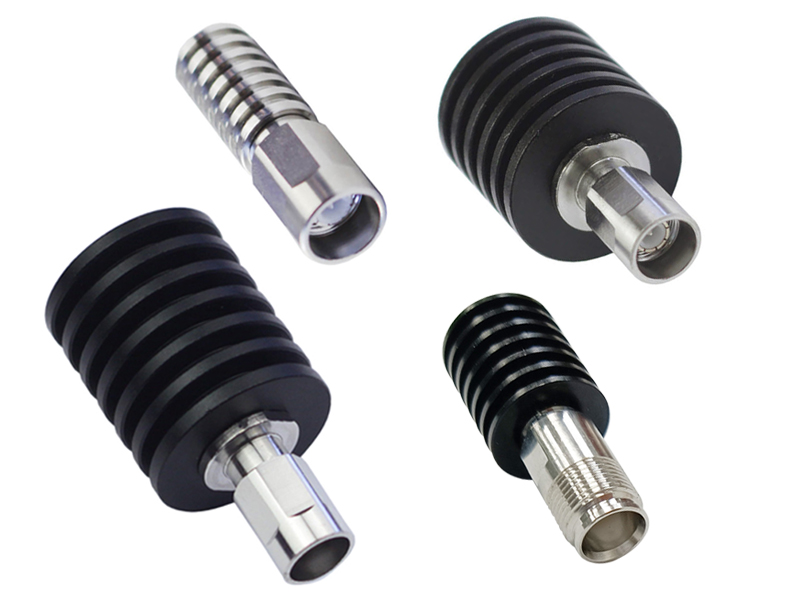

    Terminators and attenuators built with NEX10 connectors inherit the interface's advanced capabilities, offering a compelling package of performance features:

• Broad Frequency Range: Components support operations from DC to 20 GHz, far surpassing the common 6 GHz limit of many existing solutions and enabling wider system bandwidth.

• Excellent Power Handling: Despite its small size, the NEX10 interface boasts impressive power ratings. For example, some terminator designs can handle 100 watts at 2 GHz (85°C ambient), making them suitable for a wide range of high-power applications.

• Superior Signal Integrity: These components ensure minimal signal reflection and loss, characterized by a very low Voltage Standing Wave Ratio (VSWR)—typically 1.25:1 or better—and high return loss across their frequency range.

• Environmental Resilience: As true outdoor connectors, NEX10-based devices are built to withstand harsh conditions. They commonly feature an IP68 protection rating when mated and can operate across a wide temperature range from -55°C to +125°C.

• Installation Flexibility: The NEX10 standard offers multiple coupling mechanisms, including a threaded version for maximum security and a quick-lock (push-pull) version for tool-free, rapid installation, catering to different deployment needs.

    To understand the technological leap, a direct comparison with the previous compact-generation connector is helpful.

    The rollout of NEX10 is backed by solid industry groundwork. The interface has been formalized in the international standard IEC 61169-71, guaranteeing interoperability and consistent performance across manufacturers. Major RF component companies like Rosenberger are not only manufacturing products but are also part of the NEX10 Alliance, driving its global standardization and adoption.

    "The launch of our new RF components with NEX10 connectors delivers reliable performance and precise control, making them an essential addition for modern RF systems," said Pong, a Product Line Manager at ROHO.

    The primary applications for NEX10 terminators and related components are clear:

• 5G and Beyond: Small cell networks, DAS, and base station antennas requiring high density and performance up to millimeter-wave frequencies.

• Test & Measurement: Equipment requiring reliable, high-frequency terminations for accurate calibration and testing.

• Multi-Operator Systems: Any infrastructure where exceptional low-PIM performance is critical to prevent interference between different carrier signals.

    With its compelling blend of miniaturization, extended frequency range, and ruggedized design, the NEX10 terminator is poised to become the connector of choice for engineers designing the next wave of dense, high-performance wireless infrastructure. As network evolution continues to prioritize efficiency and capacity, this advanced interface is well-positioned to terminate the past and connect the future.
