QMA Adaptors

QMA Female to N Female RF Coaxial Adaptor

QMA adapters Features：

Allow to interface QMA connectors with QMA, N or SMA connectors;
Has female to male or male to female gender varieties;
Quick disconnect version of the SMA adaptor and shares the same internal construction;
Excellent performance up to 18GHz;
Because of the innovative coupling mechanism, a 360-degree butt joint is maintained resulting in low RF leakage;
QMA series offers a more convenient installation than SMA;
The interface mates with a snap-on instead of a threaded coupling, has a significant time advantage.

Brand:
ROHO
Product Origin:
China
Shipping Port:
Shenzhen
Lead Time:
7-17days

Inquiry Now

Product Detail

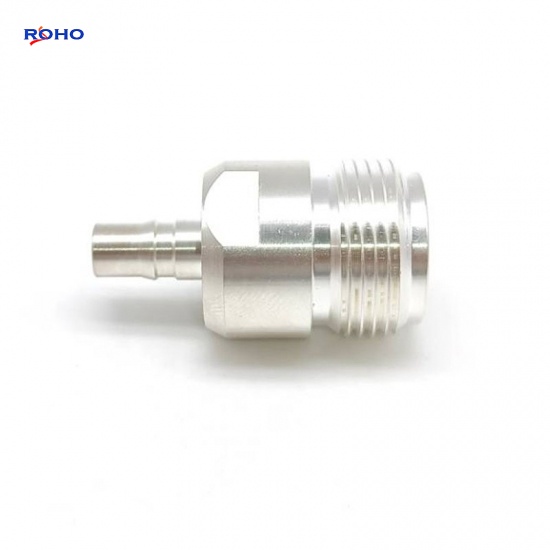

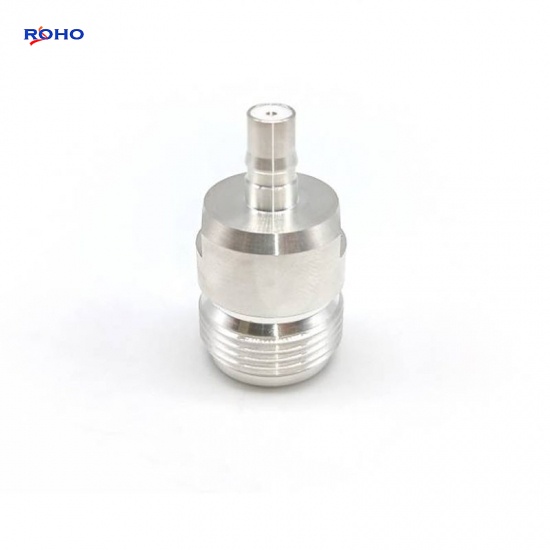

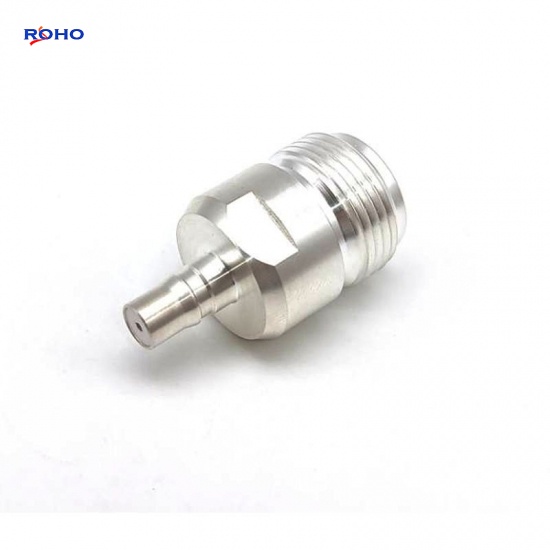

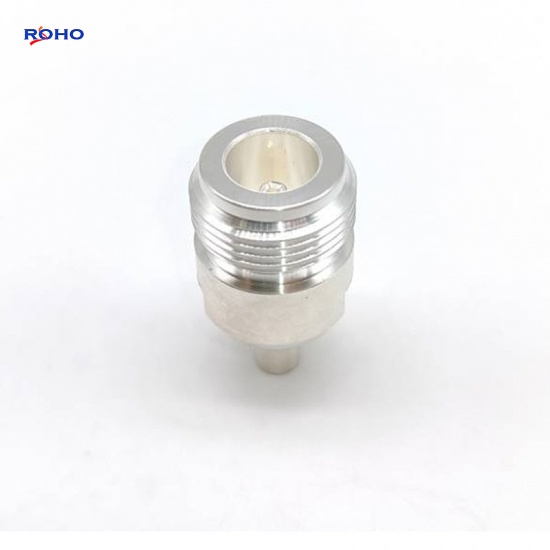

QMA Female to N Female RF Coaxial Adaptor

The QMA Adapter has different QMA to N adapter gender, is a between series coaxial adapter. The QMA to N adapters has female to male or male to female gender varieties. This QMA female to N female adapter has a maximum frequency of 18GHz, and is a straight body adapter.

Specifications

ELECTRICAL DATA
Adapter Side 1 Series	QMA
Adapter Side 1 Style	Female
Adapter Side 2 Series	N
Adapter Side 2 Style	Female
Frequency (Max GHz)	18
Impedance (Ohms)	50
Low PIM	NO
Orientation	Straight
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
ELECTRICAL DATA
Body Material	Brass
Body Finish	Nickel/Ternary alloy
Contact Material	Phosphor Bronze/Beryllium Copper
Contact Finish	Gold/Silver
Insulator Material	PTFE

Applications

Base stations
Wireless LAN
Broadcast systems
Microwave Radio
Radar equipment
Satellite systems
