QMA Male to RP SMA Female Connector Adaptor

QMA Male to RP SMA Female RF Coaxial Connector Adaptor

QMA adapters Features：

Allow to interface QMA connectors with QMA, N or SMA connectors;
Has female to male or male to female gender varieties;
Quick disconnect version of the SMA adaptor and shares the same internal construction;
Excellent performance up to 18GHz;
Because of the innovative coupling mechanism, a 360-degree butt joint is maintained resulting in low RF leakage;
QMA series offers a more convenient installation than SMA;
The interface mates with a snap-on instead of a threaded coupling, has a significant time advantage.

Brand:
ROHO
Product Origin:
China
Shipping Port:
Shenzhen
Lead Time:
7-17days

Inquiry Now

Product Detail

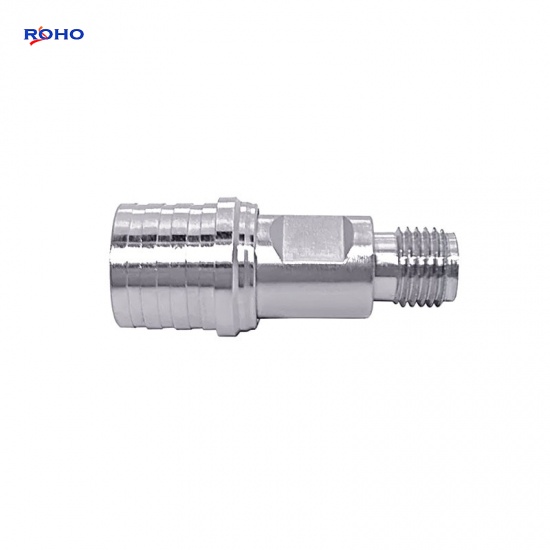

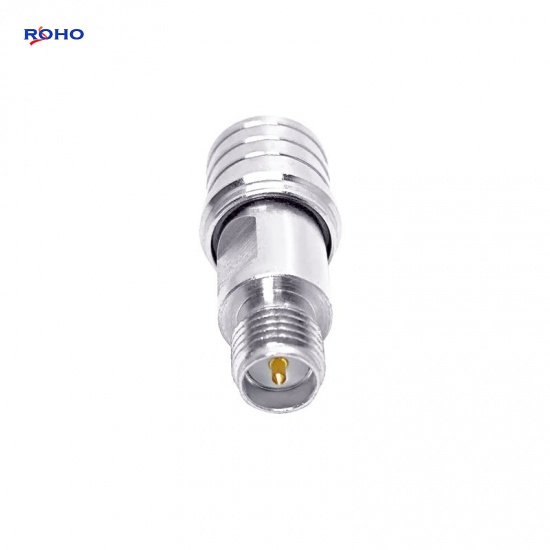

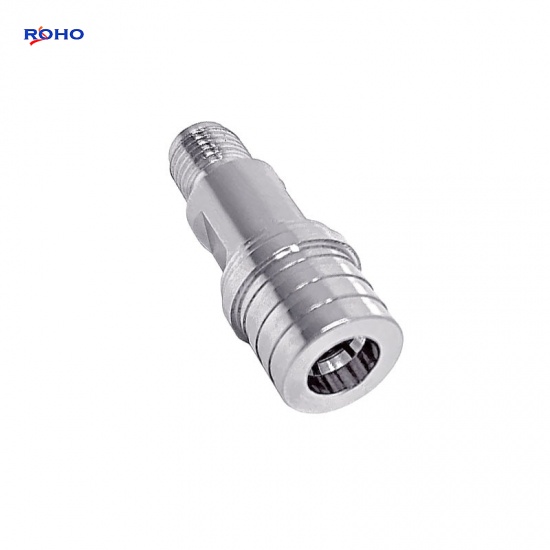

QMA Male to RP SMA Female RF Coaxial Connector Adaptor

The QMA Adapter has different QMA to SMA adapter gender, is a between series coaxial adapter. The QMA to SMA adapters has female to male, female to female, male to female or male to male gender varieties. This QMA male to RP SMA female adapter has a maximum frequency of 6GHz, and is a straight body adapter.

Specifications

ELECTRICAL DATA
Adapter Side 1 Series	QMA
Adapter Side 1 Style	Male
Adapter Side 2 Series	RP SMA or SMA
Adapter Side 2 Style	Female
Frequency (Max GHz)	6
Impedance (Ohms)	50
Low PIM	No
Orientation	Straight
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
ELECTRICAL DATA
Body Material	Brass
Body Finish	Nickel/Ternary alloy
Contact Material	Phosphor Bronze/Beryllium Copper
Contact Finish	Gold/Silver
Insulator Material	PTFE

Applications

Base stations
Wireless LAN
Broadcast systems
Microwave Radio
Radar equipment
Satellite systems
