QN Connectors

QN Female Bulkhead Connector Crimp Solder Attachment for RG213 RG215 Coaxial Cable

Features:

  • Snap-on interface for quick and easy installation;
  • Rotatable 360° after connection for flexibility with installation;
  • Operates at the same electrical performance as the N-Type up to 11 GHz;
  • OEM & ODM available for special design with competitive Factory price.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

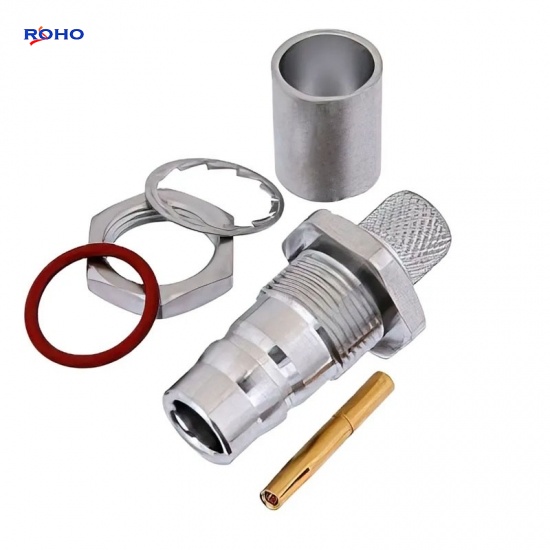

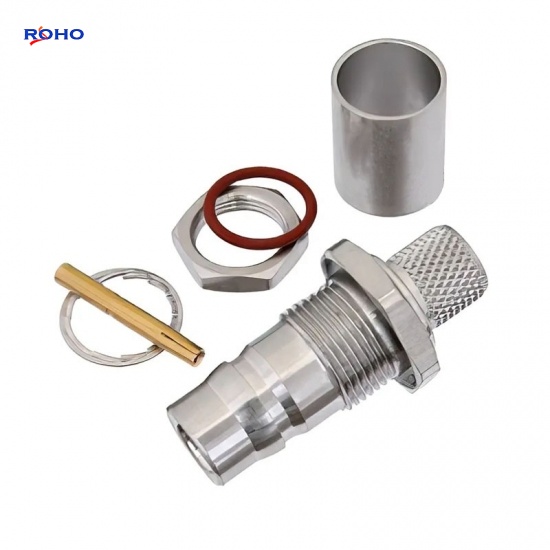

QN Female Bulkhead Connector Crimp Solder Attachment for RG213 RG215 Coaxial Cable



QN connector is a quick disconnect version of the N-Type connector with similar internal construction, which enables fast and easy matings with minimum space requirements;The innovative alternative to N-Type connectors, the QN line is perfect for indoor and outdoor applications including base stations and cellular installations. These connectors have the same benefits as threaded connectors and can be terminated to larger cables and are designed to handle higher power requirements, frequency max up to 11GHz; this QN female bulkhead coaxial connector with bulkhead has an interface type of RG213 RG215 and a 50ohm impedance, attachment method uses shield/contact crimp/solder, its straight body is brass with tri-metal plating.



Specifications

ELECTRICAL DATA
Impedance 50 Ohm
Frequency Range 11GHz
Voltage Rating 500 Volts RMS Continuous
Dielectric Withstanding Voltage 2500 VRMS Max
VSWR  (Return Loss)
DC - 3 GHz 1.052 (-32 dB) Max
3 - 6 GHz 1.12 (-25 dB) Max
6 - 11 GHz 1.22 (-20 dB) Max
Insulation Resistance  5000 MΩ Min
Center Contact Resistance 1.5 mΩ Max
Outer Contact Resistance 1.5 mΩ Max
RF Leakage -90 dB Max (DC - 3 GHz)
Insertion Loss .03 √(f(GHz)) dB Max
Power Handling 300 W @ 2.5 GHz @ 25ºC
MECHANICAL DATA
Mating Cycles 100 Min
Coupling Mechanism Push-Pull
Interface Specification Quick Lock Formula - QN
Engagement Force 6.75 lbs (30 N) Typ
Disengagement Force 6.75 lbs (30 N) Type
ENVIRONMENTAL DATA
Temperature Range −40°C to +125°C
MATERIAL DATA
Bodies Brass--ternary alloy plating
Pin contacts Brass--Au/Ag plating
Socket contacts Phosphor bronze / Beryllium copper--Ag plated
Crimp ferrules Copper--ternary alloy plating
Insulator PTFE
Gaskets Silicone rubber



Applications

  • Data Communications
  • Base Stations
  • Switching Equipment
  • Routers



Leave A Message
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Categories
Related Products
QN Female RF Coaxial Connector
Flange 4 Hole RF Coaxial QN Female Jack Connector for Board and Cable
Features: Snap-on interface for quick and easy installation; Rotatable 360° after connection for flexibility with installation; Operates at the same electrical performance as the N-Type up to 11 GHz; OEM & ODM available for special design with competitive Factory price.
QN Male Right Angle Crimp Connector for RG142 RG223 Cable
QN Male Right Angle Connector Crimp Solder Attachment for RG55 RG141 RG142 RG223 RG400 Coaxial Cable
Features: Snap-on interface for quick and easy installation; Rotatable 360° after connection for flexibility with installation; Operates at the same electrical performance as the N-Type up to 11 GHz; OEM & ODM available for special design with competitive Factory price.
4 Way 4.3 10 Power Splitter
4 Way Telecom Parts IBS Power Splitter 698-4000MHz 4.3-10 Female RF Passive Power Divider
Features: Wide Frequency Band for 4G and 5G, 698-2700MHz, 617-3800MHz, 698-3800MHz; Low Insertion Loss & Low VSWR; Low PIM, supports -140/-150/-155/-160dBc; N, 7/16 DIN, 4.3-10 Female connectors are available; Use for equal splitting of high power RF signals with minimal reflections or loss; Multi-type power splitters are available in 2-way, 3-way and 4-way; High Reliability, IP65 & IP67 waterproof.
BNC Female PCB Connector
75ohm BNC Female Right Angle Connector Solder Attachment Thru Hole for PCB
BNC Connector Features: Can terminate to coax, PCB (printed circuit board) or terminal; Can be male or female gender in standard polarity or reverse polarity threads, with 50ohm impedance; Body can be straight or right angle; Mount Method can be 4 hole flange, bulkhead, 4 hole panel or mount-less; Attachment methods include clamp/solder, crimp/solder, field replaceable, solder or solder/solder; Body is brass with nickel or gold or silver or tri-metal plating.
2.2-5 Male to 4.3-10 Male Adaptor
Low Pim 2.2-5 Male to 4.3-10 Male Straight RF Connector Adapter
N type adapters Features: Allow to interface N connectors with N, 7-16 DIN, 4.3-10, 3.5mm, or 2.2-5 connectors; Require low PIM in order to avoid interference in network quality during high speed data transmission; Flexibility in installation with the ability to blind mate; Lightweight and can accommodate various cable types; Both indoor and outdoor applications.
F Female Solder Surface Connector for PCB
Home Smart F Female Straight Connector Solder Attachment Surface for PCB
F type features: Can terminate to coax, PCB (printed circuit board) or terminal; Can be male or female gender, with 50 or 75 Ohm impedance; Body can be straight or right angle; Mount method can be bulkhead, 4 hole panel or or mount-less; Attachment methods include compression, crimp/solder, solder or twist; Body is brass, zinc alloy or stainless steel.
N Type Female 4 Hole Flange Coaxial Connector
N Female 4 Hole Flange Panel Mount Connector with Long Solder Pin Terminal N Type Connector
N type features: Can terminate to coax, PCB (printed circuit board) or terminal; Can be male or female gender in standard polarity or reverse polarity threads, with 50ohm impedance; Body can be straight or right angle; Mount Method can be press in, bulkhead, 2 hole panel, 4 hole panel or mount-less; Attachment methods include clamp/solder, clamp/solder (captive contact), crimp/solder, field replaceable, solder or solder/solder; Body is brass or stainless steel.

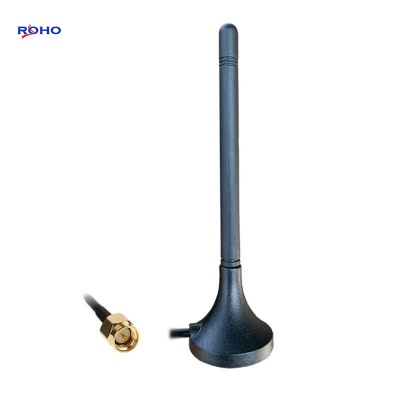

SMA Male Connector GPRS GSM Rubber Antenna
