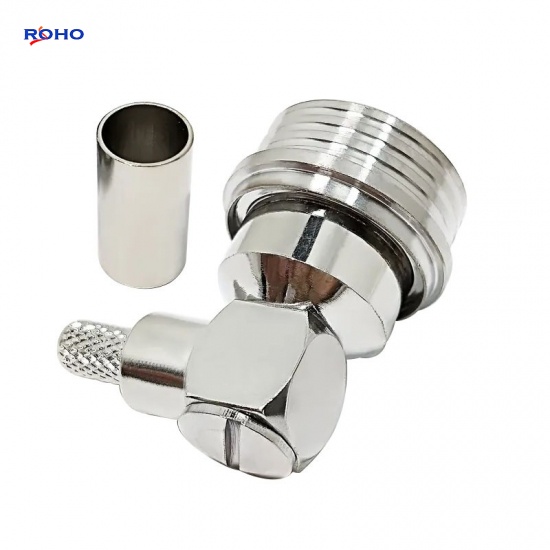

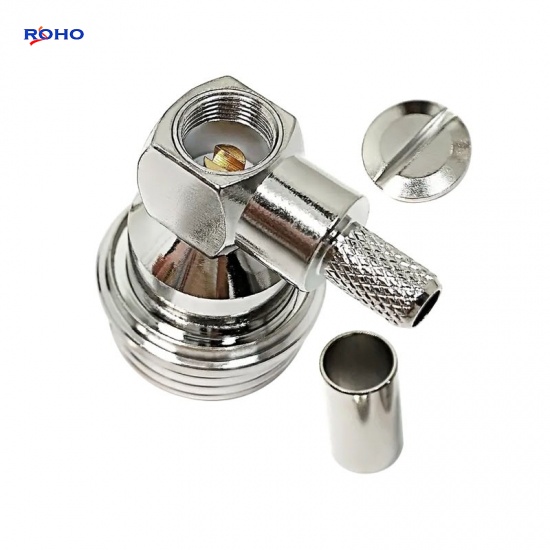

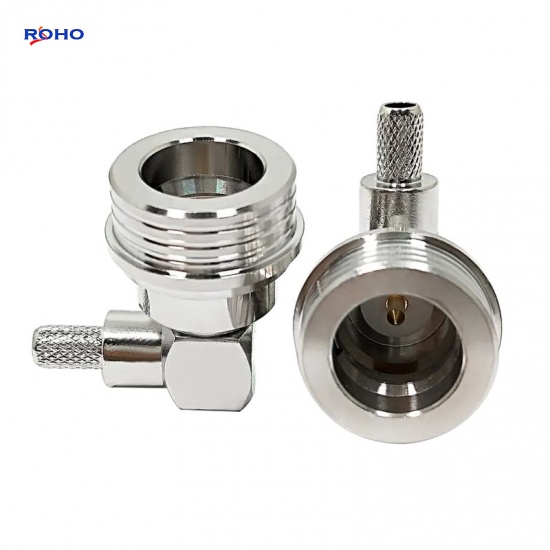

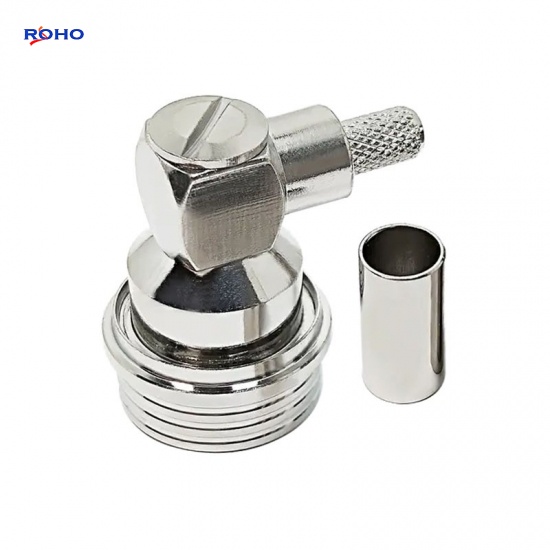

QN Male Right Angle Connector Crimp Solder Attachment for RG55 RG141 RG142 RG223 RG400 Coaxial Cable

Qn Connector Features:

  • Snap-on interface for quick and easy installation;
  • Rotatable 360° after connection for flexibility with installation;
  • Operates at the same electrical performance as the N-Type up to 11 GHz;
  • OEM & ODM available for special design with competitive Factory price.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

QN Male Right Angle Connector Crimp Solder Attachment for RG55 RG141 RG142 RG223 RG400 Coaxial Cable



QN connector is a quick disconnect version of the N-Type connector with similar internal construction, which enables fast and easy matings with minimum space requirements;The innovative alternative to N-Type connectors, the QN line is perfect for indoor and outdoor applications including base stations and cellular installations. These connectors have the same benefits as threaded connectors and can be terminated to larger cables and are designed to handle higher power requirements, frequency max up to 11GHz; this QN male right angle coaxial connector with bulkhead has an interface type of RG55 RG141 RG142 RG223 RG400 and a 50ohm impedance, attachment method uses shield/contact crimp/solder, its straight body is brass with tri-metal plating.



Specifications

ELECTRICAL DATA
Impedance 50 Ohm
Frequency Range 11GHz
Voltage Rating 500 Volts RMS Continuous
Dielectric Withstanding Voltage 2500 VRMS Max
VSWR  (Return Loss)
DC - 3 GHz 1.052 (-32 dB) Max
3 - 6 GHz 1.12 (-25 dB) Max
6 - 11 GHz 1.22 (-20 dB) Max
Insulation Resistance  5000 MΩ Min
Center Contact Resistance 1.5 mΩ Max
Outer Contact Resistance 1.5 mΩ Max
RF Leakage -90 dB Max (DC - 3 GHz)
Insertion Loss .03 √(f(GHz)) dB Max
Power Handling 300 W @ 2.5 GHz @ 25ºC
MECHANICAL DATA
Mating Cycles 100 Min
Coupling Mechanism Push-Pull
Interface Specification Quick Lock Formula - QN
Engagement Force 6.75 lbs (30 N) Typ
Disengagement Force 6.75 lbs (30 N) Type
ENVIRONMENTAL DATA
Temperature Range −40°C to +125°C
MATERIAL DATA
Bodies Brass--ternary alloy plating
Pin contacts Brass--Au/Ag plating
Socket contacts Phosphor bronze / Beryllium copper--Ag plated
Crimp ferrules Copper--ternary alloy plating
Insulator PTFE
Gaskets Silicone rubber



Applications

  • Data Communications
  • Base Stations
  • Switching Equipment
  • Routers
