QN Adaptors

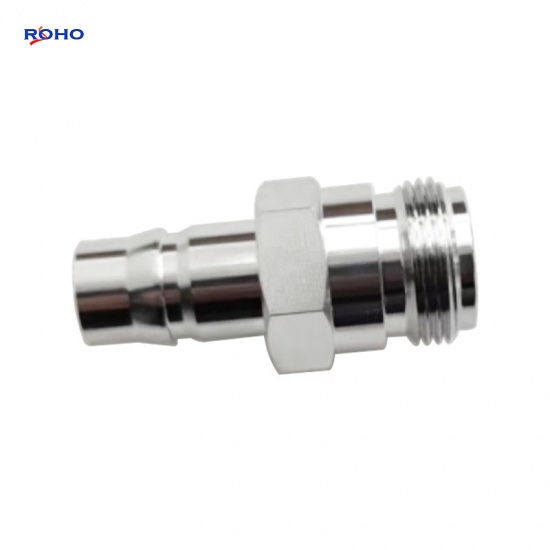

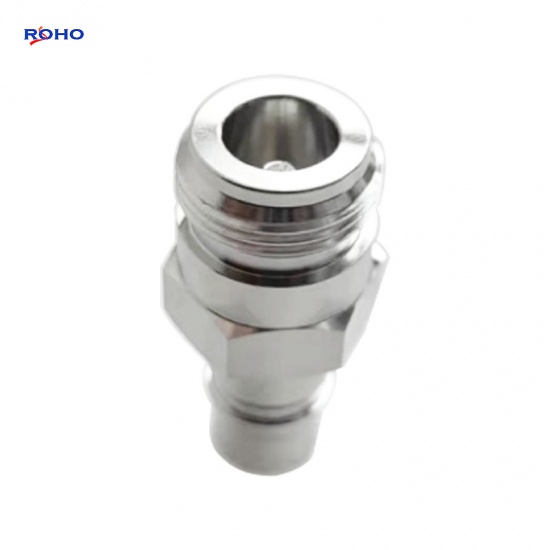

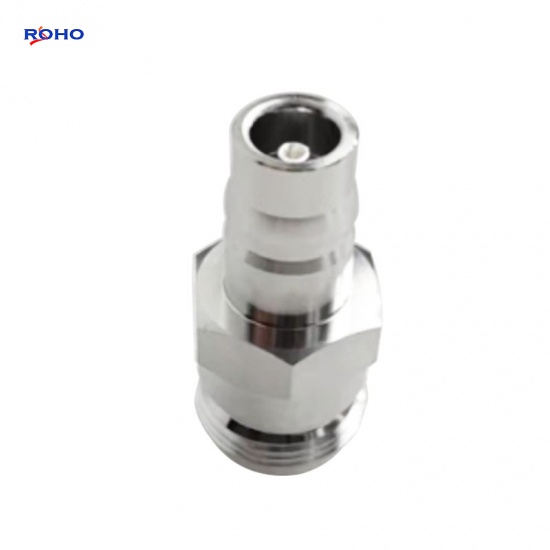

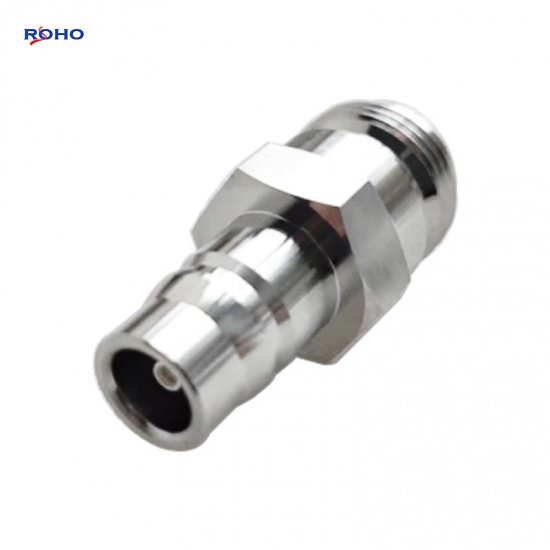

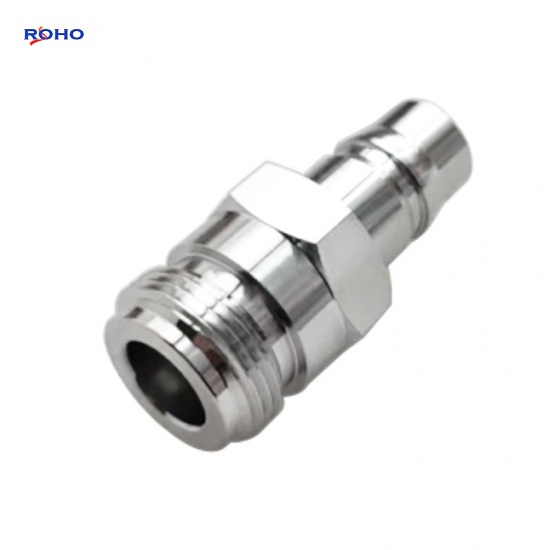

QN Female to N Female RF Coaxial Connector Adapter

N type adapters Features：

Allow to interface QN connectors with N connectors;
Quick disconnect version of the N-Type adapter with similar internal construction;
Innovative alternative to N-Type connectors;
Perfect for indoor and outdoor applications including base stations and cellular installations;
Qn connectors have the same benefits as threaded adapters and can be terminated to larger cables and are designed to handle higher power requirements.

Brand:
ROHO
Product Origin:
China
Shipping Port:
Shenzhen
Lead Time:
7-17days

Inquiry Now

Product Detail

QN Female to N Female RF Coaxial Connector Adapter

The Qn Type Adapter has Qn to N standard polarity adapter gender options. It is a between series coaxial adapter design, The Qn to N adapters has female to male or male to female gender varieties. ROHO offers low PIM or high performance designs.This Qn female to N female adapter has a maximum frequency of 6GHz, and is a straight adapter.

Specifications

ELECTRICAL DATA
Adapter Side 1 Series	QN
Adapter Side 1 Style	Female
Adapter Side 2 Series	N
Adapter Side 2 Style	Female
Frequency (Max GHz)	6
Impedance (Ohms)	50
Low PIM	Yes
Orientation	Straight
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
MATERIAL DATA
Body Material	Brass
Body Finish	Nickel/Ternary alloy
Contact Material	Phosphor Bronze/Beryllium Copper
Contact Finish	Gold/Silver
Insulator Material	PTFE

Applications

Satellite systems
Base stations
Wireless LAN
Broadcast systems
Radar equipment
Surge protection
Microwave Radio
Outdoor antennas
