Straight Qn Female to N Male RF Coaxial Connector Adapter

N type adapters Features:

  • Allow to interface QN connectors with N connectors;
  • Quick disconnect version of the N-Type adapter with similar internal construction;
  • Innovative alternative to N-Type connectors;
  • Perfect for indoor and outdoor applications including base stations and cellular installations;
  • Qn connectors have the same benefits as threaded adapters and can be terminated to larger cables and are designed to handle higher power requirements.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

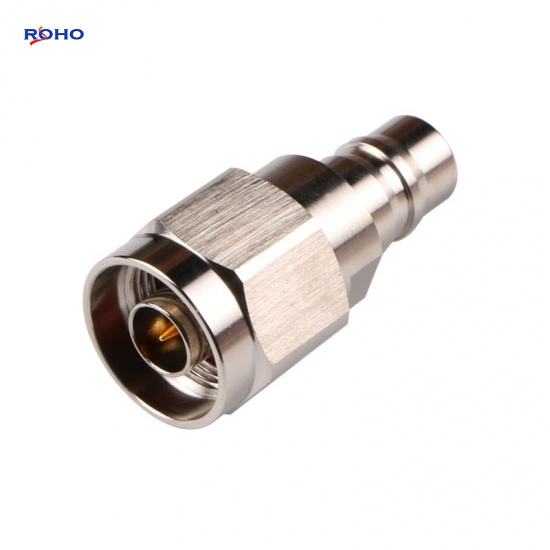

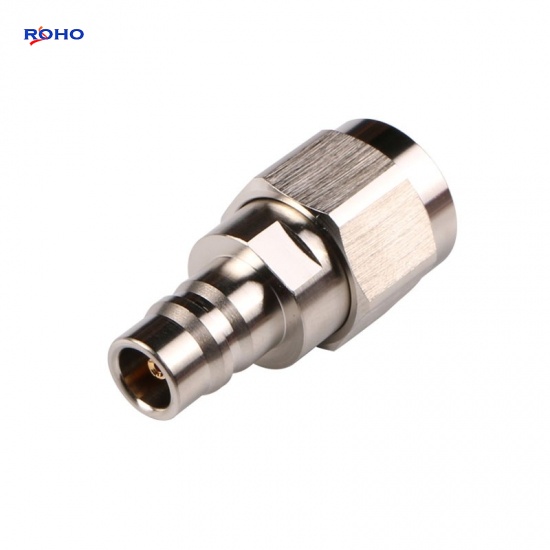

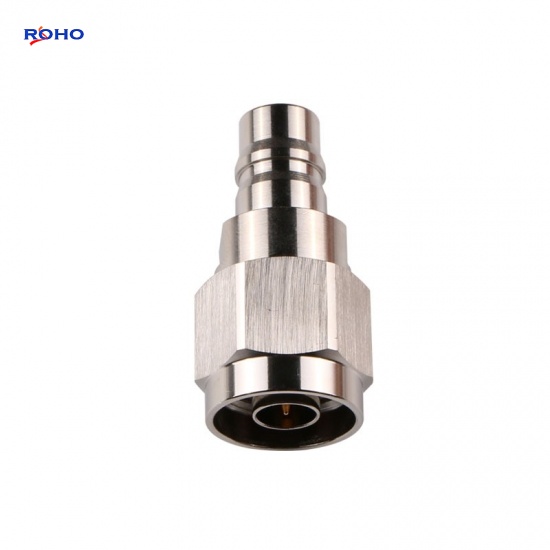

Straight Qn Female to N Male RF Coaxial Connector Adapter



The Qn Type Adapter has Qn to N standard polarity adapter gender options. It is a between series coaxial adapter design, The Qn to N adapters has female to male or male to female gender varieties. ROHO offers low PIM or high performance designs.This Qn female to N male adapter has a maximum frequency of 6GHz, and is a straight adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series QN
Adapter Side 1 Style Female
Adapter Side 2 Series N
Adapter Side 2 Style Male
Frequency (Max GHz) 6
Impedance (Ohms) 50
Low PIM Yes
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material PTFE



Applications

  • Satellite systems
  • Base stations
  • Wireless LAN
  • Broadcast systems
  • Radar equipment
  • Surge protection
  • Microwave Radio
  • Outdoor antennas
