DIN 7-16 Cable Assemblies

RA DIN 7-16 Male to RF Coaxial MINI DIN 4.3-10 Male With 1/2 Superflexible Cable Assembly

7-16 DIN Cable assembly Features:

  • Can be combined with 4.3-10, 7-16 DIN, BNC, N, NEX10, QMA or SMA connector;
  • Body Can be 4 hole panel, bulkhead or standard mount connectors;
  • Body Can be right angle or straight connectors;
  • Cable Can use corrugated, flexible, formable or semirigid cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

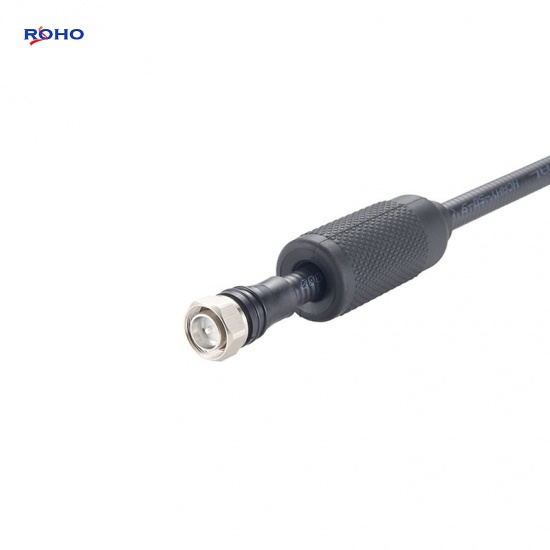

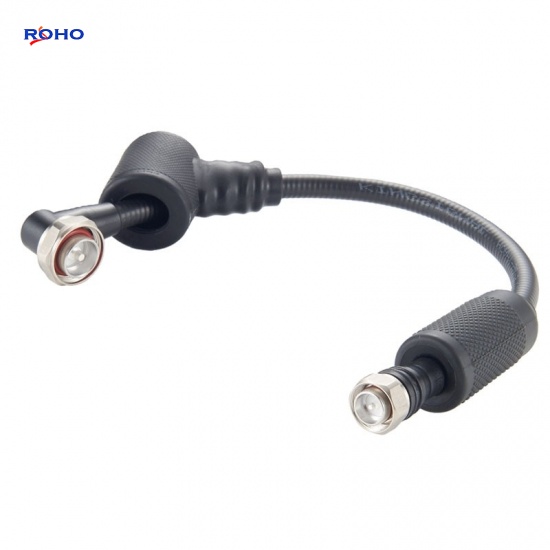

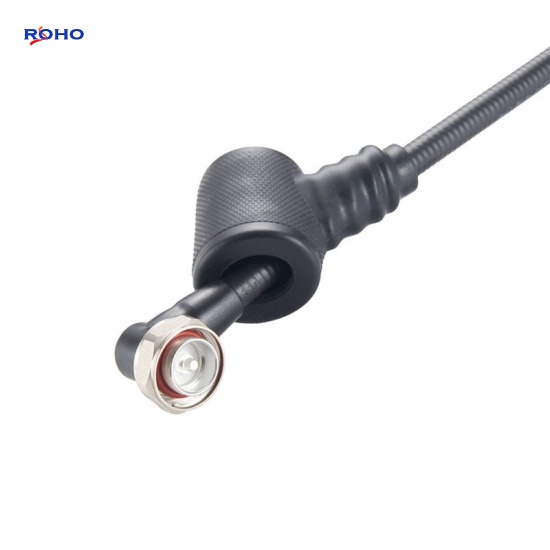

RA DIN 7-16 Male to RF Coaxial MINI DIN 4.3-10 Male With 1/2 Superflexible Cable Assembly



The 7-16 DIN cable assembly can use flexible or corrugated coaxial cable such as TFT402, LMR-240 and 1/4" Superflexible; the body of 7-16 DIN to 4.3-10 cable assembly is right angle or straight connectors which is female to female, female to male, male to female or male to male gender. ROHO's 7-16 DIN to 4.3-10 cable assembly is a low PIM cable. This 7-16 DIN male to 4.3-10 male cable assembly uses a 50ohm right angle 7-16 DIN for connector 1 and a 50ohm Straight 4.3-10 for connector 2, Cable is 50ohm 1/2 Super flexible.



Specifications

ELECTRICAL DATA
Connector 1 Series 7-16 DIN
Connector 1 Style RA Male
Cable Type 1/2 Super flexible
Connector 2 Series 4.3-10
Connector 2 Style Straight Male
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM Yes
Max Frequency 6 GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Multi-Carrier Communication Systems
  • Low PIM Applications
  • Distributed Antennas Systems (DAS)
  • Outdoor Installations
