DIN 7-16 Cable Assemblies

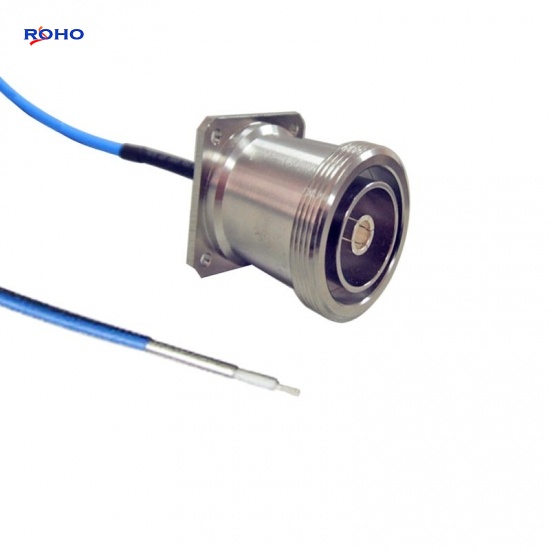

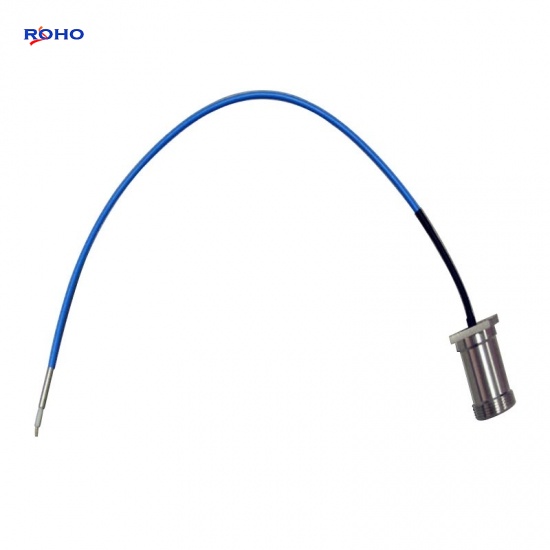

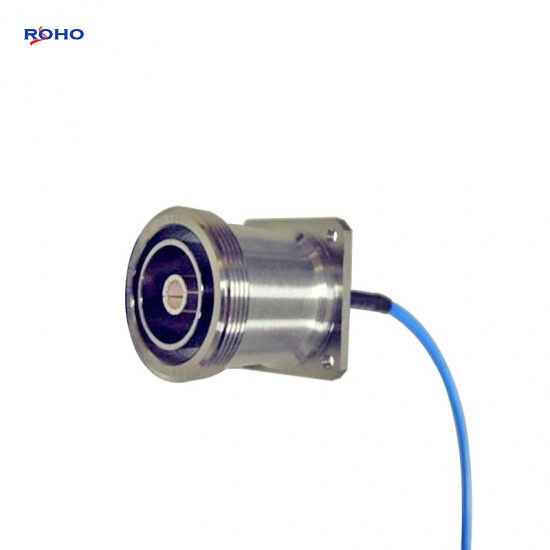

RF Coaxial 7-16 DIN Female 4 Hole Flange Connector with .086" Cable Assembly

7-16 DIN Cable assembly Features:

  • Can be combined with 4.3-10, 7-16 DIN, BNC, N, NEX10, QMA or SMA connector;
  • Body Can be 4 hole panel, bulkhead or standard mount connectors;
  • Body Can be right angle or straight connectors;
  • Cable Can use corrugated, flexible, formable or semirigid cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

RF Coaxial 7-16 DIN Female 4 Hole Flange Connector with .086" Cable Assembly



The 7-16 DIN with cable assembly can use flexible or corrugated coaxial cable such as TFT402, LMR-240 and 1/4" Superflexible; the body of 7-16 DIN with cable assembly is right angle or straight connectors which is female with cable or male with cable. ROHO's 7-16 DIN with cable assembly is a low PIM cable. This 7-16 DIN male to N male cable assembly uses a 50ohm straight 7-16 DIN for connector 1 and a 50ohm Straight 7-16 DIN type for connector 2, Cable is 50ohm .086".



Specifications

ELECTRICAL DATA
Connector 1 Series 7-16 DIN
Connector 1 Style Str Female
Cable Type .086" Cable
Connector 2 Series -
Connector 2 Style -
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM Yes
Max Frequency 6 GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Multi-Carrier Communication Systems
  • Low PIM Applications
  • Distributed Antennas Systems (DAS)
  • Outdoor Installations
