TNC Cable Assemblies

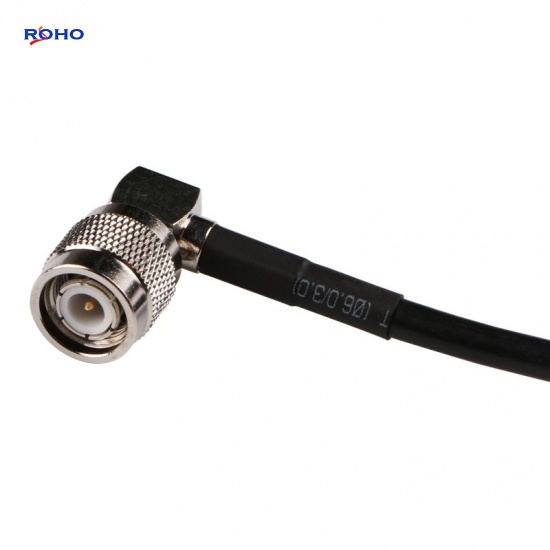

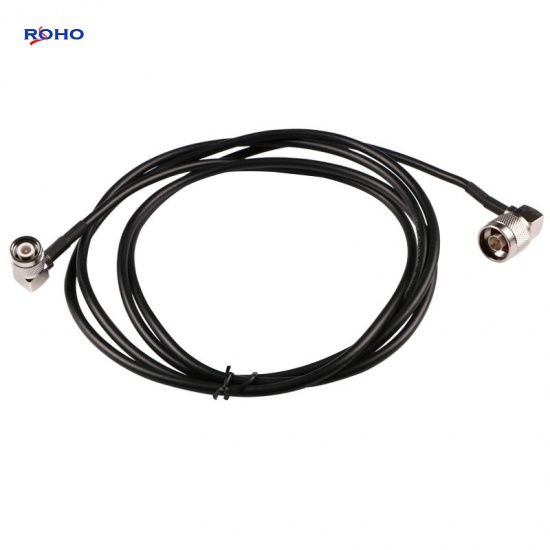

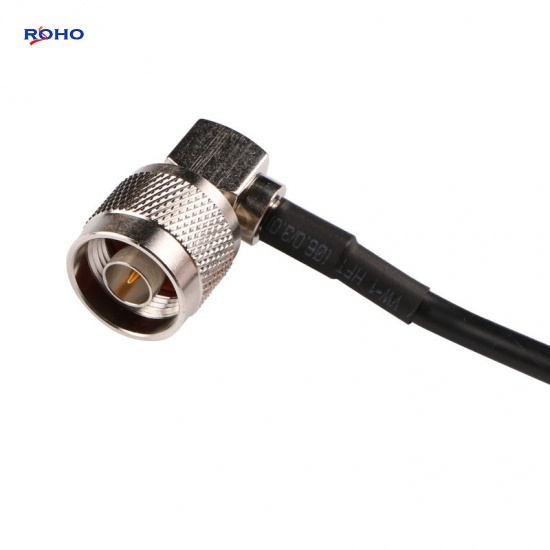

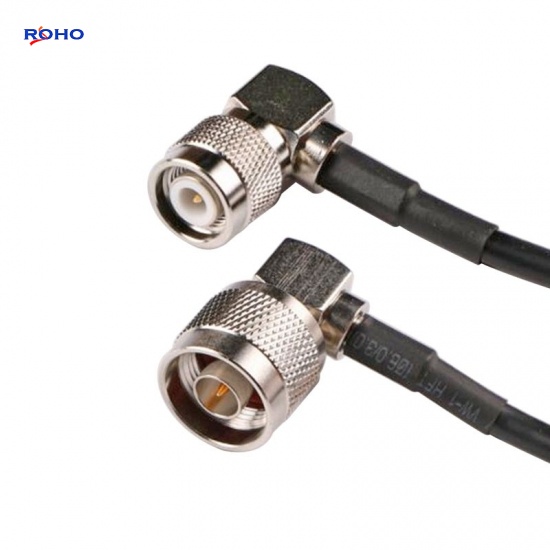

RA TNC Male to RA N Male Connector With LMR195 Cable Assembly

TNC Cable assembly Features:

  • Can be combined with BNC, FAKRA, MCX, MMCX, N, SMA, SMB or TNC connector;
  • Body Can be right angle or straight connectors;
  • Max Frequency 18 GHz;
  • Cable Can use flexible, formable or semirigid cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

RA TNC Male to RA N Male Connector With LMR195 Cable Assembly



The TNC cable assembly can use flexible, formable or semirigid coaxial cable such as LMR195、LMR240、LMR400、RG142、RG174、RG178、RG188、RG213、RG214、RG223、RG316、RG393、RG400、RG401、RG402、RG58、RG8; the body of TNC to N cable assembly is right angle or straight connectors which is female to female, female to male, male to female or male to male gender. This TNC male to N male cable assembly uses a 50ohm right angle TNC for connector 1 and a 50ohm right angle N for connector 2, Cable is a 50ohm flexible LMR195.



Specifications

ELECTRICAL DATA
Connector 1 Series TNC
Connector 1 Style RA Male
Cable Type LMR195
Connector 2 Series N
Connector 2 Style RA Plug
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM Yes
Max Frequency 18 GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Automated Test Systems
  • Airborne Systems
  • Phased Arrays
  • EW and Countermeasures
