TNC Cable Assemblies

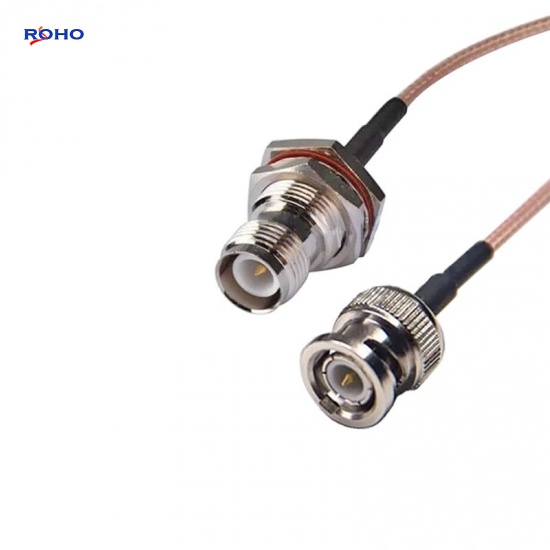

RP TNC Female to BNC Male Connector Cable Assembly with RG316 Jumper Cable

TNC Cable assembly Features:

  • Can be combined with BNC, FAKRA, MCX, MMCX, N, SMA, SMB or TNC connector;
  • Body Can be right angle or straight connectors;
  • Max Frequency 18 GHz;
  • Cable Can use flexible, formable or semirigid cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

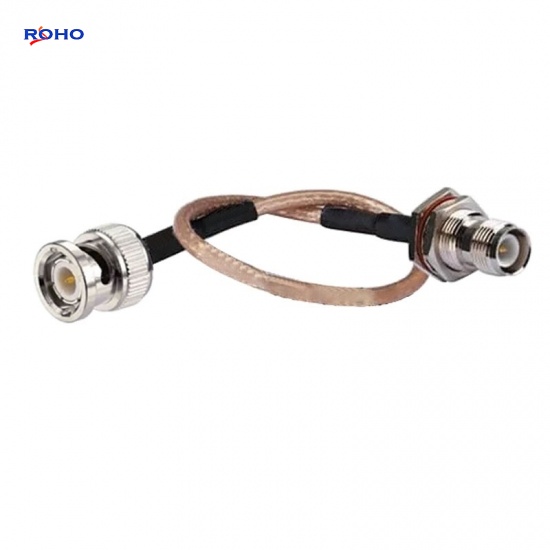

RP TNC Female to BNC Male Connector Cable Assembly with RG316 Jumper Cable



The TNC cable assembly can use flexible, formable or semirigid coaxial cable such as LMR195、LMR240、LMR400、RG142、RG174、RG178、RG188、RG213、RG214、RG223、RG316、RG393、RG400、RG401、RG402、RG58、RG8; the body of TNC to BNC cable assembly is right angle or straight connectors which is female to female, female to male, male to female or male to male gender. This RP TNC female to BNC male cable assembly uses a 50ohm straight TNC for connector 1 and a 50ohm straight BNC for connector 2, Cable is a 50ohm flexible RG316.



Specifications

ELECTRICAL DATA
Connector 1 Series RP TNC
Connector 1 Style Str Female
Cable Type RG316
Connector 2 Series BNC
Connector 2 Style Str Male
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM Yes
Max Frequency 3GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Automated Test Systems
  • Airborne Systems
  • Phased Arrays
  • EW and Countermeasures
