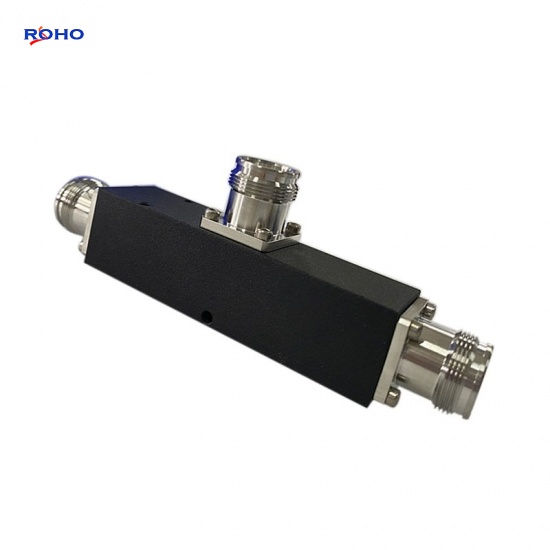

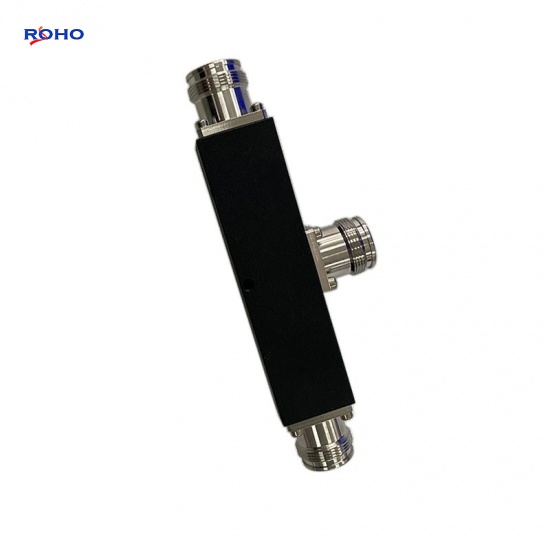

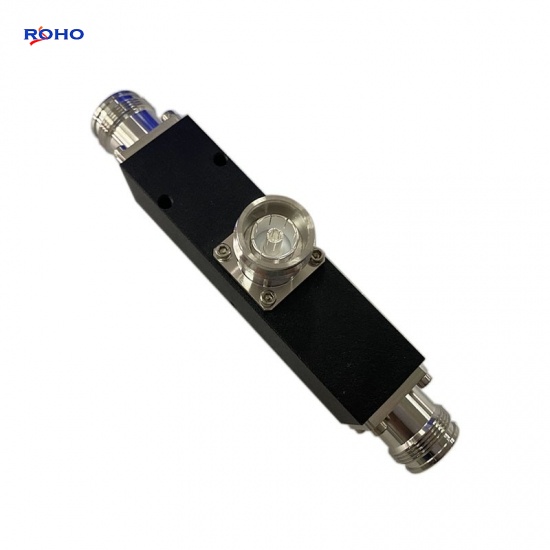

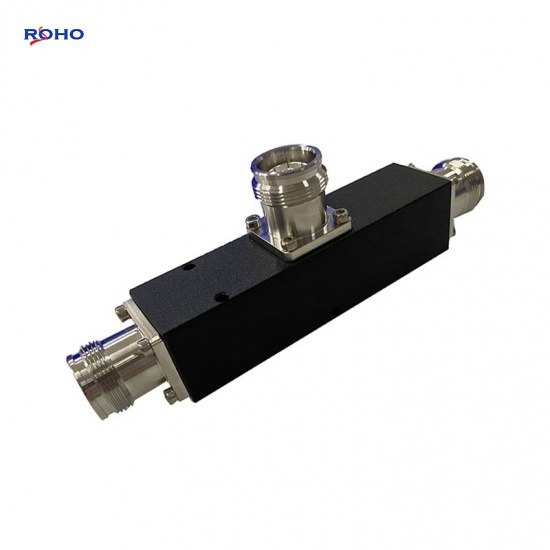

RF Power Tapper Low PIM 300W 698-3800MHz 4.3-10 Female used for IBS DAS
The RF Power Tapper is a device used to split an input signal into two parts, The ratio in which the signals are split is called theSplit Ratio - This usually varies from 1:2 to 1:10000 -Depending on the application and power level, In theory, RF signal tappers are very similar to directional couplers, All specifications ROHO can be customized; RF power tapper are designed for use in applications of indoor antenna and radiating cable systems. These broadband power taps feature low insertion loss and excellent impedance match. Careful and conservative mechanical designs assure a long service life with high reliability and stability.
Specifications
|
Frequency Range
|
698-3800MHz
|
||||
|
Coupling
|
6dB
|
8dB
|
10dB
|
15dB
|
20dB
|
|
Accuracy
|
±1.0
|
±1.0
|
±1.0
|
±1.25
|
±1.5
|
|
Split Ratio
|
4:1
|
6:1
|
10:1
|
30:1
|
100:1
|
|
Insertion Loss
|
≤1.75dB
|
≤1.4dB
|
≤0.8dB
|
≤0.45dB
|
≤0.4dB
|
|
VSWR
|
≤1.25 typ. (1.35 max)
|
||||
|
Power Handling
|
200W
|
||||
|
PIM
|
≤-160dBc@2x43dBm inputs
|
||||
|
Impedance
|
50Ω
|
||||
|
Connector
|
4.3-10 Female
|
||||
|
Operating Temperature
|
-35 to +75°C
|
||||
|
Application
|
Indoor & Outdoor
|
||||
|
Housing Material
|
Aluminum
|
||||
|
Connector Treatment
|
Tri alloy
|
||||
|
Operating Humidity
|
5%-95%
|
||||
|
Mounting
|
Wall Mount
|
||||
|
Waterproof grade
|
IP65
|
||||
Applications
- Mobile Communication Network Optimization and Indoor distribution system.
- Cluster Communication, Satellite Communication, Shortwave Communication and Hopping Radio.
- Radar, Electronic Navagation and Electronic Confrontation.
- Aerospace Equipment systems.
