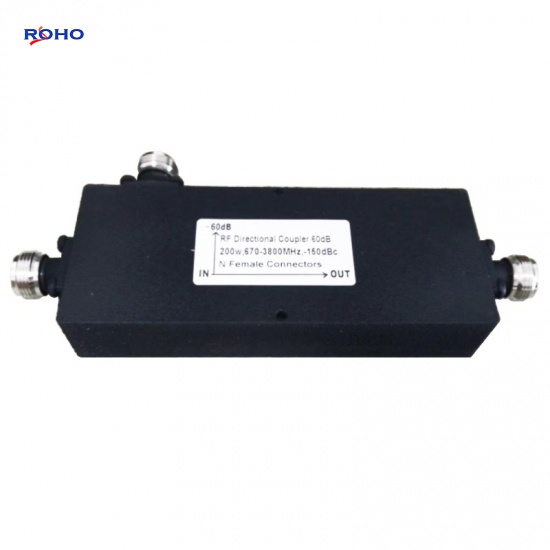

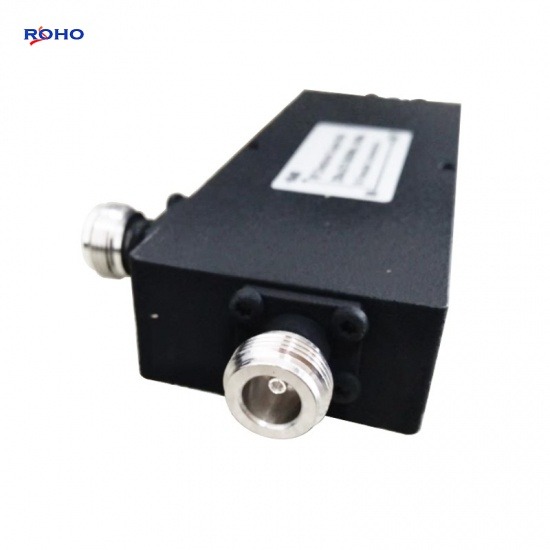

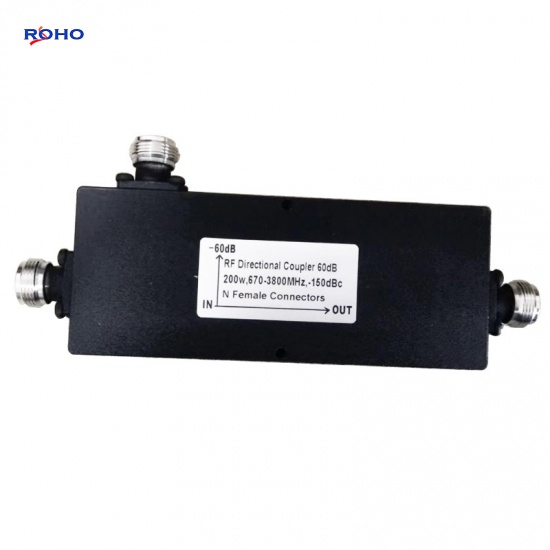

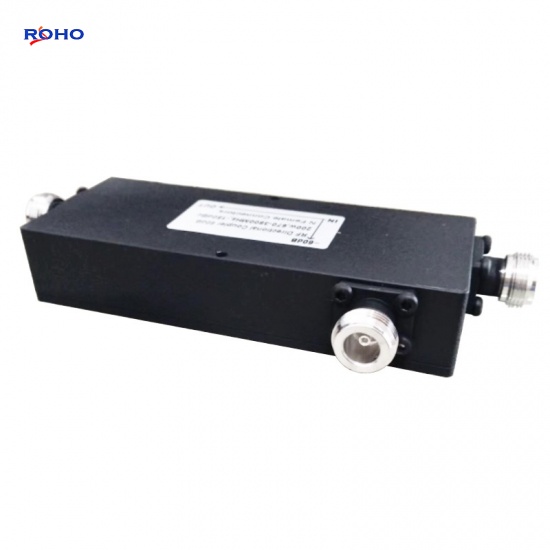

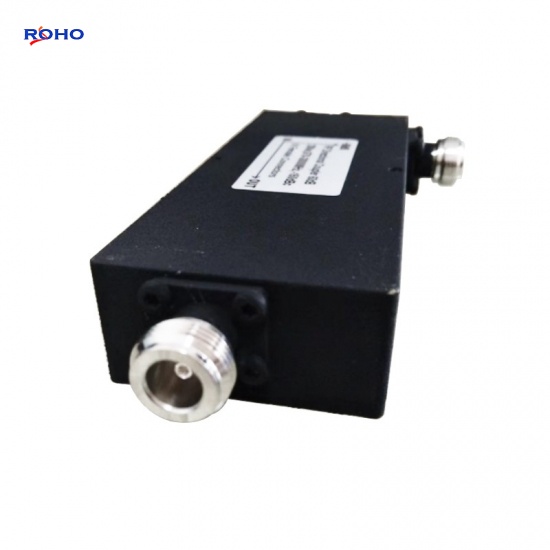

60dB 200W 670-3800MHz 150dBc RF Directional Coupler with N Female Connector

60dB 200W 670-3800MHz 150dBc RF Directional Coupler with N Female Connector

    RF couplers are available in directional couplers, dual directional couplers, hybrid coupler and unequal split power tappers product designs, Couplers can be disign in N or SMA configurations, unequal RF tappers are available with 7/16 and Type N connector models, directional couplers come in N or SMA, while dual directional couplers and hybrids are available in SMA only. Power ratings RF and microwave couplers range from 10 Watts to 70 Watts and power tappers handle high power up to 300 watts depending on style. Frequency ratings for coaxial couplers range from 1GHz to 8GHz, unequal RF tappers are more wide band with 380MHz to 6GHz based on model selected. RF couplers can be ordered with various directivity (dB) from 3dB, 6dB, 10dB, 16dB, 20dB, 25dB, 30dB, 35dB, 40dB, 50dB and 60 dB, while RF unequal tappers have 4.8dB, 5dB, 6dB, 7dB, 8dB, 9dB, 10dB, 11dB, 12dB, 13dB, 15dB, 16dB, 20dB, 30dB, 25dB, 30dB, 35dB, 40dB, 50dB, 60dB depending on model. All specifications ROHO can be customized; This RF directional coupler is manufactured with type N ports, The directional coupler design uses type N ports that are female gender and 50ohm impedance, and design is rated for a minimum frequency of 670MHz and a maximum frequency of 3.8GHz.

Specifications

Applications

• Mobile Communication Network Optimization and Indoor distribution system.
• Cluster Communication, Satellite Communication, Shortwave Communication and Hopping Radio.
• Radar, Electronic Navagation and Electronic Confrontation.
• Aerospace Equipment systems.
