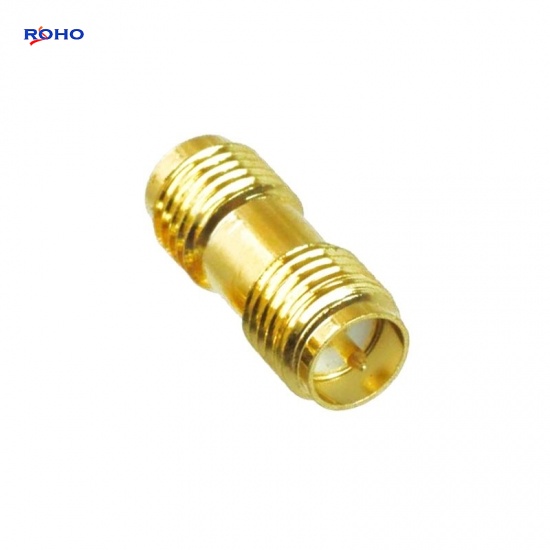

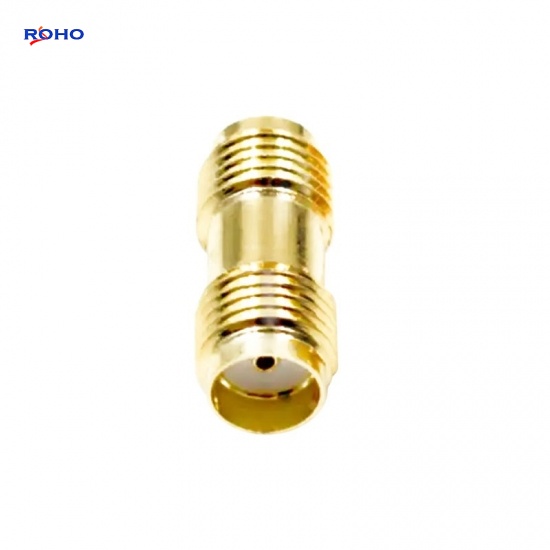

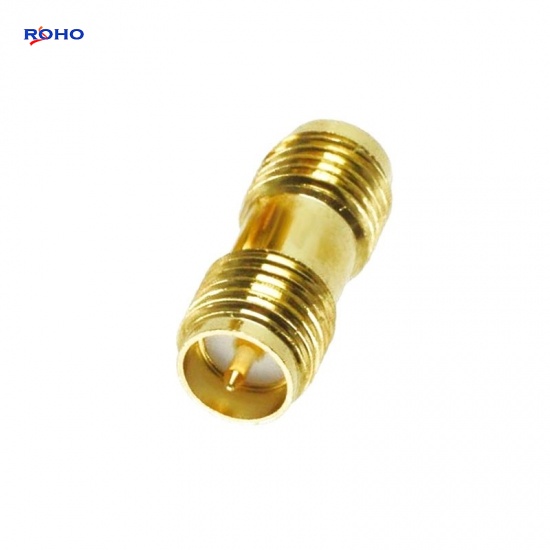

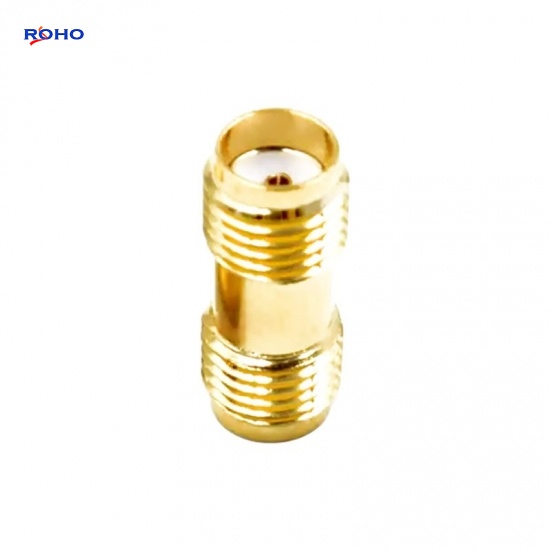

RP SMA Female to RP SMA Female RF Coaxial Connector Adapter
The RP SMA Adapter has different RP SMA to RP SMA adapter gender. that is a in-series coaxial adapter, The RP SMA to RP SMA adapters has female to female, male to female or male to male gender. This RP SMA female to RP SMA female adapter has a maximum frequency of 18GHz, and is a straight body adapter.
Specifications
ELECTRICAL DATA | |
Adapter Side 1 Series | RP SMA |
Adapter Side 1 Style | Female |
Adapter Side 2 Series | RP SMA |
Adapter Side 2 Style | Female |
Frequency (Max GHz) | 6 |
Impedance (Ohms) | 50 |
Low PIM | No |
Orientation | Straight |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
MATERIAL DATA | |
Body Material |
Brass |
Body Finish |
Nickel/Ternary alloy |
Contact Material |
Phosphor Bronze/Beryllium Copper |
Contact Finish |
Gold/Silver |
Insulator Material | PTFE |
Applications
- 5G Solutions
- Measurement Systems
- Civil & Military Aeronautics
- Microwave Systems Telecommunications
- Mobile Telephone WiFi Antennas Systems
- Military Equipment, Space
