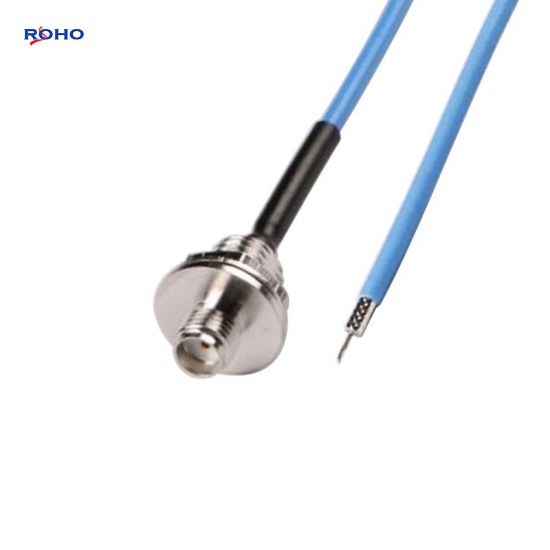

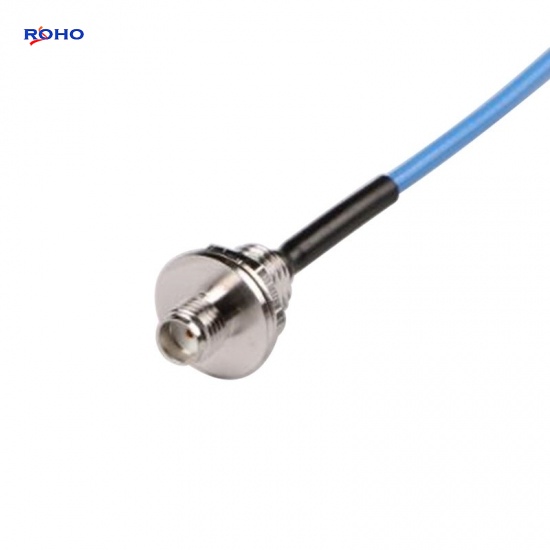

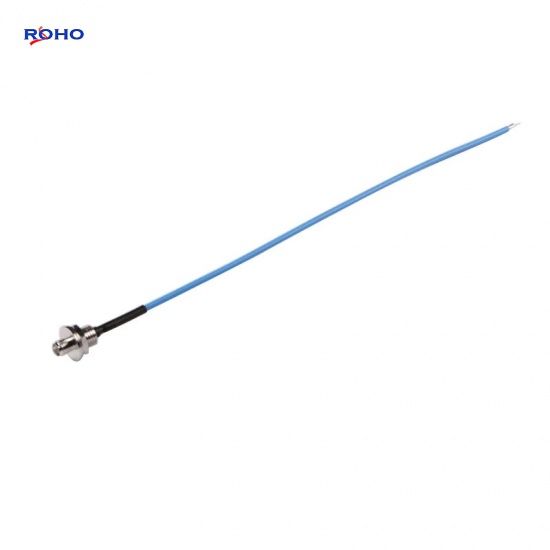

SMA Female Connector Cable Assembly with Super Flexible RG402 Cable

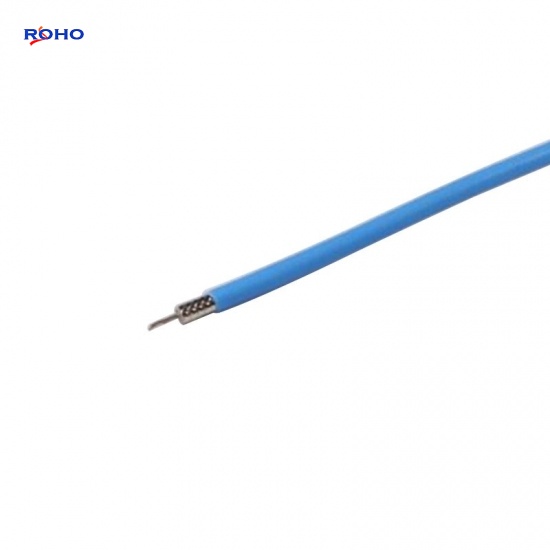

The SMA cable assembly can use corrugated, flexible, formable or semirigid coaxial cablesuch as 0.81mm, 1.13mm, 1.37mm, 1/4" Superflexible, LMR100, LMR-195, LMR200, LMR-240, LMR400, RG141, RG142, RG174, RG178, RG179, RG180, RG187, RG188, RG196, RG213, RG214, RG223, RG303, RG316, RG393, RG400, RG401, RG402, RG405, RG55, RG58, RG59, RG62, RG8, TFT-402 or Tinned 047 cable; the body of SMA to Pre-Trimmed Lead cable assembly is right angle or straight connectors which is female to sexless or male to sexless gender. This SMA female to Pre-Trimmed Lead sexless cable assembly uses a 50ohm Straight SMA for connector 1 and a 50ohm Pre-Trimmed Lead for connector 2, Cable is 50ohm RG402.
Specifications
ELECTRICAL DATA | |
Connector 1 Series | SMA |
Connector 1 Style | Str Female |
Cable Type | RG402 |
Connector 2 Series | Trimmed Lead |
Connector 2 Style | sexless |
Contact Termination | Solder |
Shield Termination | Crimp |
Impedance (Ohms) | 50 |
Low PIM | No |
Max Frequency | 6GHz |
Working Temperature | -65°C to +165°C |
MATERIAL DATA | |
Body Material |
Brass |
Body Finish |
Nickel/Ternary alloy |
Contact Material |
Phosphor Bronze/Beryllium Copper |
Contact Finish |
Gold/Silver |
Insulator Material | PTFE |
Applications
- Used as an RF Test Probe to 6 GHz
- RF PCB board measurements
- Signal injection
