SMA Cable Assemblies

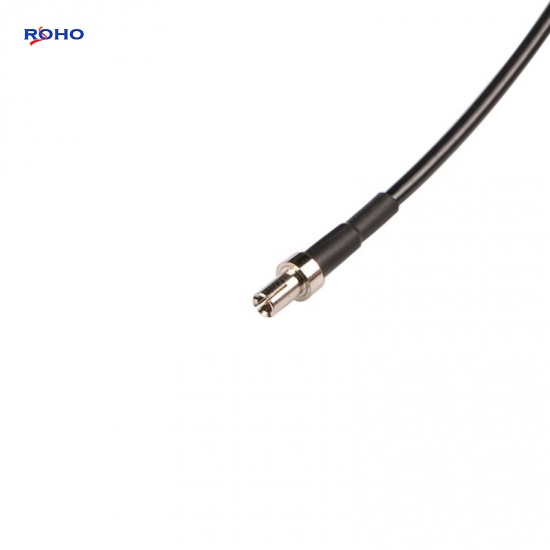

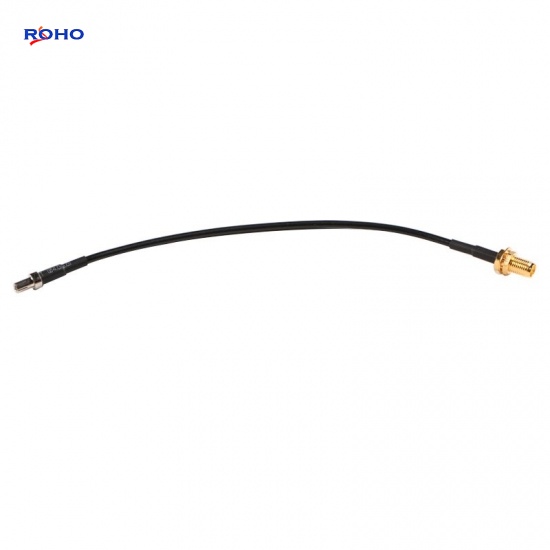

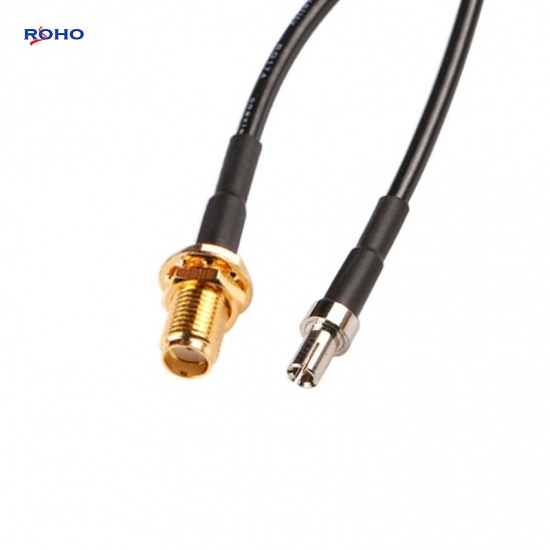

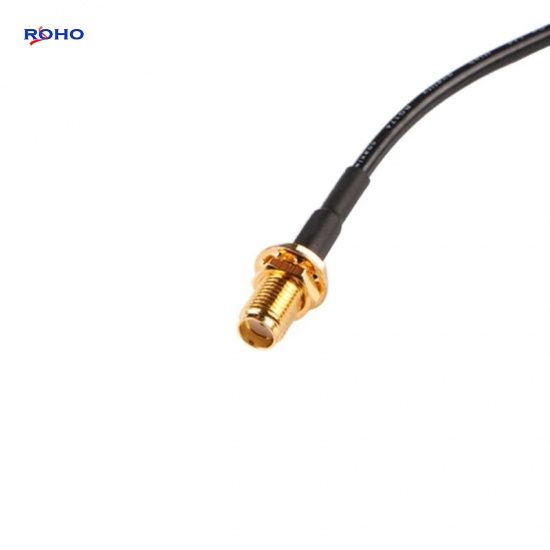

Straight SMA Female Bulkhead to CRC9 Male RF Coaxial Connector Cable Assembly with RG174 Cable

SMA Cable assembly Features:

  • Can be combined with 1.85mm, 2.4mm, 2.92mm, 3.5mm, 4.3-10, 7-16 DIN, BNC, FAKRA, MCX, MMCX, N, NEX10, QMA, QN, SMA, SMB, SMP, TNC, Trimmed Lead or U.FL connectors;
  • Body Can be 2 hole panel, 4 hole panel, bulkhead or standard mount connectors;
  • Body Can be right angle or straight connectors;
  • Cable Can use corrugated, flexible, formable or semirigid cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

Straight SMA Female Bulkhead to CRC9 Male RF Coaxial Connector Cable Assembly with RG174 Cable



The SMA cable assembly can use corrugated, flexible, formable or semirigid coaxial cablesuch as 0.81mm, 1.13mm, 1.37mm, 1/4" Superflexible, LMR100, LMR-195, LMR200, LMR-240, LMR400, RG141, RG142, RG174, RG178, RG179, RG180, RG187, RG188, RG196, RG213, RG214, RG223, RG303, RG316, RG393, RG400, RG401, RG402, RG405, RG55, RG58, RG59, RG62, RG8, TFT-402 or Tinned 047 cable; the body of SMA to CRC9 cable assembly is right angle or straight connectors which is female to female, female to male, male to female or male to male gender. This SMA female to CRC9 male cable assembly uses a 50ohm straight SMA for connector 1 and a 50ohm straight CRC9 for connector 2, Cable is 50ohm RG174.



Specifications

ELECTRICAL DATA
Connector 1 Series SMA
Connector 1 Style Str Female
Cable Type RG174
Connector 2 Series CRC9
Connector 2 Style Str Male
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM No
Max Frequency 3GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material PTFE



Applications

  • Used as an RF Test Probe to 6 GHz
  • RF PCB board measurements
  • Signal injection
