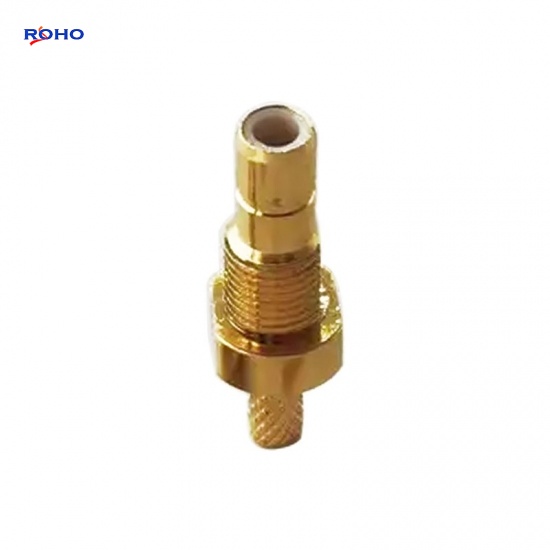

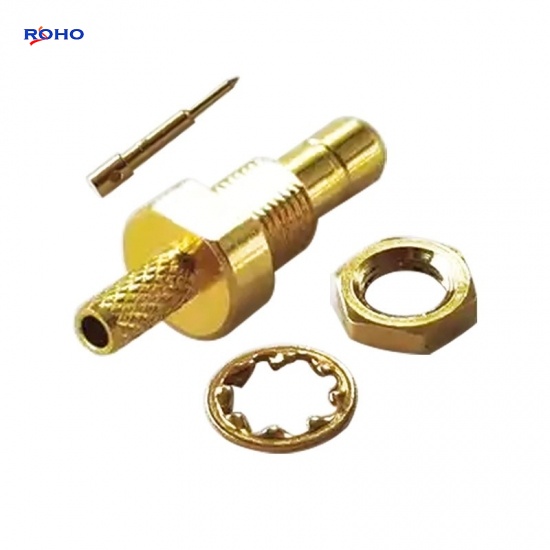

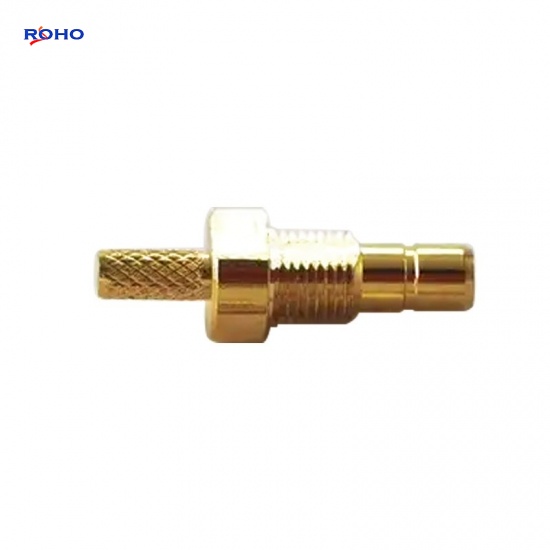

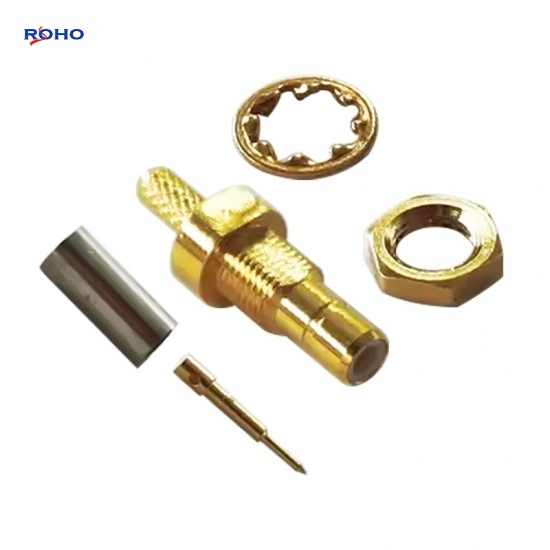

SMB Jack Male Bulkhead Mount Connector Crimp Solder Attachment for RG316 Cable
The SMB connectors offer broadband performance with low reflection DC to 4 GHz and extended performance up to 10 GHz.The SMB interface features a snap-on coupling mechanism and is available in 50 and 75 ohm configurations; SMB connectors are available in various materials including an option for die cast components on non-critical areas to provide a low-cost solution; this SMB male coaxial connector has an interface type of RG316 Cable and a 50ohm impedance, attachment method uses shield/contact crimp/solder, its straight body is brass with gold plating.
Specifications
ELECTRICAL DATA | |
Impedance | 50Ω |
Frequency Range | 4GHz (DC - 10 GHz on Extended Range Designs) |
Working Voltage | 250-335V,50Hz(sea level) |
Withstand Voltage | ≥750,50Hz |
Insulation Resistance | ≥1000mΩ |
Contact Resistance | Inner conductor: ≤5mΩ |
Outer conductor: ≤2.5mΩ | |
RF leakage | ≥55dB |
MECHANICAL DATA | |
Engagement force | 8N--63N / 1.8 lbs--14.2lbs |
Disengagement force | 8N--63N / 1.8 lbs--14.2lbs |
Contact captivation | ≥18N / 4.0 lbs |
Durability (matings) | ≥500 |
ENVIRONMENTAL DATA | |
Temperature range | -65°C to +165°C |
MATERIAL DATA | |
Bodies | Brass--Au plating / ternary alloy plating |
Pin contacts | Brass/Beryllium copper--Au plating |
Socket contacts | Beryllium copper / Phosphor bronze--Au plating |
Springs and washers | copper / beryllium alloy--Au plating |
Crimp ferrules | Brass--Au plating |
Insulator | PTFE |
Applications
- Base Stations
- Antennas
- Global Positioning System (GPS)
- Instrumentation
- Radio Boards
- PC/LAN
- Telecommunications
