SMB Cable Assemblies

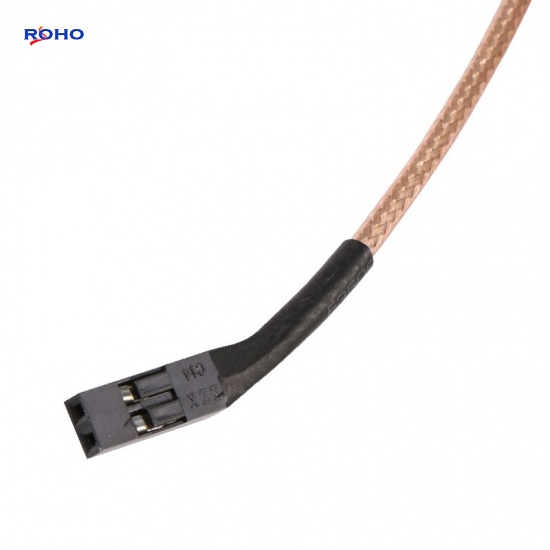

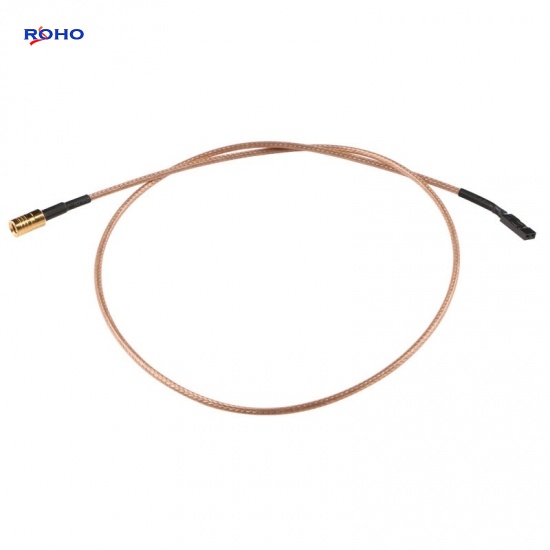

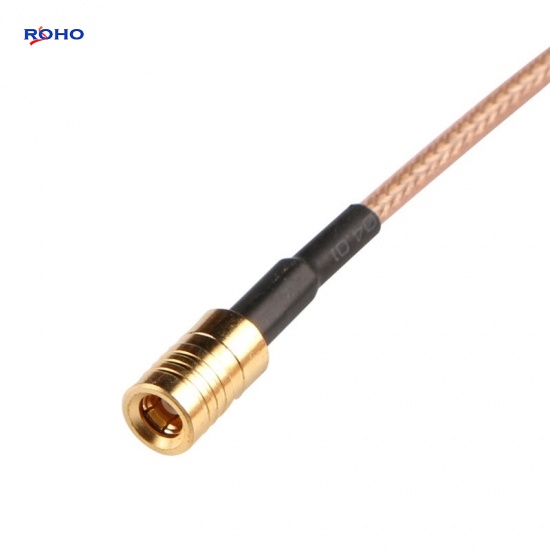

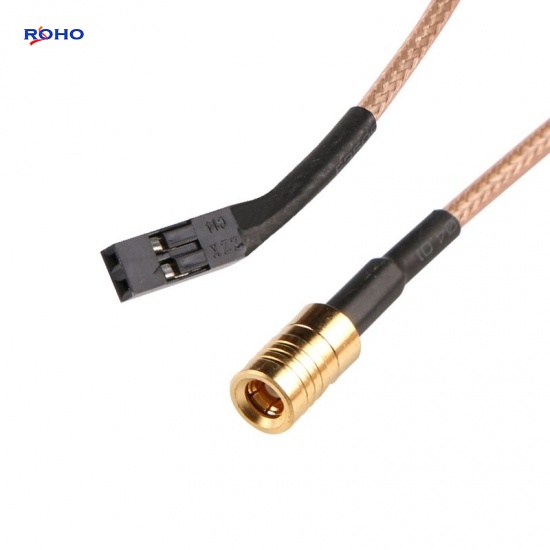

SMB Male RF Connector to PIN With RG316 Cable Assembly

SMB Cable assembly Features:

  • Can be combined with BNC, MMCX, N, SMA, SMB or UHF connector;
  • Body Can be bulkhead or standard mount connectors;
  • Body Can be right angle or straight connectors;
  • Cable Can use flexible, formable or semirigid cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

SMB Male RF Connector to PIN  With RG316 Cable Assembly



The SMB cable assembly can use corrugated, flexible, formable or semirigid coaxial cable such as LMR100, LMR195, RG141, RG142, RG174, RG178, RG179, RG180, RG188, RG196, RG223, RG316, RG400, RG405, RG58 or RG59 cable; the body of SMB to PIN cable assembly is right angle or straight connectors which is plug to pin or jack to pin gender. This SMB male to PIN cable assembly uses a 50ohm Straight SMB for connector 1 and a 50ohm PIN for connector 2, Cable is 50ohm flexible cable type RG316.



Specifications

ELECTRICAL DATA
Connector 1 Series SMB
Connector 1 Style Male
Cable Type RG316
Connector 2 Series Test Pin
Connector 2 Style /
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM NO
Max Frequency 4 GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material Brass
Body Finish Nickel/Ternary alloy
Contact Material Phosphor Bronze/Beryllium Copper
Contact Finish Gold/Silver
Insulator Material PTFE



Applications

  • Antennas
  • Base Stations
  • Radio Boards
  • Global Positioning System (GPS)
  • Instrumentation
  • PC/LAN
