SMB Cable Assemblies

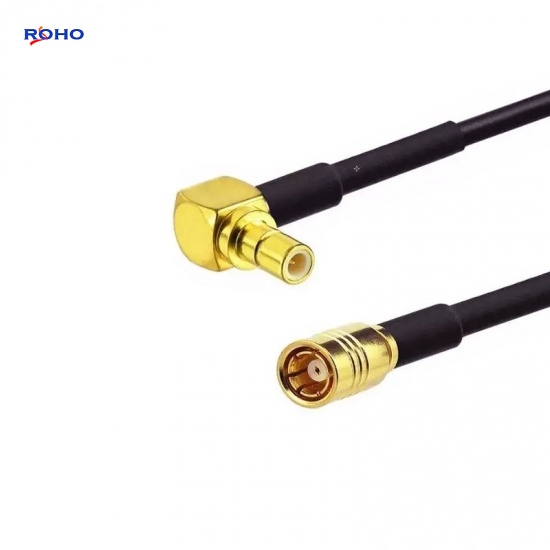

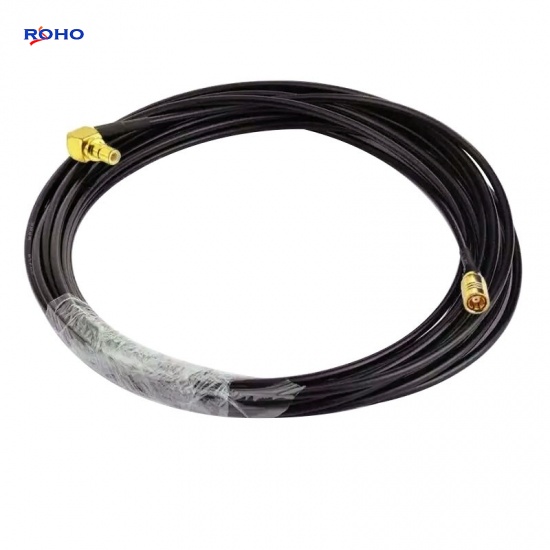

SMB Plug Female Straight to SMB Jack Male Right Angle Connector Assembly with RG174 Jumper Cable

SMB Cable assembly Features:

  • Can be combined with BNC, MMCX, N, SMA, SMB or UHF connector;
  • Body Can be bulkhead or standard mount connectors;
  • Body Can be right angle or straight connectors;
  • Cable Can use flexible, formable or semirigid cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

SMB Plug Female Straight to SMB Jack Male Right Angle Connector Assembly with RG174 Jumper Cable



The SMB cable assembly can use corrugated, flexible, formable or semirigid coaxial cable such as LMR100, LMR195, RG141, RG142, RG174, RG178, RG179, RG180, RG188, RG196, RG223, RG316, RG400, RG405, RG58 or RG59 cable; the body of SMB to SMB cable assembly is right angle or straight connectors which is plug to pin or jack to pin gender. This SMB plug to SMB jack cable assembly uses a 50ohm straight SMB for connector 1 and a 50ohm right angle SMB for connector 2, Cable is 50ohm flexible cable type RG174.



Specifications

ELECTRICAL DATA
Connector 1 Series SMB
Connector 1 Style Str Plug
Cable Type RG174
Connector 2 Series SMB
Connector 2 Style RA Jack
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM No
Max Frequency 4GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material Brass
Body Finish Nickel/Ternary alloy
Contact Material Phosphor Bronze/Beryllium Copper
Contact Finish Gold/Silver
Insulator Material PTFE



Applications

  • Antennas
  • Base Stations
  • Radio Boards
  • Global Positioning System (GPS)
  • Instrumentation
  • PC/LAN



Leave A Message
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Categories
Related Products

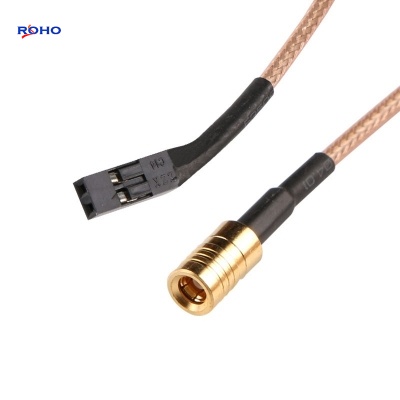

SMB Plug to PIN Cable Assembly
