SMB Cable Assemblies

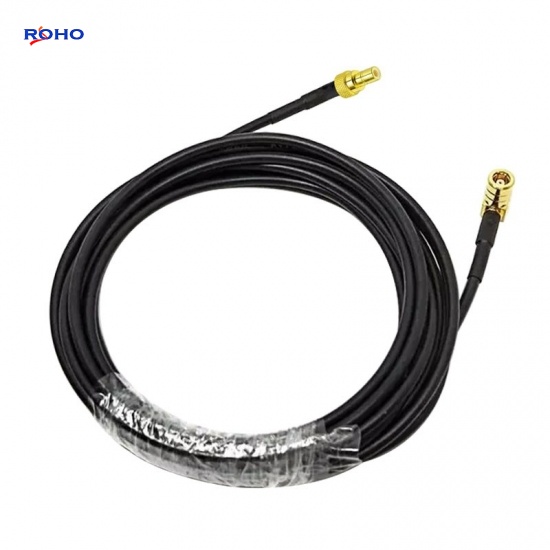

SMB Plug Female Right Angle to SMB Jack Male Connector Assembly with RG174 Jumper Cable

SMB Cable assembly Features:

  • Can be combined with BNC, MMCX, N, SMA, SMB or UHF connector;
  • Body Can be bulkhead or standard mount connectors;
  • Body Can be right angle or straight connectors;
  • Cable Can use flexible, formable or semirigid cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

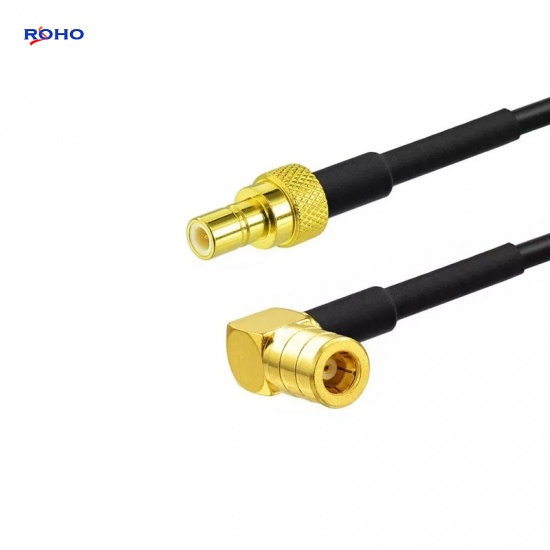

SMB Plug Female Right Angle to SMB Jack Male Connector Assembly with RG174 Jumper Cable



The SMB cable assembly can use corrugated, flexible, formable or semirigid coaxial cable such as LMR100, LMR195, RG141, RG142, RG174, RG178, RG179, RG180, RG188, RG196, RG223, RG316, RG400, RG405, RG58 or RG59 cable; the body of SMB to SMB cable assembly is right angle or straight connectors which is plug to plug, plug to jack or jack to jack gender. This SMB plug to SMB jack cable assembly uses a 50ohm right angle SMB for connector 1 and a 50ohm straight SMB for connector 2, Cable is 50ohm flexible cable type RG174.



Specifications

ELECTRICAL DATA
Connector 1 Series SMB
Connector 1 Style RA Plug
Cable Type RG174
Connector 2 Series SMB
Connector 2 Style Str Jack
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM No
Max Frequency 4GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material Brass
Body Finish Nickel/Ternary alloy/Gold
Contact Material Phosphor Bronze/Beryllium Copper
Contact Finish Gold/Silver
Insulator Material PTFE



Applications

  • Antennas
  • Base Stations
  • Radio Boards
  • Global Positioning System (GPS)
  • Instrumentation
  • PC/LAN
