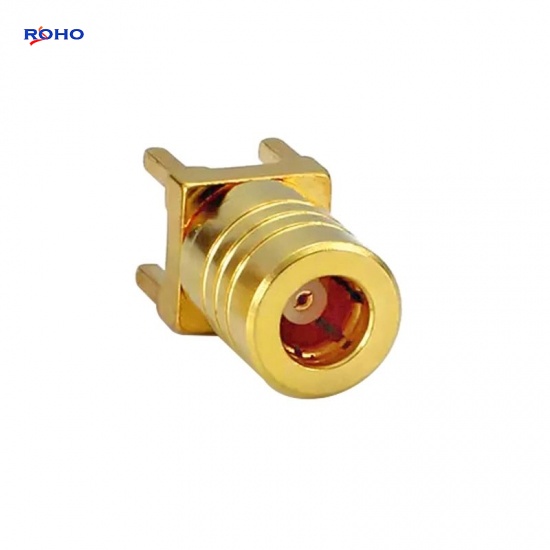

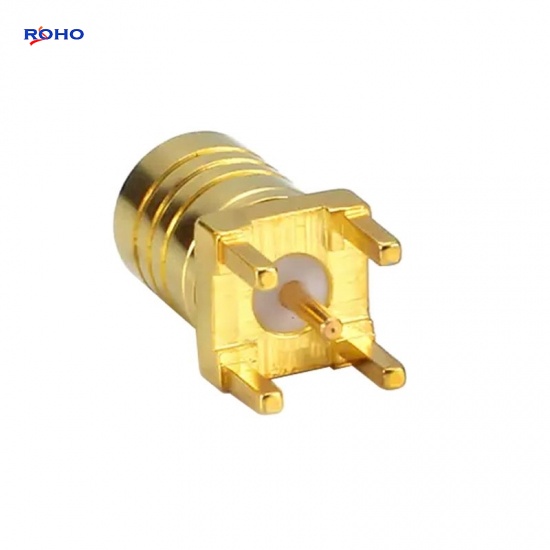

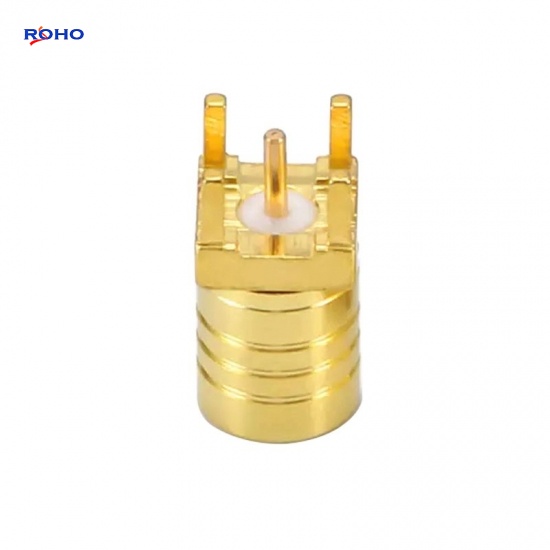

SMB Plug Straight Connector Solder Attachment Thru Hole for PCB
The SMB connectors offer broadband performance with low reflection DC to 4 GHz and extended performance up to 10 GHz.The SMB interface features a snap-on coupling mechanism and is available in 50 and 75 ohm configurations; SMB connectors are available in various materials including an option for die cast components on non-critical areas to provide a low-cost solution; this SMB female PCB connector has an interface type of thru hole and a 50ohm impedance, attachment method uses shield/contact solder, its straight body is brass with gold plating.
Specifications
| ELECTRICAL DATA | |
| Impedance | 50Ω |
| Frequency Range | 4GHz (DC - 10 GHz on Extended Range Designs) |
| Working Voltage | 250-335V,50Hz(sea level) |
| Withstand Voltage | ≥750,50Hz |
| Insulation Resistance | ≥1000mΩ |
| Contact Resistance | Inner conductor: ≤5mΩ |
| Outer conductor: ≤2.5mΩ | |
| RF leakage | ≥55dB |
| MECHANICAL DATA | |
| Engagement force | 8N--63N / 1.8 lbs--14.2lbs |
| Disengagement force | 8N--63N / 1.8 lbs--14.2lbs |
| Contact captivation | ≥18N / 4.0 lbs |
| Durability (matings) | ≥500 |
| ENVIRONMENTAL DATA | |
| Temperature range | -65°C to +165°C |
| MATERIAL DATA | |
| Bodies | Brass--Au plating / ternary alloy plating |
| Pin contacts | Brass/Beryllium copper--Au plating |
| Socket contacts | Beryllium copper / Phosphor bronze--Au plating |
| Springs and washers | copper / beryllium alloy--Au plating |
| Crimp ferrules | Brass--Au plating |
| Insulator | PTFE |
Applications
- Base Stations
- Antennas
- Global Positioning System (GPS)
- Instrumentation
- Radio Boards
- PC/LAN
- Telecommunications
