SMP Cable Assemblies

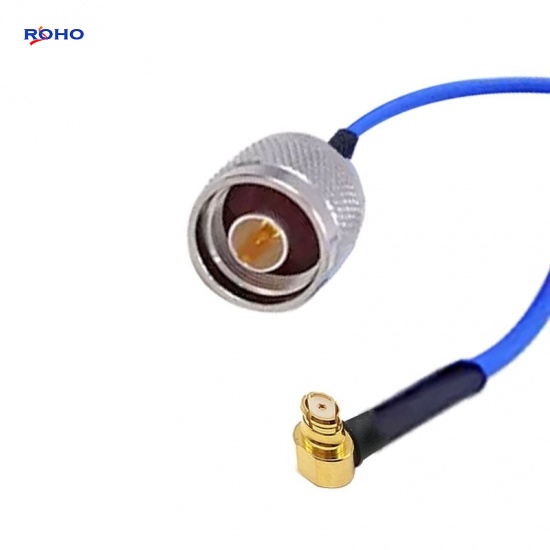

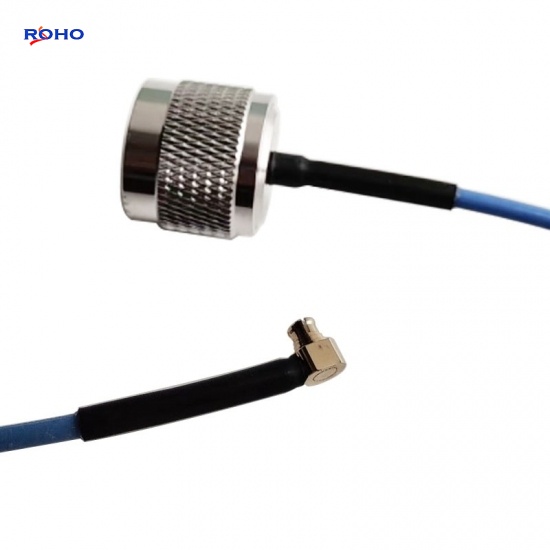

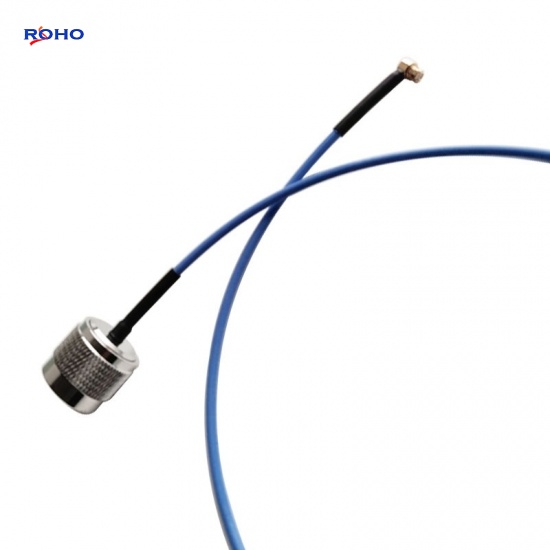

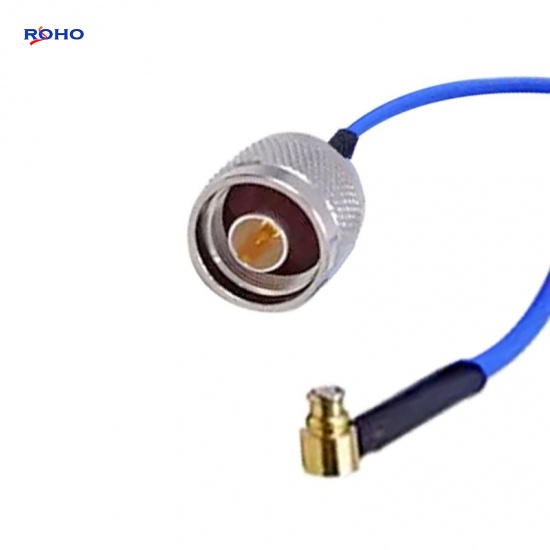

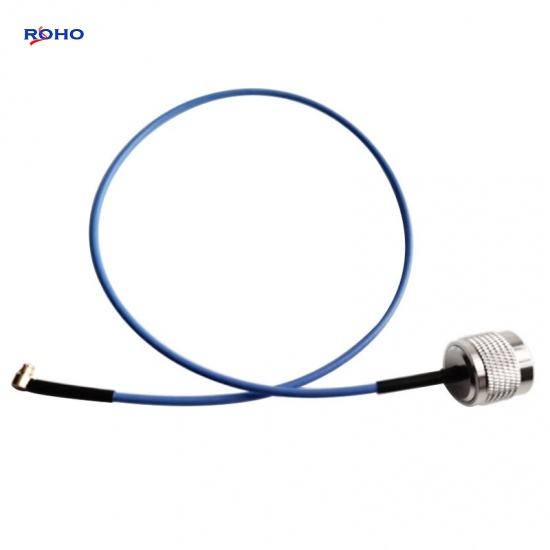

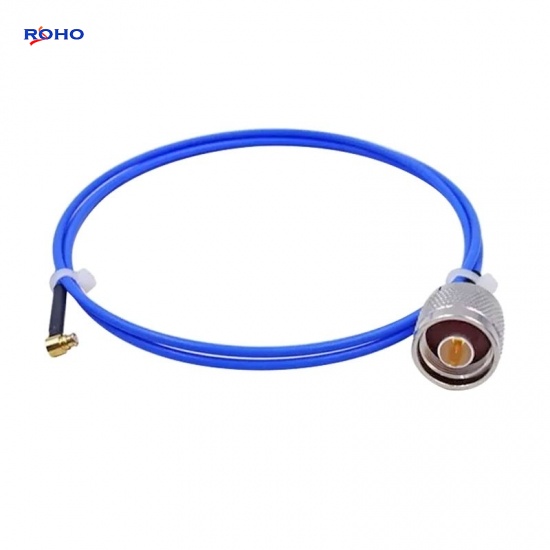

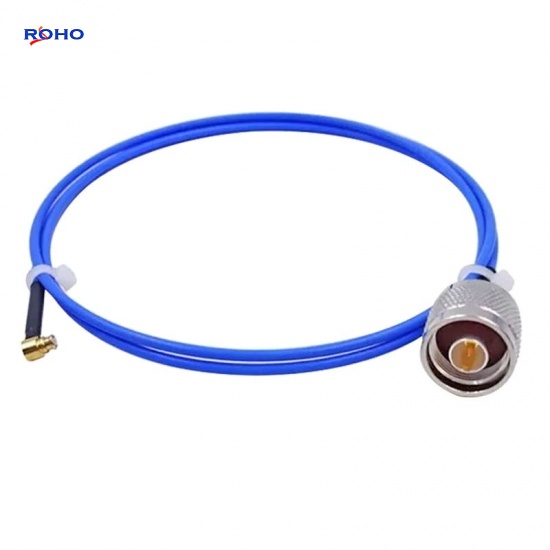

SMP Female Right Angle to N Male Connector Cable Assembly with RG405 Jumper Cable Assembly Pigtail

SMP Cable assembly Features:

  • Can be combined with SMP, SMA, MMCX, N, SSMC, 2.92mm or TNC connector;
  • Cable use flexible, formable or semirigid cable;
  • Frequency Up to 40GHz;
  • Body Can be right angle or straight connectors.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

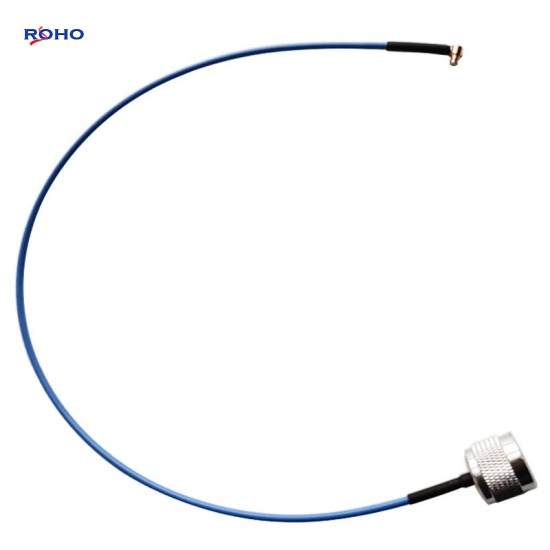

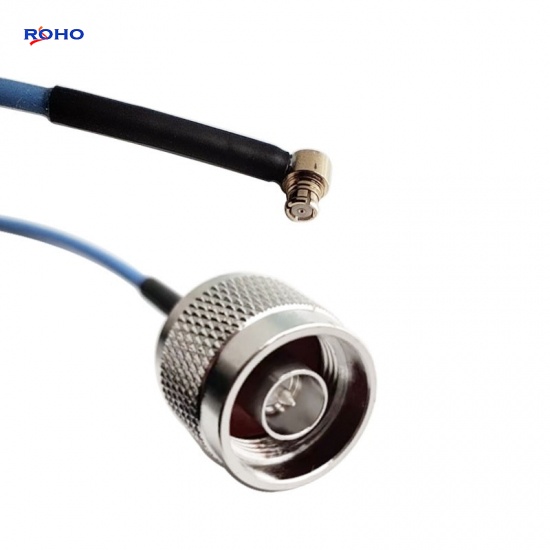

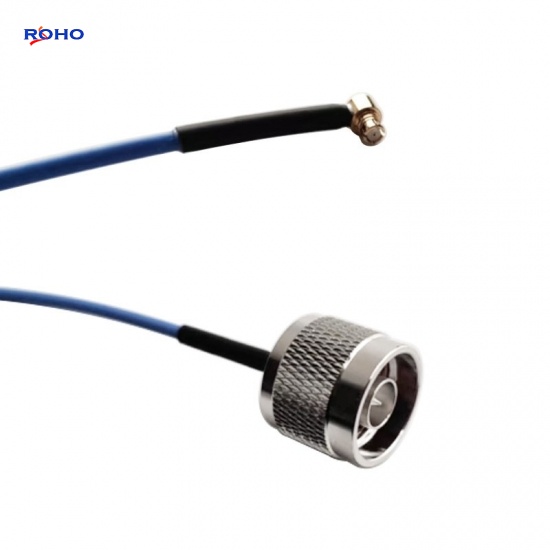

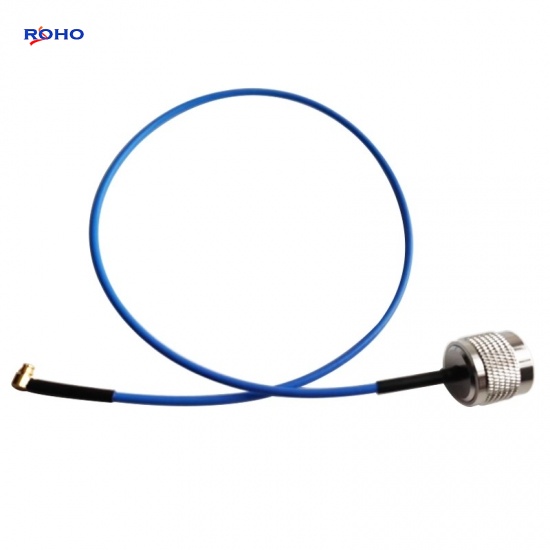

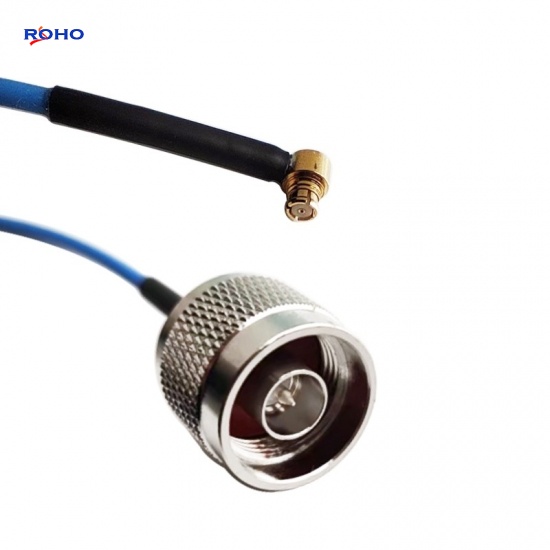

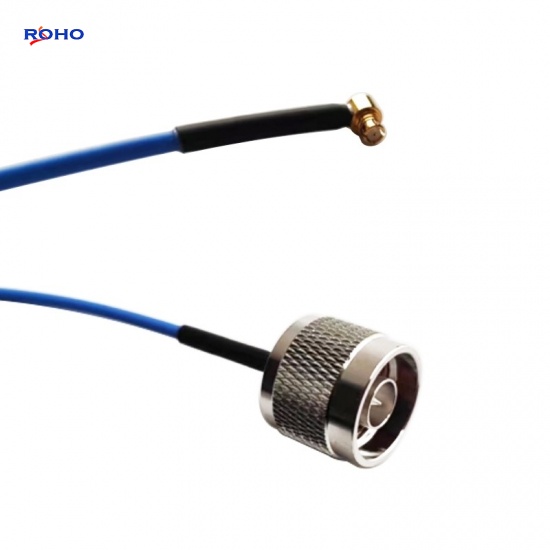

SMP Female Right Angle to N Male Connector Cable Assembly with RG405 Jumper Cable Assembly Pigtail



The SMP cable assembly can use flexible, formable or semirigid coaxial cable such as RG316、RG402、RG405、0.047"、0.086"; the body of SMP to MMCX cable assembly  is right angle or straight connectors. This SMP female to N male cable assembly uses a 50ohm right angle SMP for connector 1 and a 50ohm straight N for connector 2, Cable is a 50ohm flexible RG405.



Specifications

ELECTRICAL DATA
Connector 1 Series SMP
Connector 1 Style RA Female
Cable Type RG405
Connector 2 Series N
Connector 2 Style Str Male
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM Yes
Max Frequency 11GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Laboratory Use
  • General Purpose
  • CB radio handheld
  • Antenna tuner



Leave A Message
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Categories
Related Products

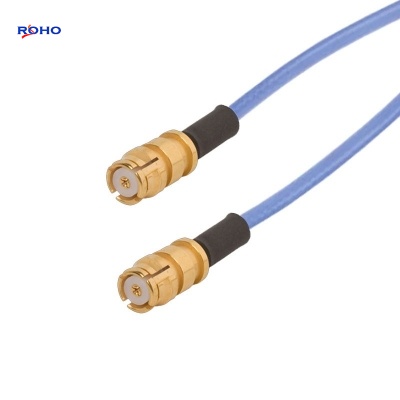

SMP Female to SMP Female Cable Assembly
