SMP Cable Assemblies

SMP Female to SMA Male Connector Cable Assembly with High Performance Flexible RG405 Cable

SMP Cable assembly Features:

  • Can be combined with SMP, SMA, MMCX, N, SSMC, 2.92mm or TNC connector;
  • Cable use flexible, formable or semirigid cable;
  • Frequency Up to 40GHz;
  • Body Can be right angle or straight connectors.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

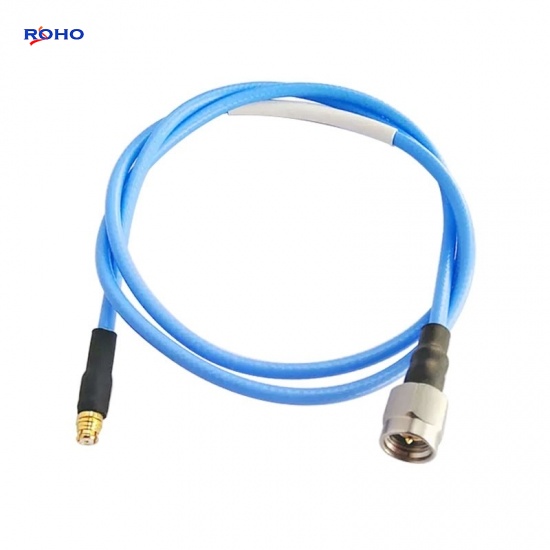

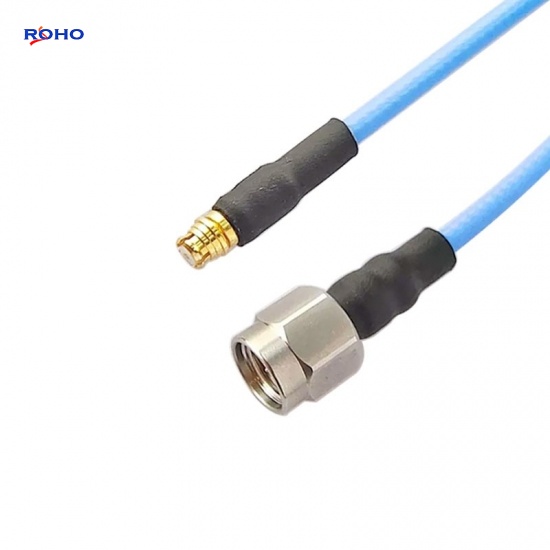

SMP Female to SMA Male Connector Cable Assembly with High Performance Flexible RG405 Cable



The SMP cable assembly can use flexible, formable or semirigid coaxial cable such as RG316、RG402、RG405、0.047"、0.086"; the body of SMP to SMA cable assembly  is right angle or straight connectors. This SMP female to SMA male cable assembly uses a 50ohm straight SMP for connector 1 and a 50ohm straight SMA for connector 2, Cable is a 50ohm flexible RG405.



Specifications

ELECTRICAL DATA
Connector 1 Series SMP
Connector 1 Style Str Female
Cable Type RG405
Connector 2 Series SMA
Connector 2 Style Str Male
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM Yes
Max Frequency 12GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Laboratory Use
  • General Purpose
  • CB radio handheld
  • Antenna tuner



Leave A Message
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Categories
Related Products
SMP Female to SMP Female Cable Assembly
SMP Female to SMP Female Connector with RG405 Cable Assembly
SMP Cable assembly Features: Can be combined with SMP, SMA, MMCX, N, SSMC, 2.92mm or TNC connector; Cable use flexible, formable or semirigid cable; Frequency Up to 40GHz; Body Can be right angle or straight connectors.
SMP Female Right Angle to SMA Male Cable Assembly
SMP Female Right Angle to SMA Male Connector Cable Assembly with Flexible RG405 Cable
SMP Cable assembly Features: Can be combined with SMP, SMA, MMCX, N, SSMC, 2.92mm or TNC connector; Cable use flexible, formable or semirigid cable; Frequency Up to 40GHz; Body Can be right angle or straight connectors.
SMP Female Right Angle to SMA Female Cable Assembly
SMP Female Right Angle to SMA Female Connector Cable Assembly with RG402 Semi-Rigid RF Cable Assembly
SMP Cable assembly Features: Can be combined with SMP, SMA, MMCX, N, SSMC, 2.92mm or TNC connector; Cable use flexible, formable or semirigid cable; Frequency Up to 40GHz; Body Can be right angle or straight connectors.
SMP Female Right Angle to MMCX Plug Cable Assembly
SMP Female Right Angle to MMCX Plug Male Right Angle Connector Cable Assembly with RG405 Cable
SMP Cable assembly Features: Can be combined with SMP, SMA, MMCX, N, SSMC, 2.92mm or TNC connector; Cable use flexible, formable or semirigid cable; Frequency Up to 40GHz; Body Can be right angle or straight connectors.
SMP Male to MMCX Plug Cable Assembly with RG405 Cable
SMP Male to MMCX Plug Male Connector Cable Assembly with RG405 Cable
SMP Cable assembly Features: Can be combined with SMP, SMA, MMCX, N, SSMC, 2.92mm or TNC connector; Cable use flexible, formable or semirigid cable; Frequency Up to 40GHz; Body Can be right angle or straight connectors.

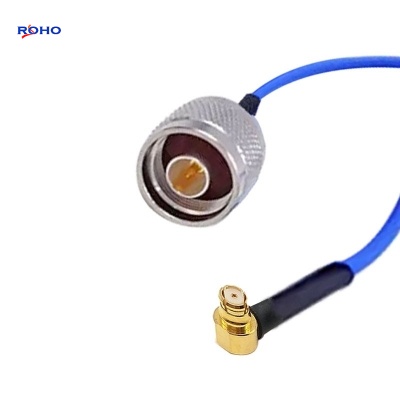

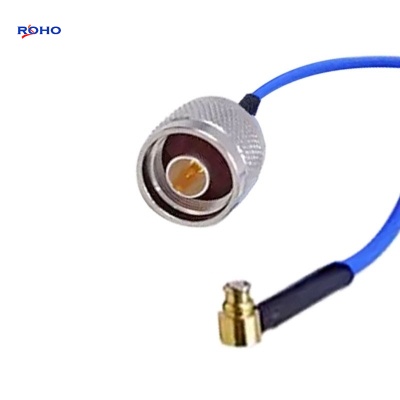

SMP Female Right Angle to N Male Cable Assembly
