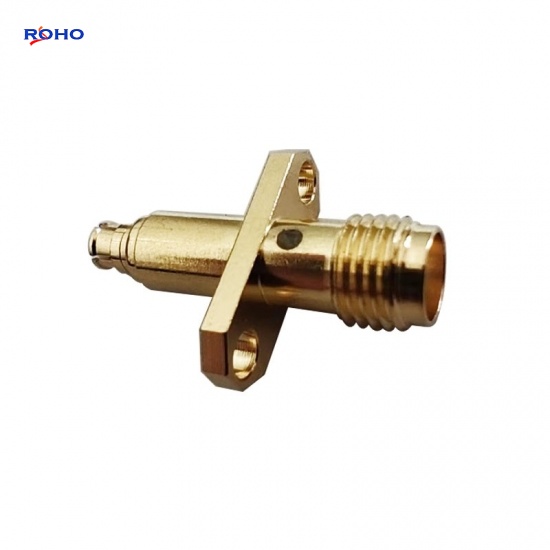

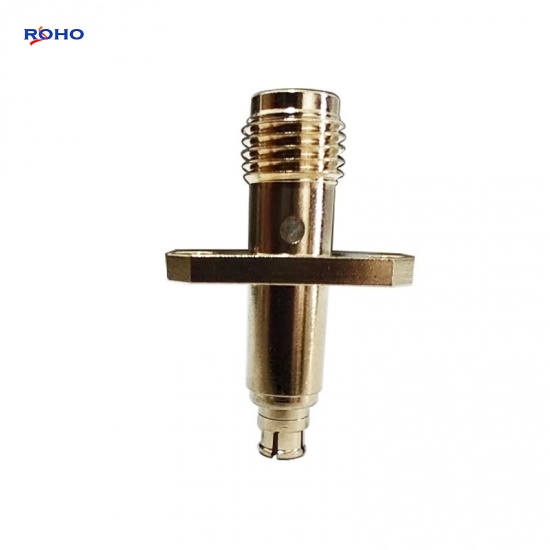

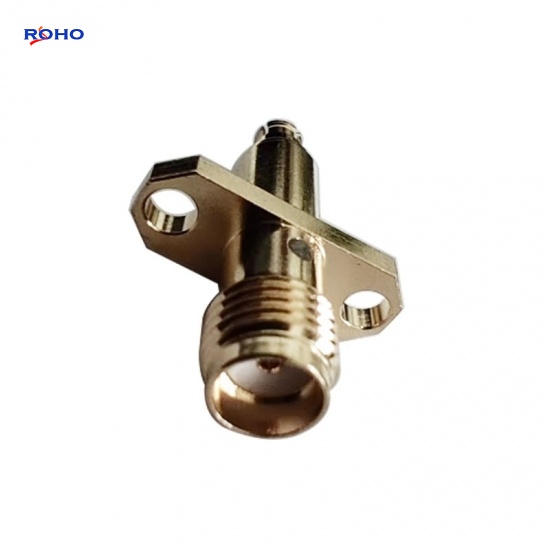

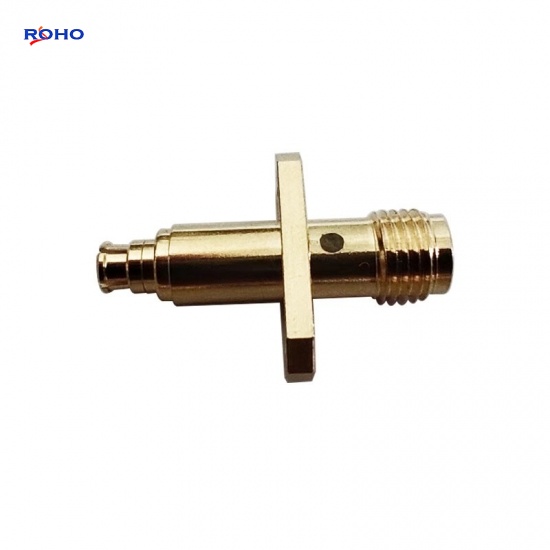

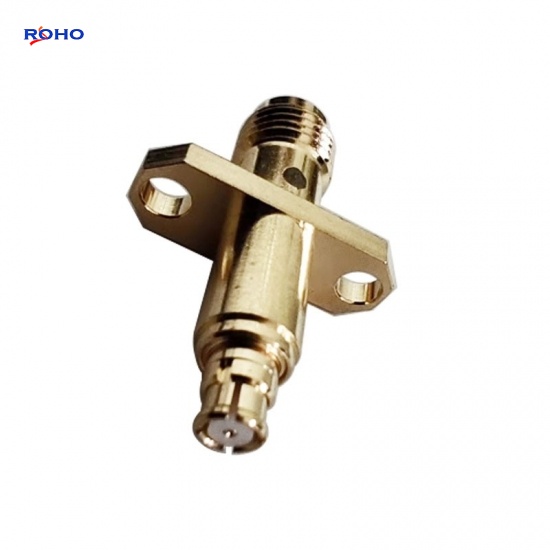

SMP Female to SMA Female Straight 2 Hole Flange Mount RF Connector Adapter


SMP Female to SMA Female RF Adaptor
SMP Female to SMA Female RF Adaptor SMP Female to SMA Female RF Adaptor SMP Female to SMA Female RF Adaptor SMP Female to SMA Female RF Adaptor SMP Female to SMA Female RF Adaptor

SMP Female to SMA Female Straight 2 Hole Flange Mount RF Connector Adapter

SMP adapters Features：

  • Allow to interface SMP connectors with SMA, 2.4mm, 2.92mm, MMCX, TNC or SMP connectors;
  • Has female to female, female to male, male to female or male to male gender combinations;
  • Subminiature interface in the same scale as MMCX connectors;
  • Frequency range of DC to 40 GHz;
  • Miniaturized high frequency coaxial modules, offered in both push-on and snap-on mating styles;
  • Cable-to-board mated pair, the plug side can be provided in either right angle or straight with termination capability to either 0.047” or 0.086”, semi-rigid or conformable coax;
  • Receptacles for surface, through hole, or end launch mounting.

  • Brand:

    ROHO

  • Product Origin:

    China

  • Shipping Port:

    Shenzhen

  • Lead Time:

    7-17days
Inquiry Now

SMP Female to SMA Female Straight 2 Hole Flange Mount RF Connector Adapter



The SMP Adapter has different SMP to SMA adapter gender, that is a series coaxial adapter, ROHO's SMP to SMA adapters has female to female, female to male, male to female or male to male gender combinations. it has high performance designs, This SMP female to SMA female adapter has a maximum frequency of 6GHz, and is a straight body adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series SMP
Adapter Side 1 Style Female
Adapter Side 2 Series SMA
Adapter Side 2 Style Female
Frequency (Max GHz) 6
Impedance (Ohms) 50
Low PIM No
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Body Material
 Brass
Body Finish
 Nickel/Ternary alloy
Contact Material
 Phosphor Bronze/Beryllium Copper
Contact Finish
 Gold/Silver
Insulator Material
 PTFE



Applications

  • Board-to-board
  • Test & measurement
  • Aerospace
