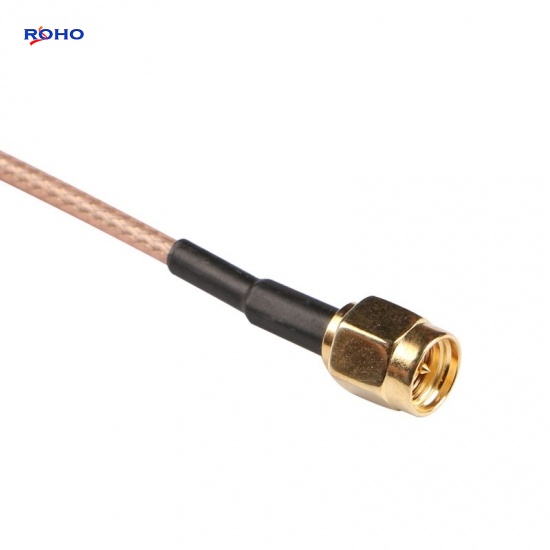

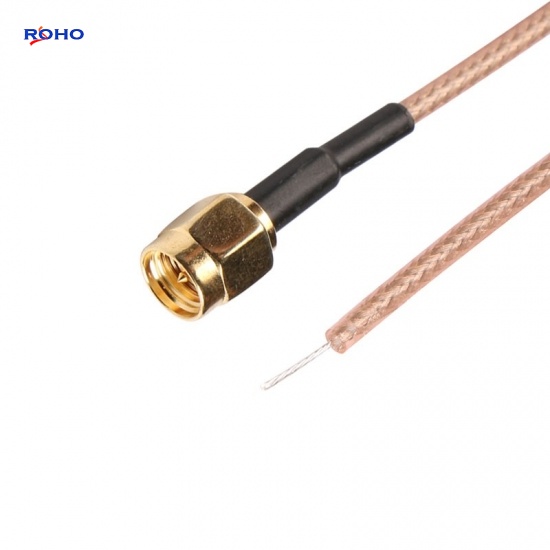

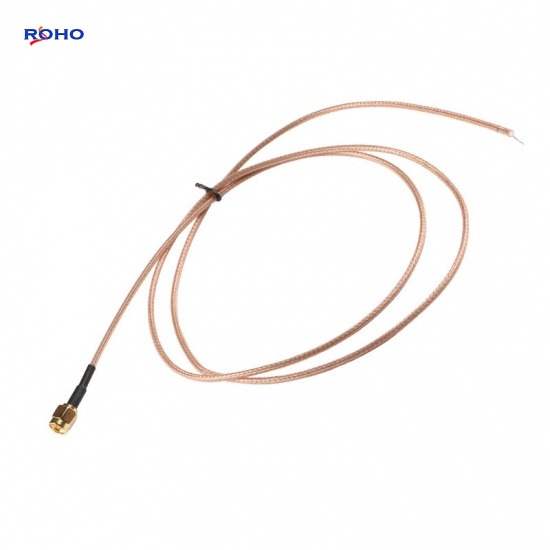

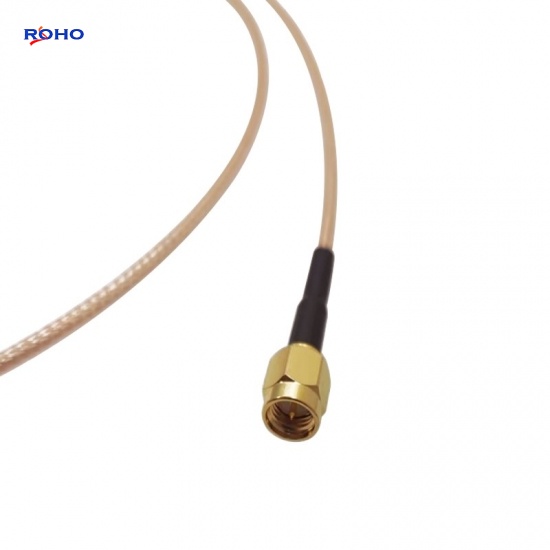

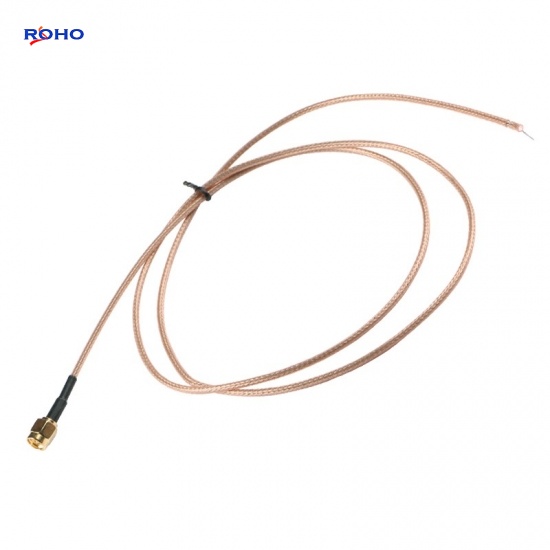

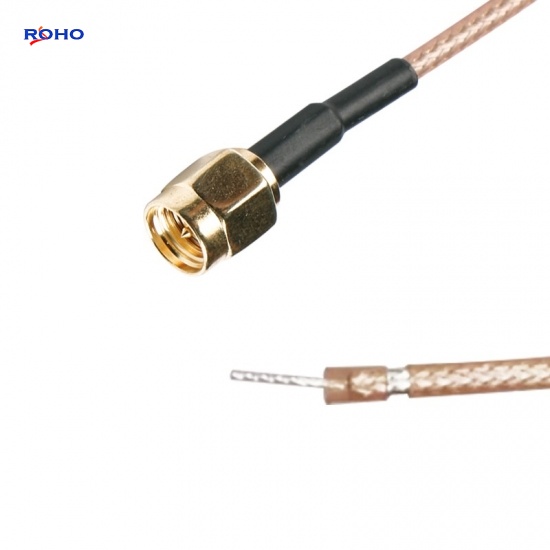

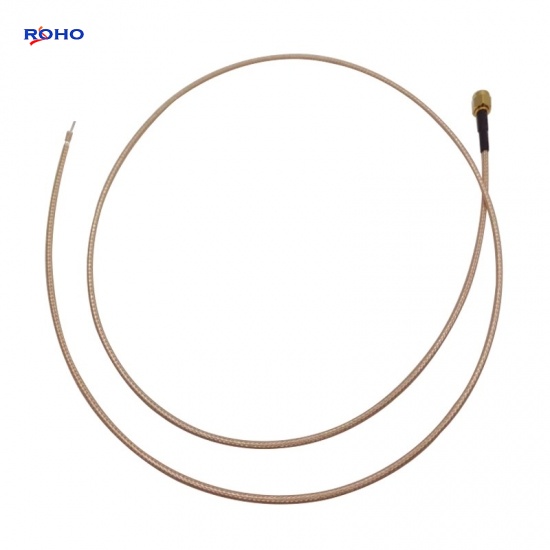

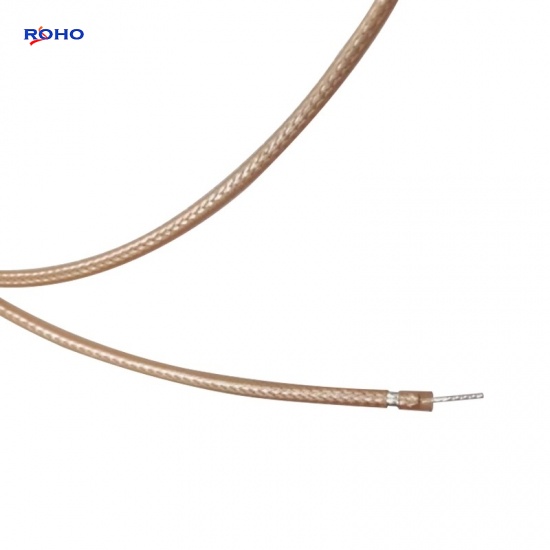

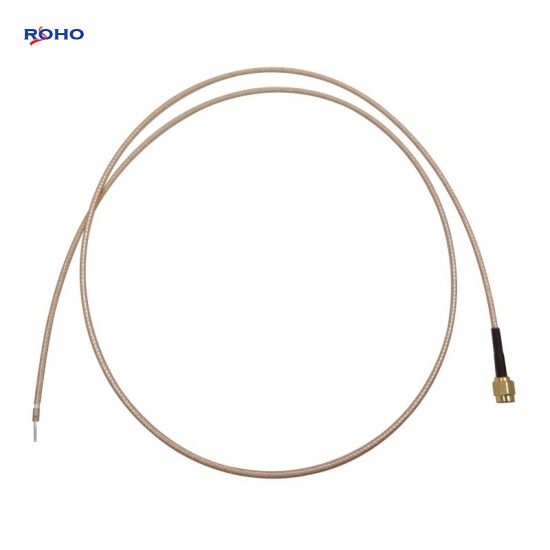

Straight SMA Male Connector with RG316 Cable Assembly

SMA Cable assembly Features:

  • Can be combined with 1.85mm, 2.4mm, 2.92mm, 3.5mm, 4.3-10, 7-16 DIN, BNC, FAKRA, MCX, MMCX, N, NEX10, QMA, QN, SMA, SMB, SMP, TNC, Trimmed Lead or U.FL connectors;
  • Body Can be 2 hole panel, 4 hole panel, bulkhead or standard mount connectors;
  • Body Can be right angle or straight connectors;
  • Cable Can use corrugated, flexible, formable or semirigid cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

Straight SMA Male Connector with RG316 Cable Assembly



The SMA cable assembly can use corrugated, flexible, formable or semirigid coaxial cablesuch as 0.81mm, 1.13mm, 1.37mm, 1/4" Superflexible, LMR100, LMR-195, LMR200, LMR-240, LMR400, RG141, RG142, RG174, RG178, RG179, RG180, RG187, RG188, RG196, RG213, RG214, RG223, RG303, RG316, RG393, RG400, RG401, RG402, RG405, RG55, RG58, RG59, RG62, RG8, TFT-402 or Tinned 047 cable; the body of SMA to Pre-Trimmed Lead cable assembly is right angle or straight connectors which is female to sexless or male to sexless gender. This SMA male to Pre-Trimmed Lead sexless cable assembly uses a 50ohm Straight SMA for connector 1 and a 50ohm Pre-Trimmed Lead for connector 2, Cable is 50ohm RG316.



Specifications

ELECTRICAL DATA
Connector 1 Series SMA
Connector 1 Style Str Plug
Cable Type RG316
Connector 2 Series Trimmed Lead
Connector 2 Style sexless
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM NO
Max Frequency 2 GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material PTFE



Applications

  • Used as an RF Test Probe to 6 GHz
  • RF PCB board measurements
  • Signal injection
