0.5W 2.92mm Female DC-40GHz RF load 50ohm RF Coaxial Termination Dummy load


0.5W 2.92mm Male Termination dummy load
0.5W 2.92mm Male Termination dummy load 0.5W 2.92mm Male Termination dummy load 0.5W 2.92mm Male Termination dummy load 0.5W 2.92mm Male Termination dummy load

0.5W 2.92mm Female DC-40GHz RF load 50ohm RF Coaxial Termination Dummy load

Features：

  • High Reliable;
  • Good Mechanical Performance;
  • Wide Frequency Range from DC to 40GHz.



  • Brand:

    ROHO

  • Product Origin:

    China

  • Shipping Port:

    Shenzhen

  • Lead Time:

    7-17days
Inquiry Now

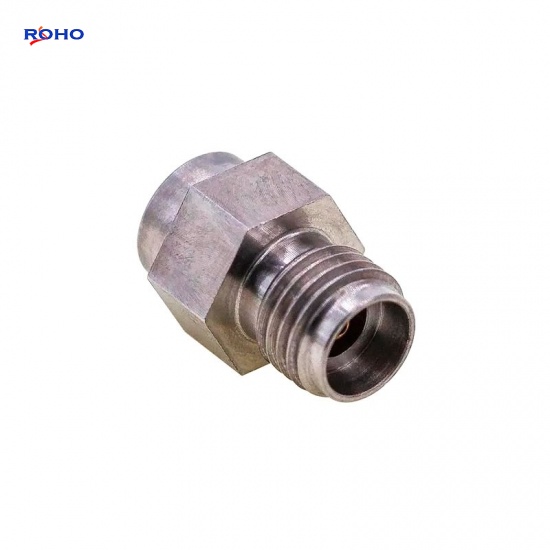

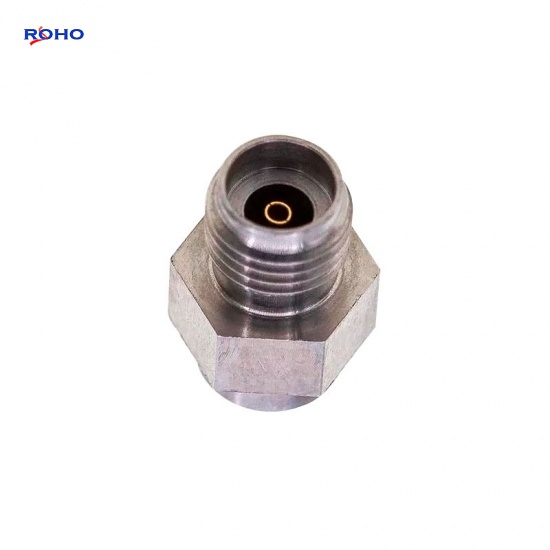

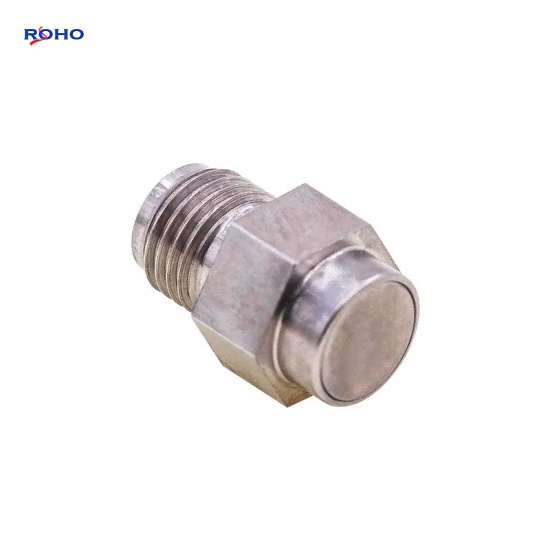

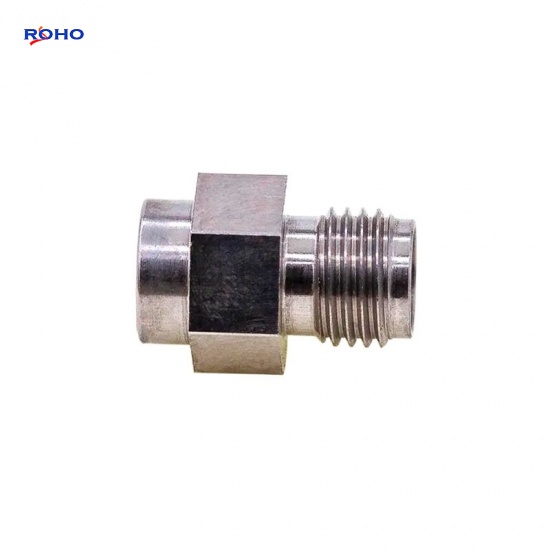

0.5W 2.92mm Female DC-40GHz RF load 50ohm RF Coaxial Termination  Dummy load



The 2.92mm Female dummy load(also known as 2.92mm Female termination or 2.92mm Female RF load) has maximum frequency up to 40GHz. This ROHO's Termination is a RF load rated to maximum 2W and has a 50ohm impedance;Signal termination often requires the installation of a terminator at the beginning and end of a wire or cable to prevent an RF signal from being reflected back from each end, causing interference, or power loss.



Specifications

ELECTRICAL DATA
Frequency DC~40GHz
Connector 2.92mm Female
VSWR ≤1.2
Power 0.5W
Impedance 50Ω
Temperature Range -55℃～+125℃
MATERIAL DATA
Connector body Stainless Steel,Passivate
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au



Applications

  • Measurement systems
  • Multi-port microwave device
  • Directional couplers
  • Isolators
