TNC Cable Assemblies

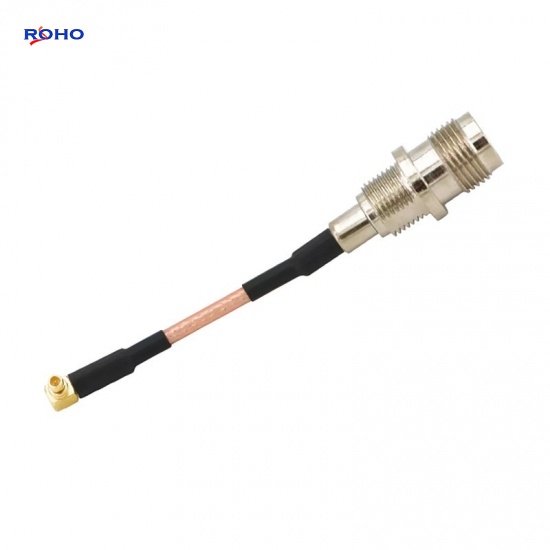

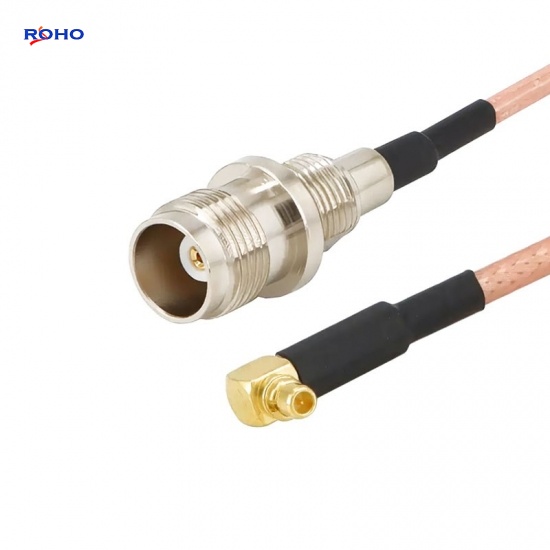

TNC Female Bulkhead to MMCX Plug Male Right Angle Connector Cable Assembly with RG316 Extension Cable

TNC Cable assembly Features:

  • Can be combined with BNC, FAKRA, MCX, MMCX, N, SMA, SMB or TNC connector;
  • Body Can be right angle or straight connectors;
  • Max Frequency 18 GHz;
  • Cable Can use flexible, formable or semirigid cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

TNC Female Bulkhead to MMCX Plug Male Right Angle Connector Cable Assembly with RG316 Extension Cable



The TNC cable assembly can use flexible, formable or semirigid coaxial cable such as LMR195、LMR240、LMR400、RG142、RG174、RG178、RG188、RG213、RG214、RG223、RG316、RG393、RG400、RG401、RG402、RG58、RG8; the body of TNC to MMCX cable assembly is right angle or straight connectors which is female to jack, female to plug, male to jack or male to plug gender. This TNC female to MMCX plug cable assembly uses a 50ohm straight TNC for connector 1 and a 50ohm right angle MMCX for connector 2, Cable is a 50ohm flexible RG316.



Specifications

ELECTRICAL DATA
Connector 1 Series TNC
Connector 1 Style Str Male
Cable Type RG316
Connector 2 Series MMCX
Connector 2 Style RA Plug
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM Yes
Max Frequency 3GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Automated Test Systems
  • Airborne Systems
  • Phased Arrays
  • EW and Countermeasures
