1.0-2.3 Adaptors

1.0-2.3 Jack Female to SMA Male RF Coaxial Connector Adapter

1.0-2.3 adapters Features:

  • Allow to interface 1.0-2.3 connectors with SMA or BNC connectors;
  • Has jack to female, jack to male, plug to female or plug to male gender;
  • Compact design allows for denser connector ;
  • 50ohm with a maximum frequency of 10GHz, 75ohm with a maximum frequency of 4 GHz.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

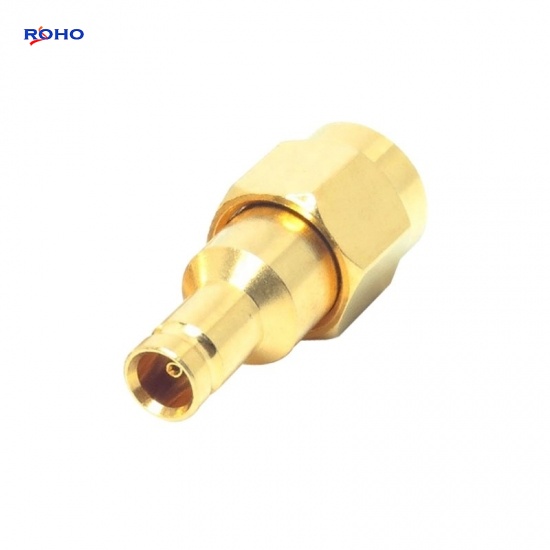

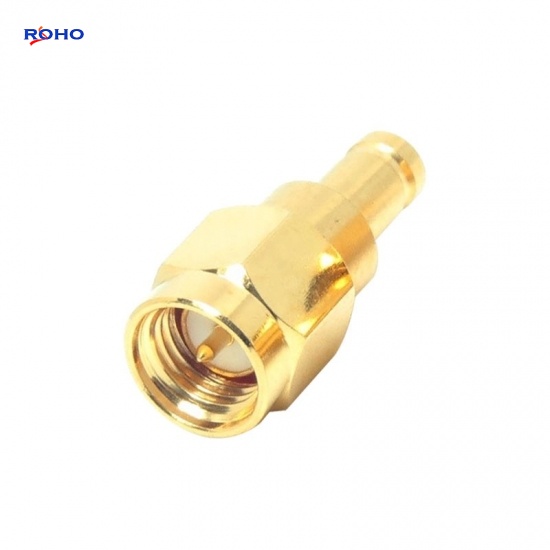

1.0-2.3 Jack Female to SMA Male RF Coaxial Connector Adapter



The 1.0-2.3 Adapter has different 1.0-2.3 to SMA adapter gender, The 1.0-2.3 to SMA adapters has jack to female, jack to male, plug to female or plug to male gender. This 1.0-2.3 jack to SMA male adapter has a maximum frequency of 6GHz, and is a straight body adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series 1.0-2.3
Adapter Side 1 Style Jack
Adapter Side 2 Series SMA
Adapter Side 2 Style Male
Frequency (Max GHz) 6
Impedance (Ohms) 50
Low PIM No
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • high data rates for AES Audio
  • SD video
  • HD video
  • 3Gb/s video
  • high density digital broadcast formats
