1.0-2.3 Adaptors

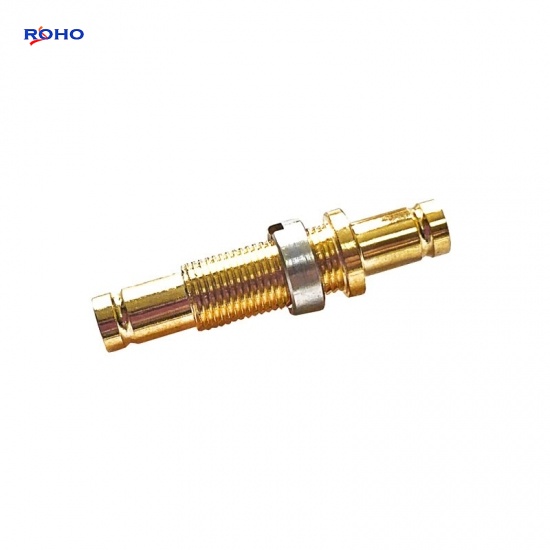

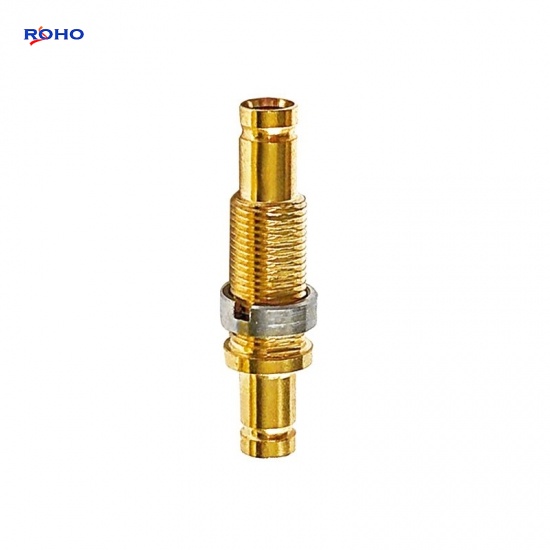

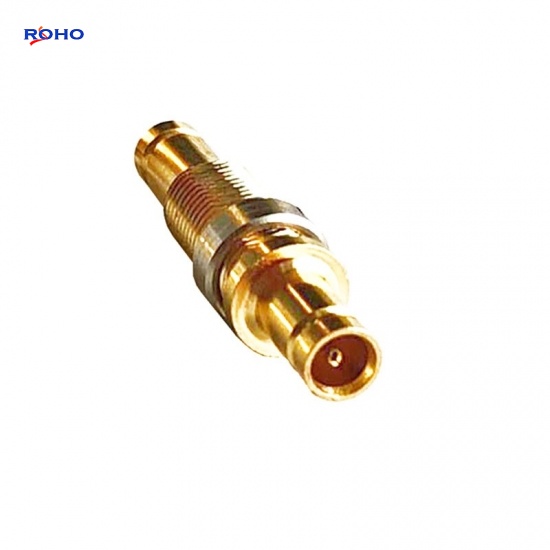

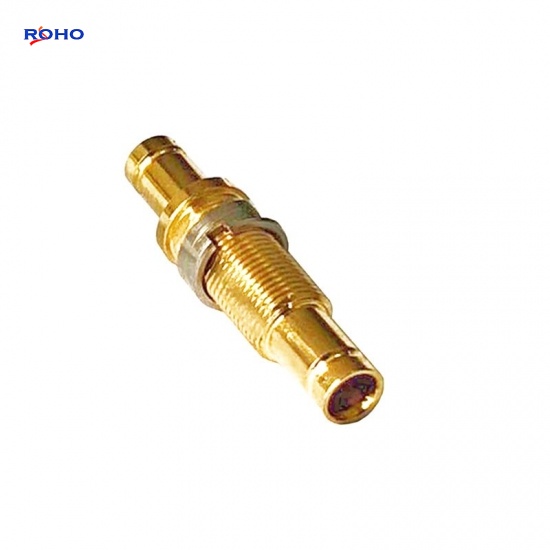

1.0-2.3 Jack Female to 1.0-2.3 Jack Female Bulkhead Mount Female RF Coaxial Connector Adapter

1.0-2.3 adapters Features:

  • Allow to interface 1.0-2.3 connectors with SMA or BNC connectors;
  • Has jack to female, jack to male, plug to female or plug to male gender;
  • Compact design allows for denser connector ;
  • 50ohm with a maximum frequency of 10GHz, 75ohm with a maximum frequency of 4 GHz.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

1.0-2.3 Jack Female to 1.0-2.3 Jack Female Bulkhead Mount RF Coaxial Connector Adapter



The 1.0-2.3 Adapter has different 1.0-2.3 to 1.0-2.3 adapter gender, The 1.0-2.3 to 1.0-2.3 adapters has jack to jack or jack to plug gender. This 1.0-2.3 jack to 1.0-2.3 jack adapter has a maximum frequency of 14GHz, and is a straight body adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series 1.0-2.3
Adapter Side 1 Style Jack
Adapter Side 2 Series 1.0-2.3
Adapter Side 2 Style Jack
Frequency (Max GHz) 14
Impedance (Ohms) 50
Low PIM No
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • high data rates for AES Audio
  • SD video
  • HD video
  • 3Gb/s video
  • high density digital broadcast formats



Leave A Message
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Categories
Related Products
DIN 1.0-2.3 Female to BNC Female Adaptor
DIN 1.0-2.3 Female to BNC Female RF Coaxial Adaptor
1.0-2.3 adapters Features: Allow to interface 1.0-2.3 connectors with SMA or BNC connectors; Has jack to female, jack to male, plug to female or plug to male gender; Compact design allows for denser connector ; 50ohm with a maximum frequency of 10GHz, 75ohm with a maximum frequency of 4 GHz.
1.0-2.3 Jack to SMA Male Connector Adaptor
1.0-2.3 Jack Female to SMA Male RF Coaxial Connector Adapter
1.0-2.3 adapters Features: Allow to interface 1.0-2.3 connectors with SMA or BNC connectors; Has jack to female, jack to male, plug to female or plug to male gender; Compact design allows for denser connector ; 50ohm with a maximum frequency of 10GHz, 75ohm with a maximum frequency of 4 GHz.
SMA Female Crimp RF Coaxial Connector
SMA Female Straight Connector Crimp Solder Attachment for RG58 RG303 RG141 LMR195 Cable
SMA Connector Features: Can terminate to coax, PCB (printed circuit board) or terminal; Can be male or female gender in standard polarity (RPSMA / RP-SMA) or reverse polarity threads, with 50ohm impedance; Body can be straight, radius right angle or right angle; Mount Method can be press in, bulkhead, 2 hole panel, 4 hole panel or mount-less; Attachment methods include clamp/solder, compression, crimp/solder, crimp/solder (captive contact), field replaceable, solder, solder (without contact), solder/solder or solder/solder (captive contact); Body is brass or stainless steel.
2.2-5 Male to 4.3-10 Female Adaptor
Low Pim 2.2-5 Male to 4.3-10 Female Straight RF Connector Adapter
N type adapters Features: Allow to interface N connectors with N, 7-16 DIN, 4.3-10, 3.5mm, or 2.2-5 connectors; Require low PIM in order to avoid interference in network quality during high speed data transmission; Flexibility in installation with the ability to blind mate; Lightweight and can accommodate various cable types; Both indoor and outdoor applications.

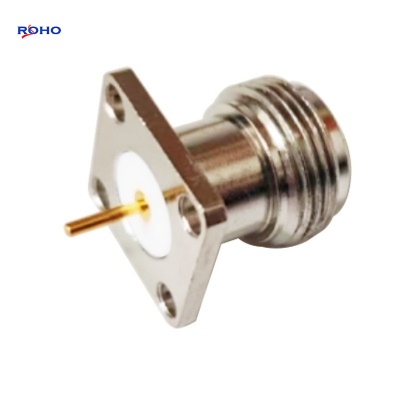

N Type Female RF Coaxial Connector
