1.0-2.3 Adaptors

DIN 1.0-2.3 Plug Male to BNC Female RF Coaxial Adaptor

1.0-2.3 adapters Features:

  • Allow to interface 1.0-2.3 connectors with SMA or BNC connectors;
  • Has jack to female, jack to male, plug to female or plug to male gender;
  • Compact design allows for denser connector ;
  • 50ohm with a maximum frequency of 10GHz, 75ohm with a maximum frequency of 4 GHz.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

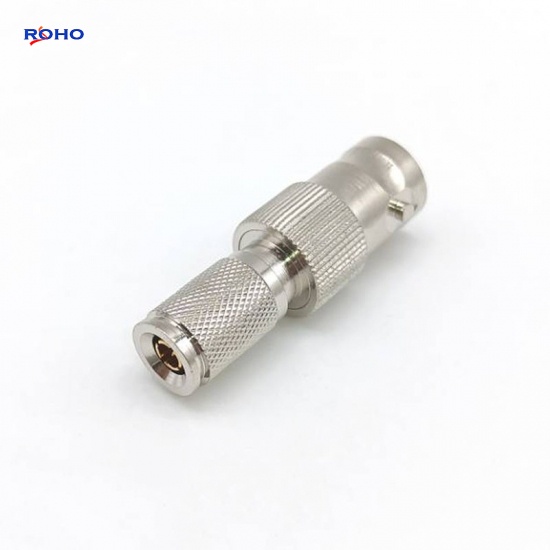

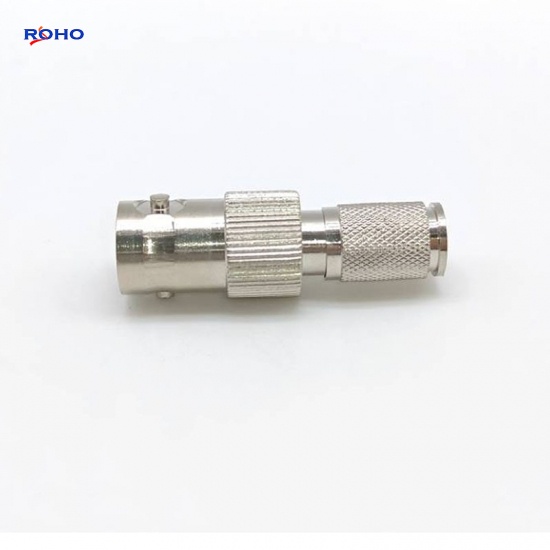

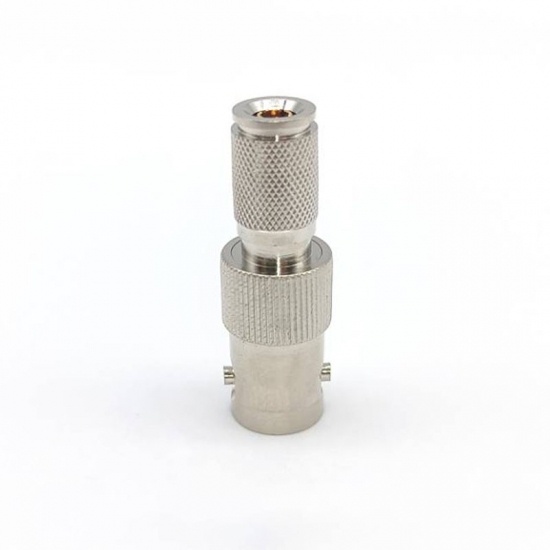

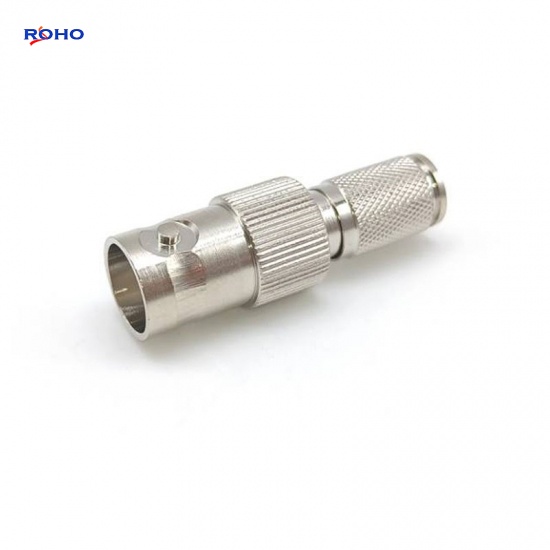

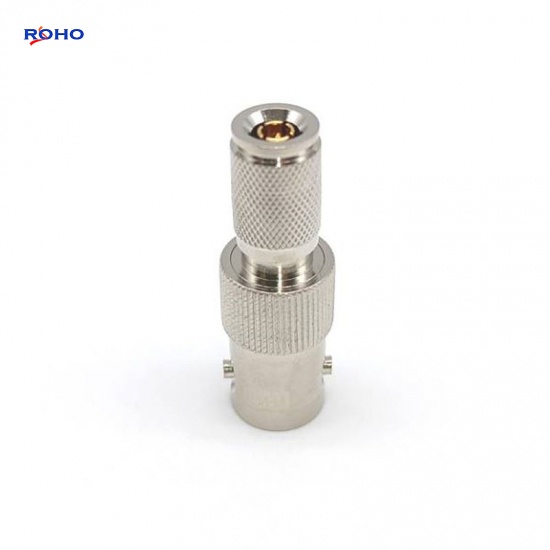

DIN 1.0-2.3 Plug Male to BNC Female RF Coaxial Adaptor



The DIN 1.0-2.3 Adapter has different DIN 1.0-2.3 to BNC adapter gender, The DIN 1.0-2.3 to BNC adapters has female to female, female to male, male to female or male to male gender. This DIN 1.0-2.3 male to BNC female adapter has a maximum frequency of 300MHz, and is a straight body adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series DIN 1.0-2.3
Adapter Side 1 Style Plug
Adapter Side 2 Series BNC
Adapter Side 2 Style Female
Frequency (Max GHz) 10
Impedance (Ohms) 50
Low PIM NO
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • high data rates for AES Audio
  • SD video
  • HD video
  • 3Gb/s video
  • high density digital broadcast formats



Leave A Message
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Categories
Related Products
1.0-2.3 Jack to SMA Male Connector Adaptor
1.0-2.3 Jack Female to SMA Male RF Coaxial Connector Adapter
1.0-2.3 adapters Features: Allow to interface 1.0-2.3 connectors with SMA or BNC connectors; Has jack to female, jack to male, plug to female or plug to male gender; Compact design allows for denser connector ; 50ohm with a maximum frequency of 10GHz, 75ohm with a maximum frequency of 4 GHz.
1.0-2.3 Jack Female to 1.0-2.3 Jack Female Connector Adaptor
1.0-2.3 Jack Female to 1.0-2.3 Jack Female Bulkhead Mount Female RF Coaxial Connector Adapter
1.0-2.3 adapters Features: Allow to interface 1.0-2.3 connectors with SMA or BNC connectors; Has jack to female, jack to male, plug to female or plug to male gender; Compact design allows for denser connector ; 50ohm with a maximum frequency of 10GHz, 75ohm with a maximum frequency of 4 GHz.
SMA Male Connector GPRS GSM Antenna
GSM GPRS Small Pepper Wireless Antenna 900MHz 1800MHz 1dBi 2dBi 3dBi SMA Connector Antenna
Features: Radiation Pattern of Antenna; Polarization of Antenna; Intensity of Radiation; Effective Aperture; Gain & Directivity; Bandwidth; Power Gain & Radiation Efficiency; Effective Length; Input Impedance.
MCX Plug Solder PCB Connector
MCX Plug Male Straight Connector Solder Attachment Thru Hole for PCB
MCX Connector Features: Can terminate to coax, PCB (printed circuit board) or terminal; Can be jack or plug gender in standard polarity or reverse polarity threads, with 50ohm impedance; Body can be straight or right angle; Mount Method can be bulkhead, 2 hole panel, 4 hole panel or mount-less; Attachment methods include crimp/solder or solder; Body is brass or stainless steel.
N Type Male RF Coaxial Connector
New N Type Male Connector Clamp Solder Attachment for LMR400 Cable
N type features: Can terminate to coax, PCB (printed circuit board) or terminal; Can be male or female gender in standard polarity or reverse polarity threads, with 50ohm impedance; Body can be straight or right angle; Mount Method can be press in, bulkhead, 2 hole panel, 4 hole panel or mount-less; Attachment methods include clamp/solder, clamp/solder (captive contact), crimp/solder, field replaceable, solder or solder/solder; Body is brass or stainless steel.

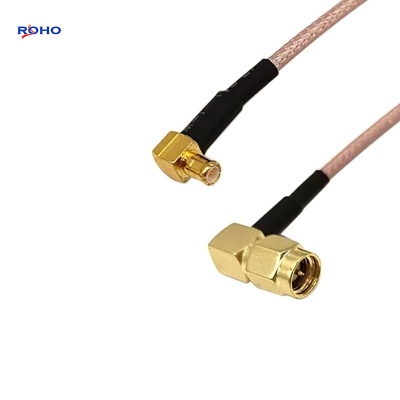

MCX Plug Right Angle to SMA Male Right Angle Cable Assembly
MCX Male Plug Right Angle to SMA Male Right Angle Connector Cable Assembly with RG316 Pigtail Cable
MCX Cable assembly Features: Can be combined with BNC, FAKRA, MCX, N, SMA, TNC or U.FL connector; Body Can be bulkhead or standard mount connectors; Body Can be right angle or straight connectors; Cable Can use flexible or formable cable.

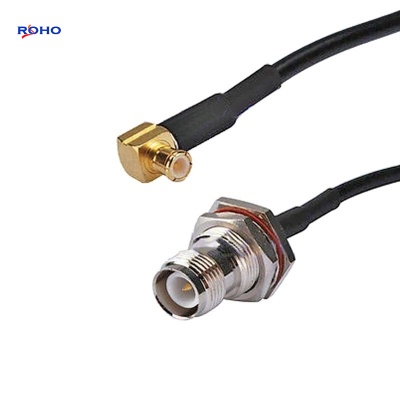

MCX Plug to RP TNC Female Bulkhead Cable Assembly
MCX Plug Right Angle to RP TNC Female Bulkhead Connector Cable Assembly with Pigtail RG174 Cable
MCX Cable assembly Features: Can be combined with BNC, FAKRA, MCX, N, SMA, TNC or U.FL connector; Body Can be bulkhead or standard mount connectors; Body Can be right angle or straight connectors; Cable Can use flexible or formable cable.

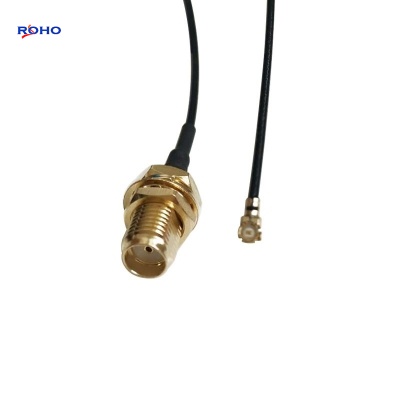

SMA Female to UFL Cable Assembly
