4.3-10 Attenuators

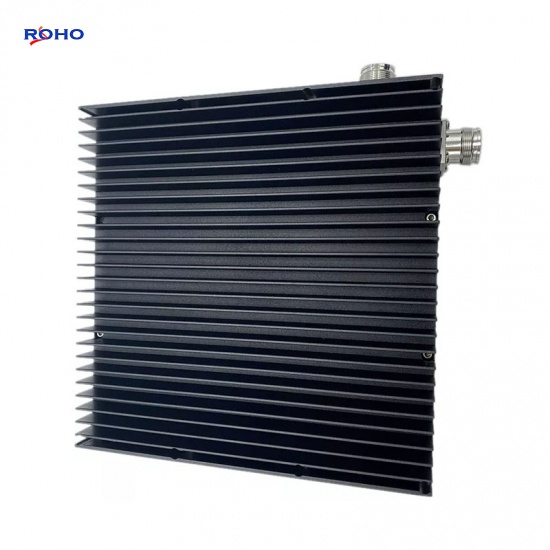

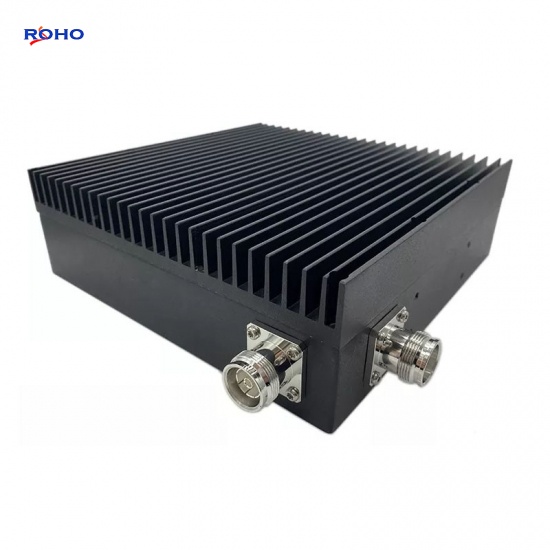

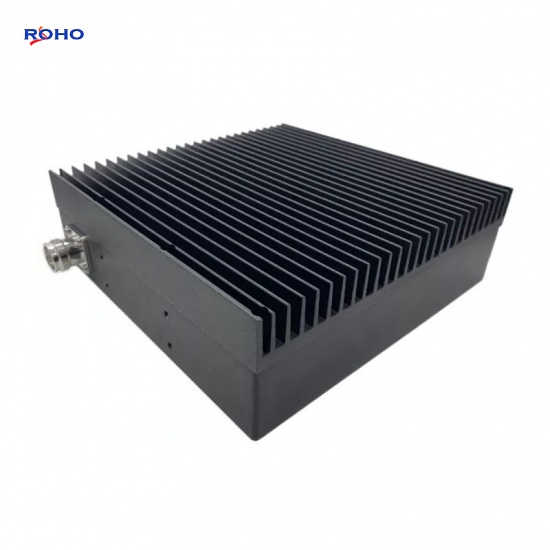

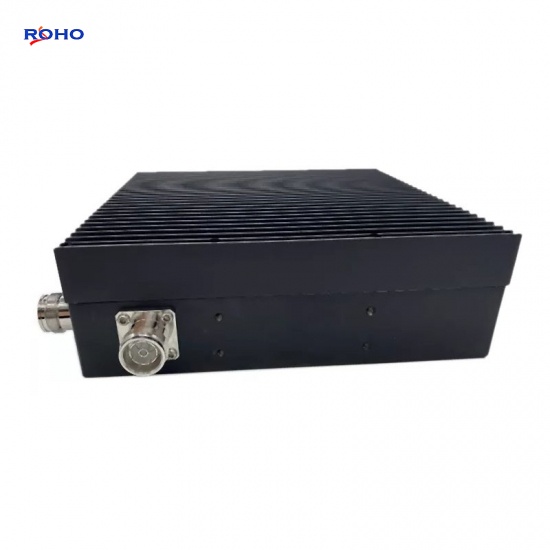

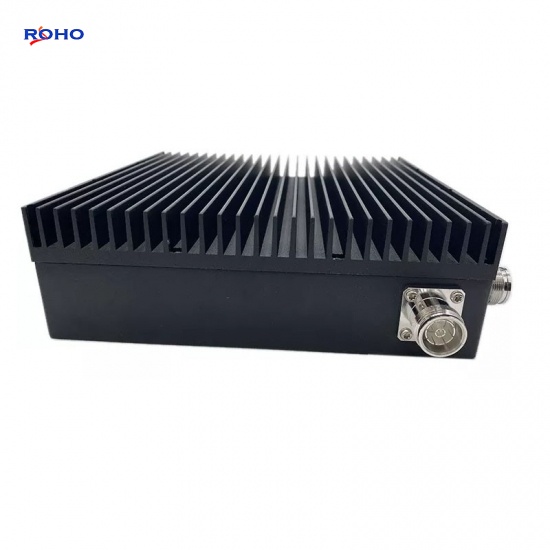

100W 20dB RF Attenuator Low Pim 698-2700MHz RF Attenuator with 4.3-10 Female to Female Mini Din Connector

4.3-10 Attenuator Features:

  • 4.3-10 connector input, out connector can be 4.3-10 or N;
  • Maximum frequency of 18GHz;
  • A male gender in and a female gender out;
  • Attenuation values range from 1dB to 40dB.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

100W 20dB RF Attenuator Low Pim 698-2700MHz RF Attenuator with 4.3-10 Female to Female Mini Din Connector



The RF Attenuator are manufactured to precise industry specifications and the bodies are constructed of an aluminum finned heatsink, stainless steel or nickel plated brass. ROHO's 4.3-10 Attenautor is a High Power Coaxial Attenuator from 1 to 100W, and we offer 50ohm loads terminations male and female type. This 100W 4.3-10 to 4.3-10 Attenuator has a 4.3-10 male gender on side 1 and a 4.3-10 female connector on side 2. attenuation Max value is 20dB, frequency Max is 6GHz.



Specifications

ELECTRICAL DATA
Frequency DC~3GHz/4GHz
Connector 4.3-10 Female to Female
VSWR ≤1.2
Power 100W
Impedance 50Ω
Attenuation value 1-20dB
Attenuation 3, 5, 6, 10, 15, 20dB is available
1-10dB.±0.5dB,15-20dB±1dB
Temperature Range -55℃~+125℃
MATERIAL DATA
Connector body Brass,Plating Ni
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au
Housing  Aluminum,Black



Applications

  • Mobile Communication
  • Network Optimization
  • In-door distribution system
  • Satellite communication
  • Shortwave communication
  • Hopping radio
