4.3-10 Attenuators

10W 4.3-10 Mini Din Fixed Attenuator Male to Female 3-20dB Avaliable DC-3GHz

4.3-10 Attenuator Features:

  • 4.3-10 connector input, out connector can be 4.3-10 or N;
  • Maximum frequency of 18GHz;
  • A male gender in and a female gender out;
  • Attenuation values range from 1dB to 40dB.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

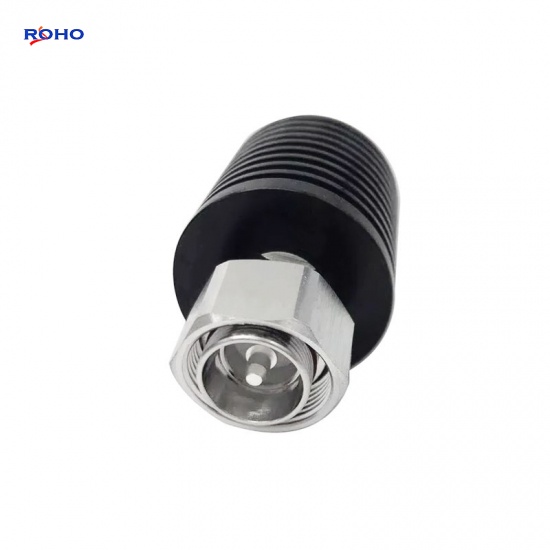

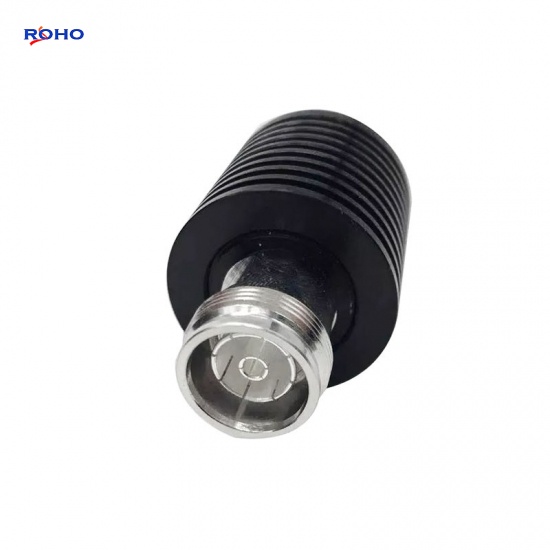

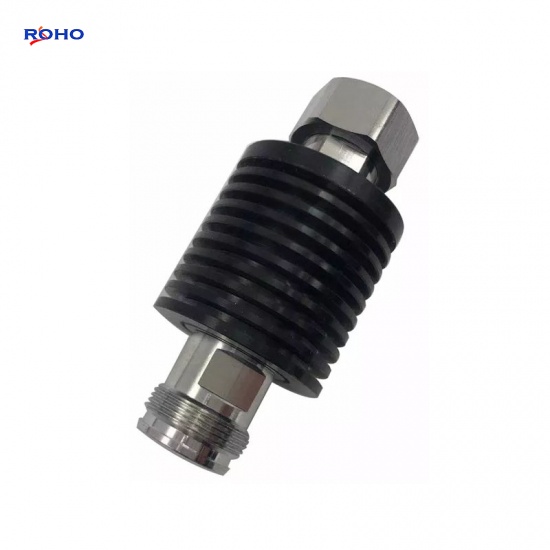

10W 4.3-10 Mini Din Fixed Attenuator Male to Female 3-20dB Avaliable DC-3GHz



The RF Attenuator are manufactured to precise industry specifications and the bodies are constructed of an aluminum finned heatsink, stainless steel or nickel plated brass. ROHO's 4.3-10 Attenautor is a High Power Coaxial Attenuator from 1 to 100W, and we offer 50ohm loads terminations male and female type. This 10W 4.3-10 to 4.3-10 Attenuator has a 4.3-10 male gender on side 1 and a 4.3-10 female connector on side 2. attenuation Max value is 20dB, frequency Max is 6GHz.



Specifications

ELECTRICAL DATA
Frequency DC~3GHz/4GHz
Connector 4.3-10 Male to 4.3-10 Female
VSWR ≤1.2
Power 10W
Impedance 50Ω
Attenuation value 3-20dB
Attenuation 3, 5, 6, 10, 15, 20dB is available
1-10dB±0.8dB, 15-20dB±1dB
Temperature Range -55℃~+125℃
MATERIAL DATA
Connector body Brass,Plating Ni
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au
Housing  Aluminum,Black



Applications

  • Mobile Communication
  • Network Optimization
  • In-door distribution system
  • Satellite communication
  • Shortwave communication
  • Hopping radio



Leave A Message
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Categories
Related Products

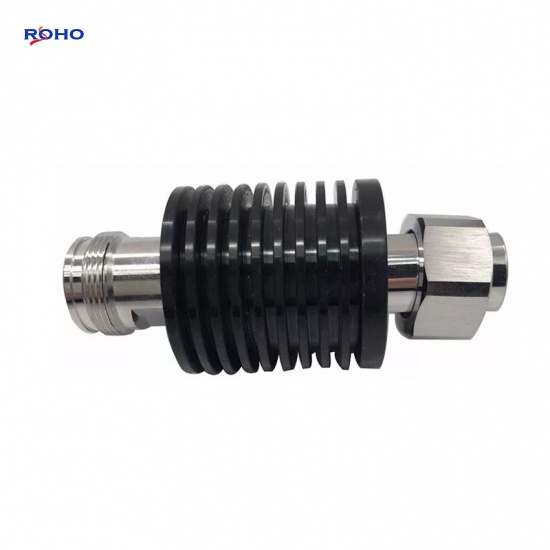

50W 4.3 10 Male to N Female Attenuator
