4.3-10 Attenuators

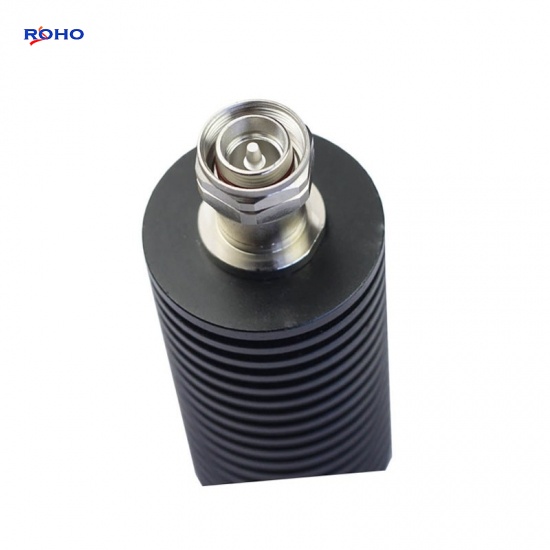

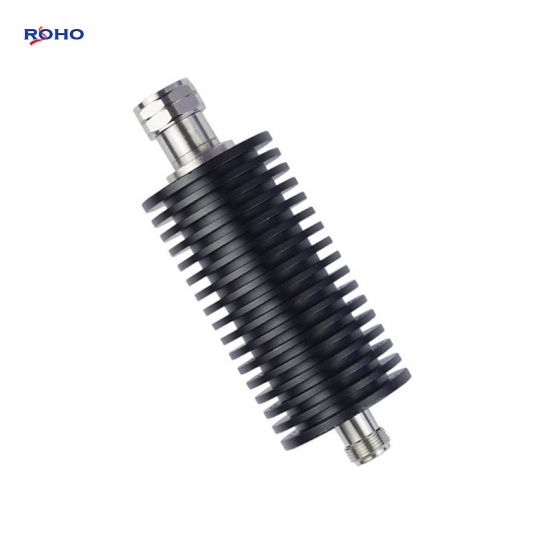

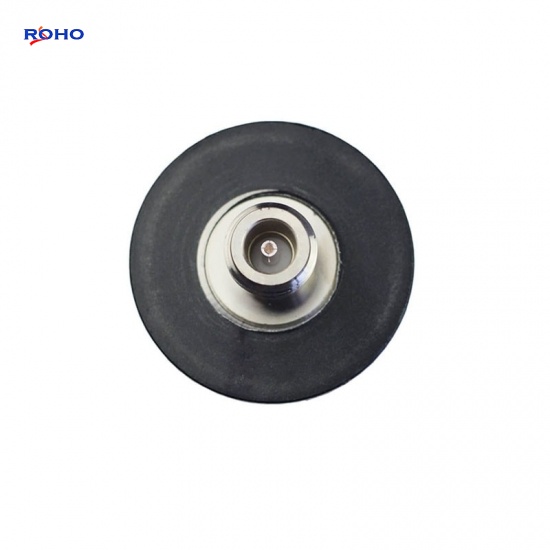

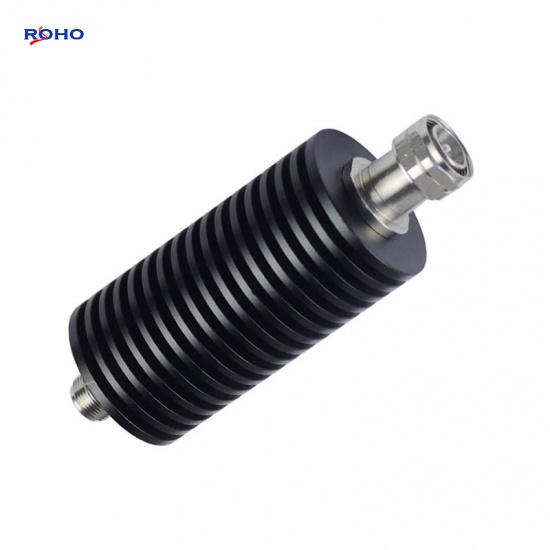

50W RF Coaxial Fixed Attenuator 4.3-10 Male to N Type Female 1-60dB DC-3GHz/4GHz

4.3-10 Attenuator Features:

  • 4.3-10 connector input, out connector can be 4.3-10 or N;
  • Maximum frequency of 18GHz;
  • A male gender in and a female gender out;
  • Attenuation values range from 1dB to 40dB.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

50W RF Coaxial Fixed Attenuator 4.3-10 Male to N Type Female 3-40dB DC-3GHz/4GHz



The RF Attenuator are manufactured to precise industry specifications and the bodies are constructed of an aluminum finned heatsink, stainless steel or nickel plated brass. ROHO's 4.3-10 Attenautor is a High Power Coaxial Attenuator from 1 to 50W, and we offer 50ohm loads terminations male and female type. This 50W 4.3-10 to N Attenuator has a 4.3-10 male gender on side 1 and a N female connector on side 2. attenuation Max value is 40dB, frequency Max is 18GHz.



Specifications

ELECTRICAL DATA
Frequency DC~3GHz/4GHz
Connector 4.3-10 Male to N Female
VSWR ≤1.2
Power 50W
Impedance 50Ω
Attenuation value 1-20dB
Attenuation 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 30, 40dB is available
1-10dB.±0.5dB,15-30dB±1dB,30-40dB±1.5dB
Temperature Range -55℃~+125℃
MATERIAL DATA
Connector body Brass,Plating Ni
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au
Housing  Aluminum,Black



Applications

  • Mobile Communication
  • Network Optimization
  • In-door distribution system
  • Satellite communication
  • Shortwave communication
  • Hopping radio
