100W Fixed Attenuator N Type Female to 7-16 DIN Male 1-50dB Avaliable

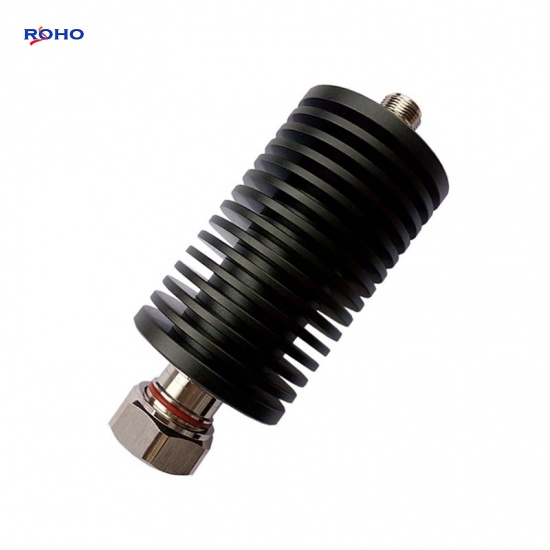

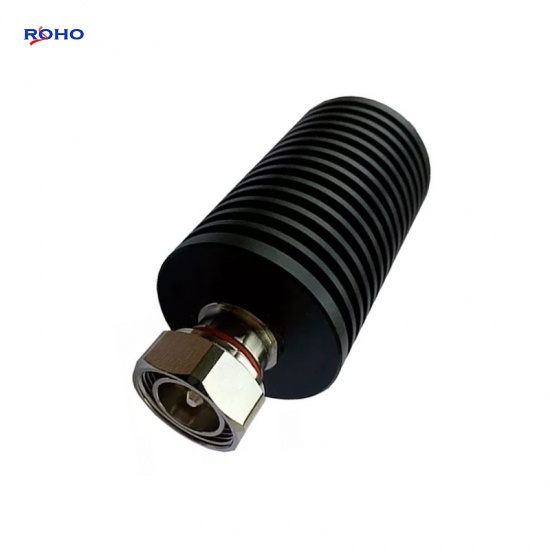

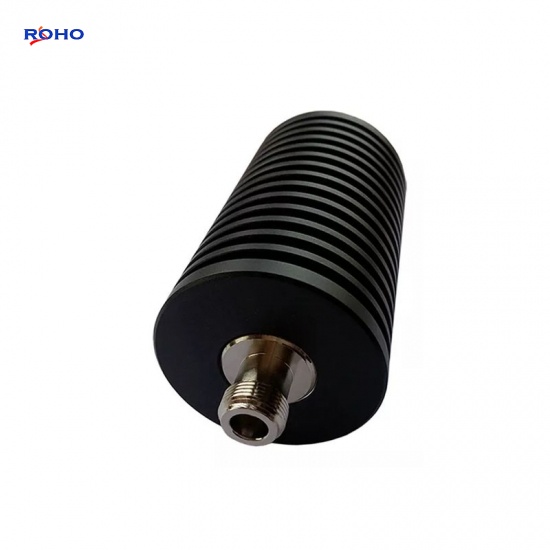

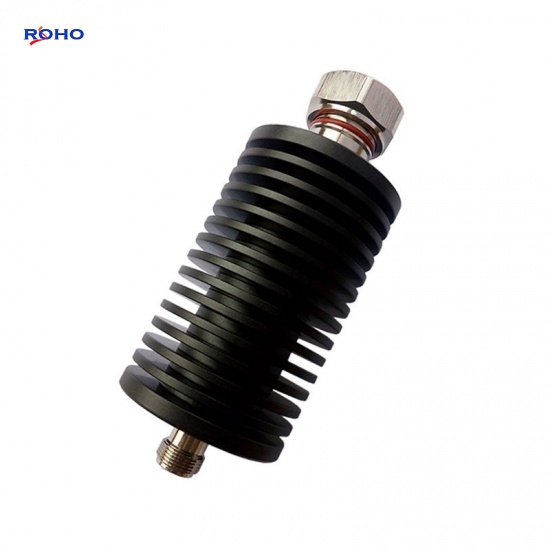

The RF Attenuator are manufactured to precise industry specifications and the bodies are constructed of an aluminum finned heatsink, stainless steel or nickel plated brass. ROHO's N Type Attenautor is a High Power Coaxial Attenuator from 1 to 100W, and we offer 50ohm loads terminations male and female type. This 100W N to 7-16 DIN Attenuator has a N female gender on side 1 and a 7-16 male connector on side 2. attenuation Max value is 50dB, frequency Max is 18GHz.
Specifications
| ELECTRICAL DATA | |
| Frequency | DC~3GHz/4GHz |
| Connector | N Female to 7-16 DIN Male |
| VSWR | ≤1.3 |
| Power | 100W |
| Impedance | 50Ω |
| Attenuation value | 1-50dB |
| Attenuation | 1, 3, 6, 10, 15, 20, 30, 40, 50dB available 1-10dB±0.8dB, 15-30dB±1dB, 40-50dB±1.5dB |
| Temperature Range | -55℃～+125℃ |
| MATERIAL DATA | |
| Connector body | Brass,Plating Ni |
| Insulator | PTFE |
| Inner Conductor | Phosphor Bronze ,Plating Au |
| Housing | Aluminum,Black |
Applications
- In-door distribution system
- Cluster communication
- Satellite communication
- Shortwave communication
- Hopping radio
- Reduce the power level of an RF signal
- Control a signal
